P 1102 (107179002) - Ryobi 18V Walk-Behind Mower, Rev 02 (2018-09) Figure A Parts Diagram

18V Walk-Behind Mower, Rev 02

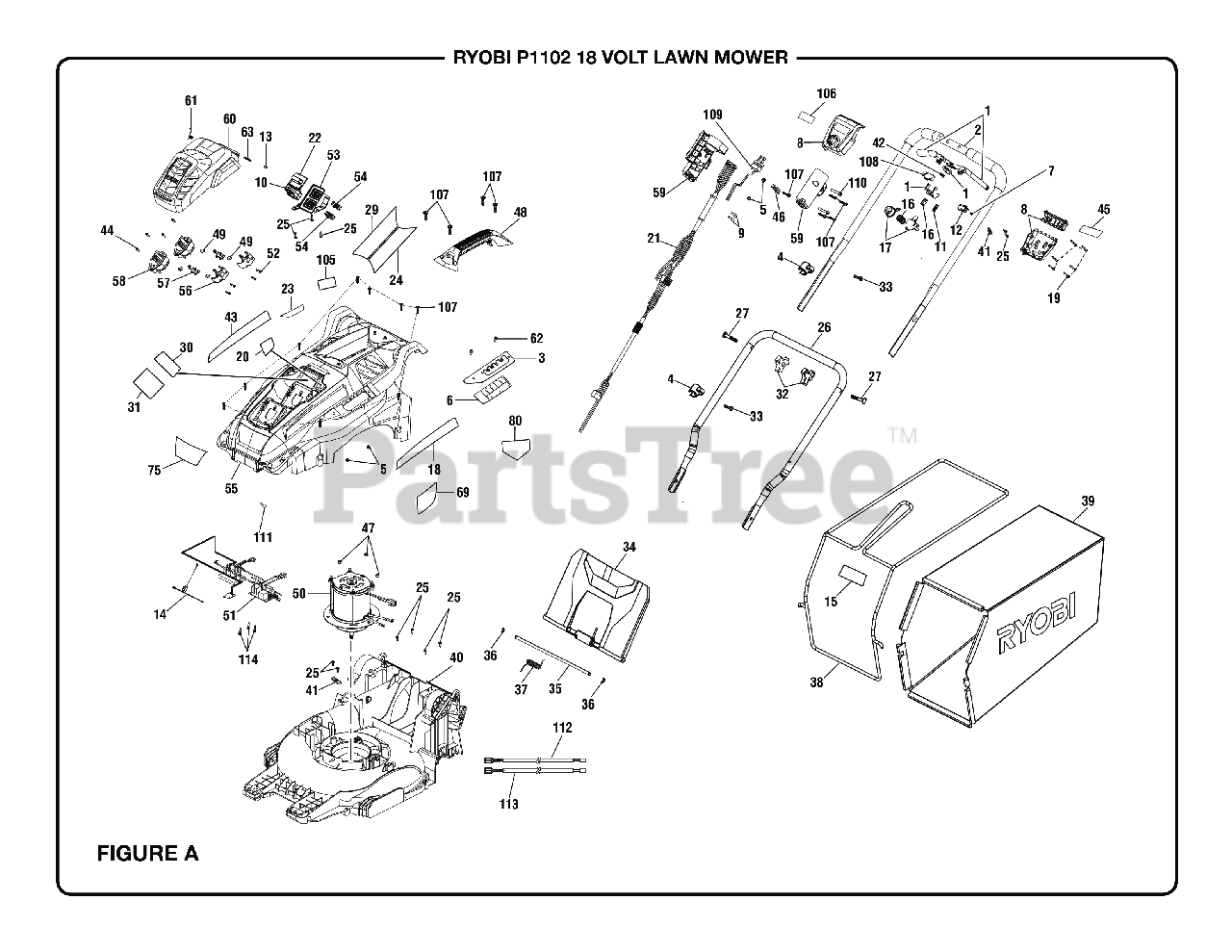

Figure A Parts Diagram

  • Title

1

Homelite 200708001

Trigger Handle Assembly

$3.49

$

Usually ships in 3-7 days

0

2

Homelite 307021006

Upper Handle Assembly

$19.99

$

Usually ships in 3-7 days

0

3

Homelite 639193005

Height Adjustment Plate

$7.49

$

Usually ships in 3-7 days

0

4

Homelite 532410001

Cord Clamp

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 678509001

Lock Nut (M5 x 0.8 mm)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 570839002

Dust Gasket

$

$

Not available

7

Homelite 661189002

Screw (M4 x 10 mm, T20 Torx Pan Hd.)

$2.49

$

In Stock, Qty 5

0

8

Homelite 200686001

Trigger Housing Assembly

$3.49

$

Usually ships in 3-7 days

0

9

Homelite 790009004

Wire Connector (Closed End)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 311280002

Start Key

$2.99

$

Usually ships in 3-7 days

0

11

Homelite 694991001

Compression Spring (Trigger)

$

$

Not available

12

Homelite 760557001

Switch

$11.99

$

Usually ships in 3-7 days

0

13

Homelite 621628001

Battery Door Axle

$2.49

$

In Stock, only 3 left!

0

14

Homelite 291562001

Lead Wire w/Terminal Block

$7.49

$

Usually ships in 3-7 days

0

15

Homelite 940705314

Starting Instructions Label

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 694136002

Handle Adjustment Spring

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 200688001

Start Button Assembly

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 940851112

Lithium Label (Left)

$

$

Not available

19

Homelite 660208104

Screw (M4-18 x 30 mm, T15 Torx Soc. Hd.)

$2.49

$

In Stock, only 2 left!

0

20

Homelite 940842012

Fuel Gauge Label

$

$

Currently unavailable

21

Homelite 291746001

Starter Cable (Long)

$

$

Not available

22

Homelite 528681002

Slide Door

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 940657190

Icon Warning Label

$

$

Not available

24

Homelite 940657189

Warning Icon Label (Right)

$

$

Not available

25

Homelite 660608002

Screw (M4 x 16 mm, T20 Torx Pan Hd.).

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 696080001

Lower Handle

$27.99

$

In Stock, only 2 left!

0

27

Homelite 662104001

Screw (M8 x 57 mm)

$1.99

$

In Stock, only 4 left!

0

29

Homelite 940657188

Warning Icon Label (Right)

$

$

Not available

30

Homelite 940851109

Start Key Label (Eng)

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 940851110

Start Key Label (FR/SP)

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 528360001

Knob (526906001)

$2.49

$

In Stock, Qty 5

0

33

Homelite 660203059

Screw (M3 x 20 mm, Pan Hd.)

$1.86

$

Usually ships in 3-7 days

0

34

Homelite 526857003

Rear Discharge Door

$7.99

$

In Stock, only 1 left!

0

35

Homelite 639200001

Rear Door Axle

$5.49

$

Usually ships in 3-7 days

0

36

Homelite 678880001

Retaining Ring (E)

$2.49

$

In Stock, only 2 left!

0

37

Homelite 679076001

Torsion Spring (Rear Door)

$2.49

$

In Stock, only 1 left!

0

38

Homelite 639183003

Bag Frame

$

$

Not available

39

Homelite 970699001

Bag
(Superseded to 970699003)

$44.99

$

In Stock, only 1 left!

0

40

Homelite 526854009

Deck

$128.99

$

Usually ships in 3-7 days

0

41

Homelite 513211001

Wire Press Plate

$2.49

$

Usually ships in 3-7 days

0

42

Homelite 694990001

Compression Spring (Trigger Handle)

$

$

Not available

43

Homelite 940851113

Lithium Label (Right)

$

$

Not available

44

Homelite T662028001

Screw (M4 x 16 mm, T15 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

45

Homelite 940686159

Starting Instructions Label

$2.49

$

Usually ships in 3-7 days

0

46

Homelite 513211002

Cord Clip

$

$

Currently unavailable

47

Homelite 680196006

Lock Nut (M6)

$2.49

$

Usually ships in 3-7 days

0

48

Homelite 526874001

Handle

$8.49

$

Usually ships in 3-7 days

0

49

Homelite 563768001

Rubber Cushion

$

$

Not available

50

Homelite 742166003

Motor

$795.99

$

Usually ships in 3-7 days

0

51

Homelite 280347002

Start Circuit Board

$368.99

$

Usually ships in 3-7 days

0

52

Homelite 660203068

Screw (M4 x 16 mm, T20 Torx Socket Pan Hd.)

$

$

Not available

53

Homelite 200685001

Key Holder Assembly

$1.49

$

Usually ships in 3-7 days

0

54

Homelite 636440001

Female Terminal

$2.49

$

Usually ships in 3-7 days

0

55

Homelite 526873002

Deck Cover

$

$

Not available

56

Homelite 526979001

Press Cover (Battery Connect)

$2.49

$

Usually ships in 3-7 days

0

57

Homelite 300001067

Plate (Battery Connect)

$

$

Currently unavailable

58

Homelite 526978001

Base (Battery Connect)

$2.49

$

Usually ships in 3-7 days

0

59

Homelite 200707001

AC Plug Housing Assembly

$1.49

$

Usually ships in 3-7 days

0

60

Homelite 526872001

Battery Cover

$

$

Not available

61

Homelite 694051001

Torsion Spring (Battery Door)

$2.49

$

Usually ships in 3-7 days

0

62

Homelite 660713001

SCREW (M5 x 16 mm SOC. WASHER HD. CAP)

$2.49

$

Usually ships in 3-7 days

0

63

Homelite 679073001

Compression Spring

$2.49

$

In Stock, only 1 left!

0

69

Homelite 940851111

Height Adjust Label

$

$

Not available

75

Homelite 940705269

Ryobi Logo Label (Handle)

$2.49

$

Usually ships in 3-7 days

0

80

Homelite 941641001

Danger Label (No Hands/Feet)

$2.49

$

Usually ships in 3-7 days

0

105

Homelite 941588111

Data Label

$

$

Not available

106

Homelite 940705179

Ryobi Logo Label (Handle)

$2.49

$

Usually ships in 3-7 days

0

107

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd. S.T.)

$2.49

$

In Stock, Qty 13

0

108

Homelite 760034012

Micro Switch

$6.99

$

Usually ships in 3-7 days

0

109

Homelite 291441001

Plug Wire

$4.99

$

Usually ships in 3-7 days

0

110

Homelite 661863001

Screw (M5 x 30, T20 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

111

Homelite 790021001

Wire Connector (Closed End)

$2.49

$

Usually ships in 3-7 days

0

112

Homelite 291420007

Lead Wire (Red)

$

$

Currently unavailable

113

Homelite 291420008

Lead Wire (Brown)

$

$

Currently unavailable

114

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd., Pan Hd)

$2.49

$

In Stock, only 3 left!

0
