P 1108 VNM (108625001) - Ryobi 13" 18V Walk-Behind Mower, Rev 02 (2021-01) General Assembly 2 Parts Diagram

13" 18V Walk-Behind Mower, Rev 02

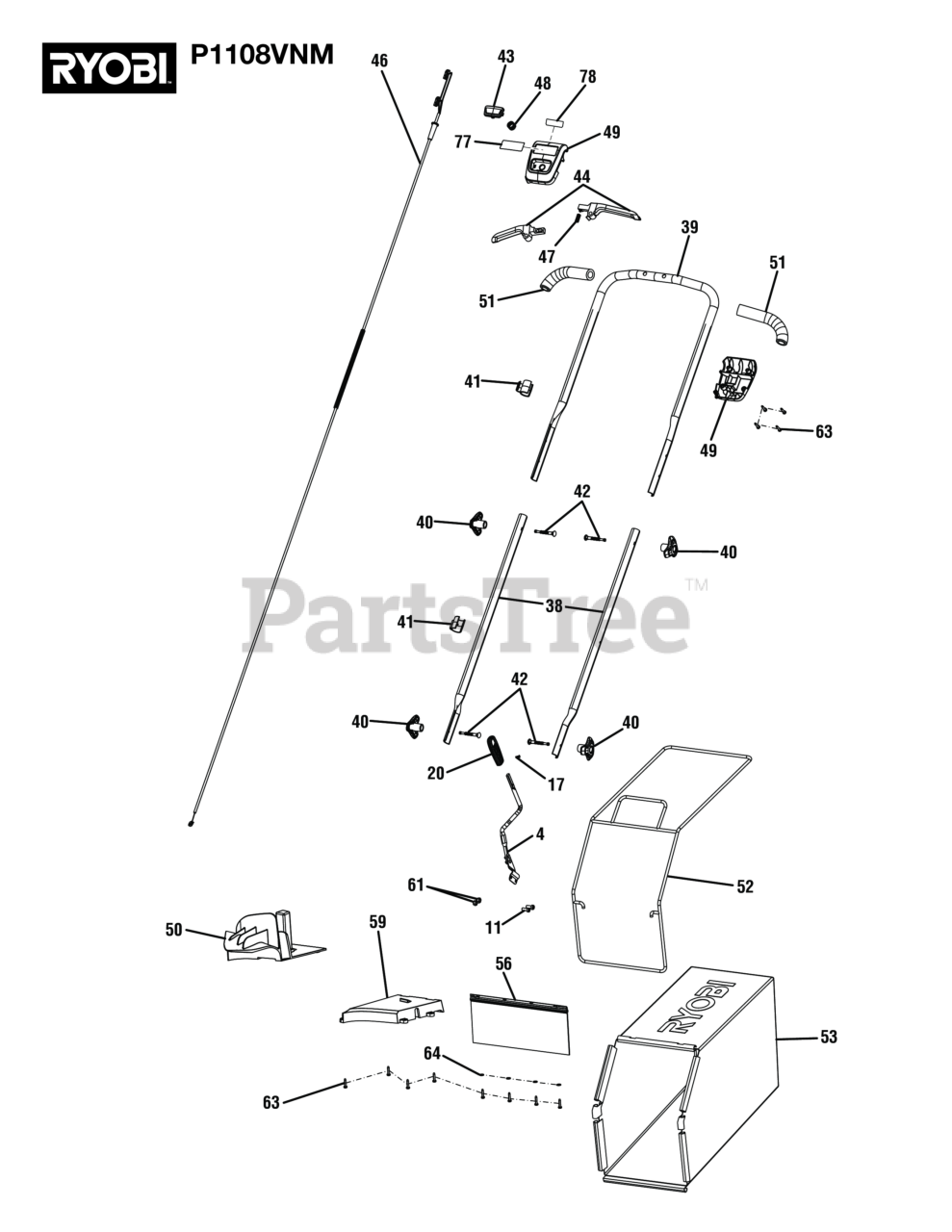

General Assembly 2 Parts Diagram

  • Title

4

Homelite 698853001

Height Adjustment Rod

$12.99

$

Usually ships in 3-7 days

0

11

Homelite 661431003

Screw (M6 x 14 mm, Hex Soc. Hd.)

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 664021001

Screw (M3 x 9 mm, Flat Hd.)

$

$

Not available

20

Homelite 542077003

Height Adjustment Knob

$2.49

$

Usually ships in 3-7 days

0

38

Homelite 698848001

Lower Tube

$13.99

$

In Stock, only 3 left!

0

39

Homelite 698847001

Upper Handle Tube

$34.99

$

Usually ships in 3-7 days

0

40

Homelite 541821002

Wing Nut with Insert (M6)

$2.49

$

In Stock, Qty 13

0

41

Homelite 541431001

Cable Clip

$2.49

$

Usually ships in 3-7 days

0

42

Homelite 662847001

Shoulder Screw (M6 x 50 mm)

$2.49

$

Usually ships in 3-7 days

0

43

Homelite 541873001

Safety Button

$2.49

$

In Stock, only 4 left!

0

44

Homelite 317265001

Trigger Assembly

$6.99

$

Usually ships in 3-7 days

0

46

Homelite 292236001

Inner Wire and Plug Assembly

$23.99

$

In Stock, only 2 left!

0

47

Homelite 694991001

Compression Spring (Trigger)

$

$

Not available

48

Homelite 699177001

Spring

$2.49

$

Usually ships in 3-7 days

0

49

Homelite 317264001

Switch Box (Inc. Key Nos. 77-78)

Note: (Inc. Key Nos. 77-78)

$10.99

$

Usually ships in 3-7 days

0

50

Homelite 541526001

Mulching Plug

$6.99

$

Usually ships in 3-7 days

0

51

Homelite 565890001

Foam Tube

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 698852001

Grass Bag Frame

$25.99

$

Usually ships in 3-7 days

0

53

Homelite 903893001

Grass Bag

$

$

Not available

56

Homelite 535385001

Trailing Sheet

$18.99

$

In Stock, only 2 left!

0

59

Homelite 541525001

Discharge Baffle

$5.99

$

Usually ships in 3-7 days

0

61

Homelite 678460002

Lock Nut (M6 x 6 mm)

$2.49

$

Usually ships in 3-7 days

0

63

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$2.49

$

In Stock, Qty 5

0

64

Homelite 636062001

Washer (ID4.5 x OD10 x 1t)

$2.49

$

Usually ships in 3-7 days

0

77

Homelite 940705492

Logo Label

$2.49

$

Usually ships in 3-7 days

0

78

Homelite 940851634

Instruction/Logo Label

$2.49

$

Usually ships in 3-7 days

0

Homelite 998000330

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
