P 1109 VNM (108626001) - Ryobi 16" 18V Walk-Behind Mower, Rev 02 (2021-01) General Assembly Parts Diagram

16" 18V Walk-Behind Mower, Rev 02

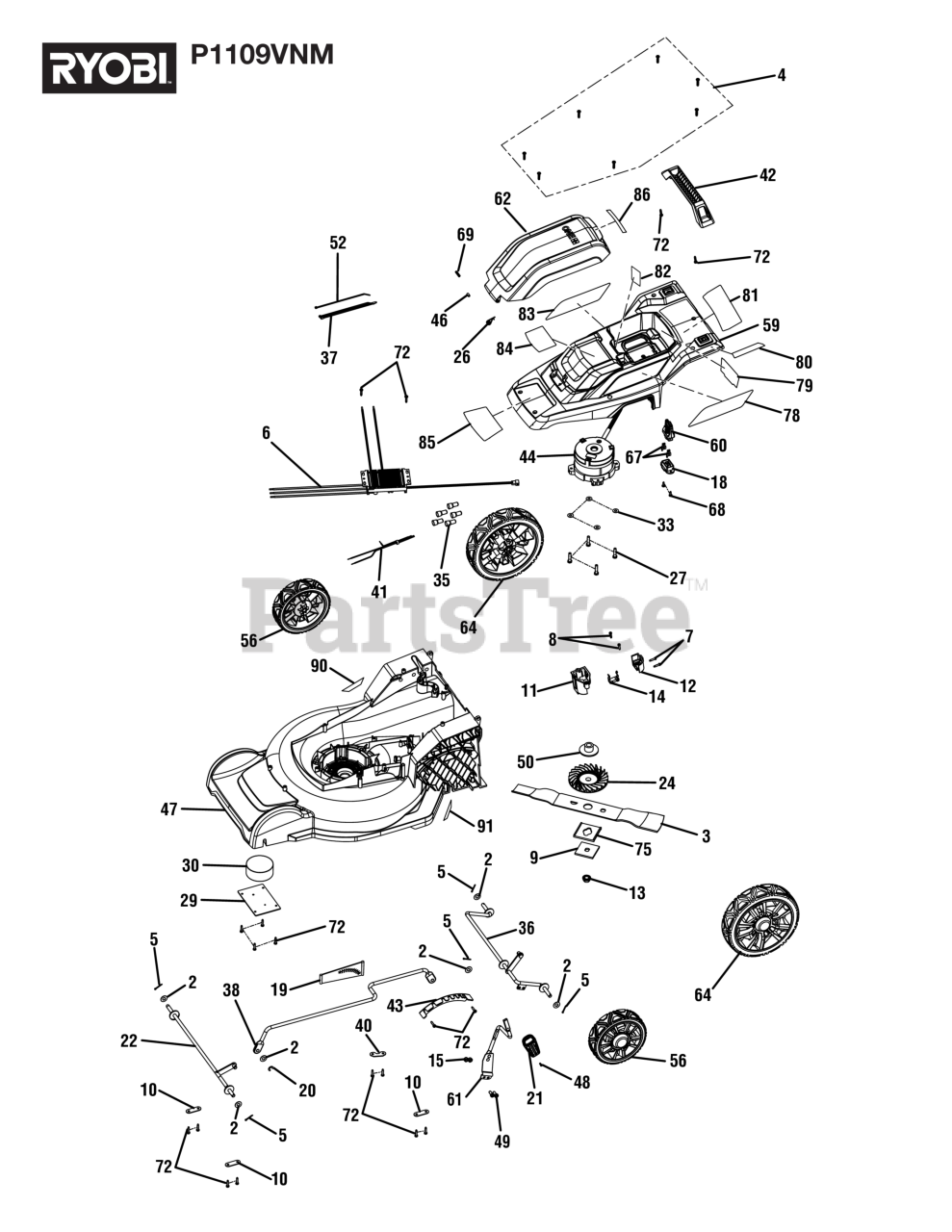

General Assembly Parts Diagram

  • Title

2

Homelite 639013001

Washer (ID8.4 x OD18 x 1t)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 682489001

16 in. Blade

$

$

Not available

4

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd. S.T.)

$1.49

$

In Stock, Qty 6

0

5

Homelite 678279004

Cotter PinÏ? (2.5)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 281145001

Circuit Board Assembly

$131.99

$

Usually ships in 3-7 days

0

7

Homelite 660203068

Screw (M4 x 16 mm, T20 Torx Socket Pan Hd.)

$

$

Not available

8

Homelite 662028001

Screw (M4 x 16 mm, T20 Torx Socket Pan Hd.)

$

$

Currently unavailable

9

Homelite 639118001

Metal Blade Retainer

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 639116003

Axle Pressure Plate

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 526978001

Base (Battery Connect)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 526979001

Press Cover (Battery Connect)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 679075001

Blade Nut (M10 x 1.25, Hex Flange Hd.)

$1.49

$

In Stock, only 2 left!

0

14

Homelite 300001081

Battery Contact Holder Assembly

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 678460002

Lock Nut (M6 x 6 mm)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 526912001

Key Holder
(Superseded to 120722005)

$11.99

$

Usually ships in 3-7 days

0

19

Homelite 565765001

Dust Proof Plate

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 678880001

Retaining Ring (E)

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 542077001

Height Adjustment Knob

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 622744001

Front Wheel Axle

$10.99

$

Usually ships in 3-7 days

0

24

Homelite 535080002

Fan Blade Adapter

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 698356001

Torsion Spring

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 660722002

Bolt (M6 x 26 mm, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 659533001

Metal Plate

$3.49

$

Usually ships in 3-7 days

0

30

Homelite 622749001

Weight Plate

$12.99

$

Usually ships in 3-7 days

0

33

Homelite 638557001

Washer (ID6.2 x OD15 x 0.08t)

$1.49

$

Usually ships in 3-7 days

0

35

Homelite 870290001

Wire Connector

$

$

Currently unavailable

36

Homelite 622745001

Rear Wheel Axle

$7.49

$

Usually ships in 3-7 days

0

37

Homelite 790055001

NYLON CABLE TIE

$

$

Not available

38

Homelite 622746001

Linkage

$9.49

$

Usually ships in 3-7 days

0

40

Homelite 659586001

Axle Press Plate

$1.49

$

Usually ships in 3-7 days

0

41

Homelite 292180005

Inner Wire

$2.99

$

Usually ships in 3-7 days

0

42

Homelite 541540001

Handle

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 659394001

Plate

$2.99

$

Usually ships in 3-7 days

0

44

Homelite 742635003

Motor

$181.99

$

Usually ships in 3-7 days

0

46

Homelite 621628001

Battery Door Axle

$1.49

$

In Stock, only 4 left!

0

47

Homelite 205496001

Deck Assembly

Note: (Inc. Key Nos. 90-91)

$

$

Currently unavailable

48

Homelite 664021001

Screw (M3 x 9 mm, Flat Hd.)

$

$

Not available

49

Homelite 661431003

Screw (M6 x 14 mm, Hex Soc. Hd.)

$1.49

$

Usually ships in 3-7 days

0

50

Homelite 639120001

Motor Shaft Bushing

$3.49

$

Usually ships in 3-7 days

0

52

Homelite 790002001

Cable Ties

$1.49

$

Usually ships in 3-7 days

0

56

Homelite 316712001

6 in. Wheel Assembly

$6.49

$

Usually ships in 3-7 days

0

59

Homelite 317267001

Top Cover Assembly (Inc. Key Nos. 78-85)

Note: (Inc. Key Nos. 78-85)

$26.99

$

Usually ships in 3-7 days

0

60

Homelite 311280001

Start Key

$4.49

$

Usually ships in 3-7 days

0

61

Homelite 622748001

Height Adjustment Handle

$5.49

$

Usually ships in 3-7 days

0

62

Homelite 317266001

Battery Cover (Inc. Key No. 79)

Note: (Inc. Key No. 86)

$8.49

$

Usually ships in 3-7 days

0

64

Homelite 316714001

8 in. Wheel Assembly

$11.99

$

Usually ships in 3-7 days

0

67

Homelite 639178001

Female Terminal
(Superseded to 120722005)

$11.99

$

Usually ships in 3-7 days

0

68

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$1.49

$

In Stock, only 2 left!

0

69

Homelite 679073001

Compression Spring

$1.49

$

In Stock, only 4 left!

0

72

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$1.49

$

In Stock, only 4 left!

0

75

Homelite 526920002

Spacer

$1.49

$

Usually ships in 3-7 days

0

78

Homelite 940851641

HP Logo Label (Left)

$1.49

$

Usually ships in 3-7 days

0

79

Homelite 940851642

Start Key Warning Label

$1.49

$

Usually ships in 3-7 days

0

80

Homelite 940851645

Deck Height Adjustment Label

$1.49

$

Usually ships in 3-7 days

0

81

Homelite 941016122

Danger (ENG/FR)/Warning Label (Trilingual)

$1.49

$

Usually ships in 3-7 days

0

82

Homelite 941588760

Data Label

$1.49

$

Usually ships in 3-7 days

0

83

Homelite 940851640

HP Logo Label (Right)

$1.49

$

Usually ships in 3-7 days

0

84

Homelite 941016124

Warning Label (SP)

$1.49

$

Usually ships in 3-7 days

0

85

Homelite 940851644

Front Logo Label

$1.49

$

Usually ships in 3-7 days

0

86

Homelite 941016118

Icon Label

$1.49

$

Usually ships in 3-7 days

0

90

Homelite 940779343

16 in. Callout Label (Right)

$

$

Currently unavailable

91

Homelite 940779344

16 in. Callout Label (Left)

$

$

Currently unavailable

Homelite 998000291

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
