P 12597 (960110239-10) - Husqvarna Lawn Tractor (2011-08) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

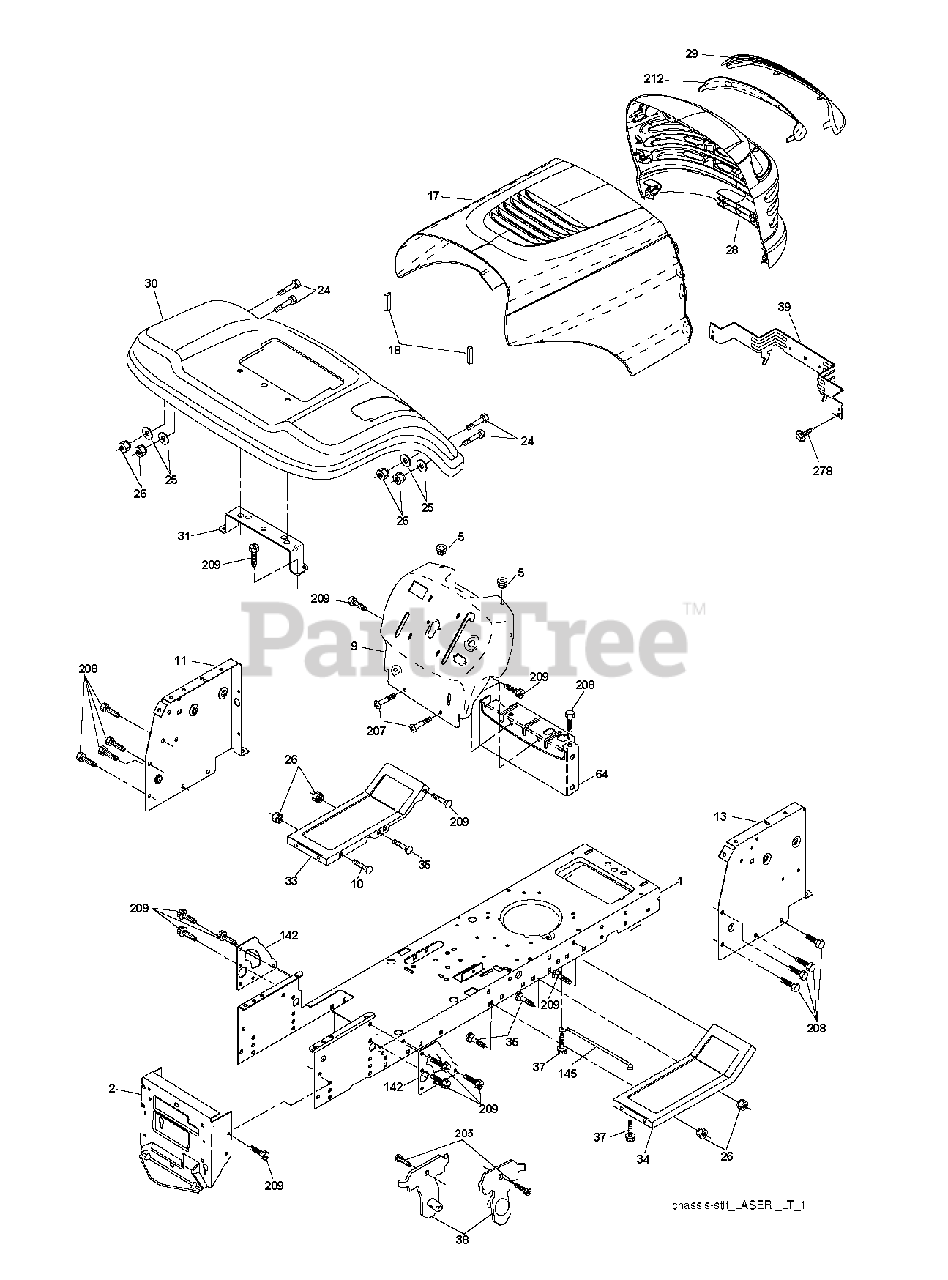

CHASSIS ENCLOSURES Parts Diagram

  • Title

1

Electrolux/AYP 532174619

CHASSIS STAMPING
(Superseded to 579841401)

$241.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532176554

DRAWBAR, 12GA

$40.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, Qty 5

0

9

Electrolux/AYP 532193510

DASH
(Superseded to 584378801)

$60.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 872140608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532174996

PANEL.DASH.LH.LTX
(Superseded to 174996)

$11.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532172105

PANEL

$21.99

$

In Stock, only 1 left!

0

17

Electrolux/AYP 532182716

GRILLE.LASER

$103.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532184921

BUMPER.HOOD.LARGE.1.75"

$7.49

$

In Stock, Qty 12

0

24

Electrolux/AYP 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 819131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532182717

LENS LASER.LT.CLEARBAR

$120.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532182718

LENS.LASER LT.CLEAR.BAR
(Superseded to 584463701)

$

$

Not available

30

Electrolux/AYP 532194198

NO LONGER AVAILABLE

$

$

Not available

31

Electrolux/AYP 532136619

BRACKET FENDER
(Superseded to 136619)

$

$

Not available

33

Electrolux/AYP 532182507

FOOTREST.LH

$27.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 532182508

FOOTREST.RH

$27.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 532175710

BRACKET.ASM.PIVOT.MOWER.REAR

$9.99

$

In Stock, only 2 left!

0

39

Electrolux/AYP 532407807

BRACKET PIVOT

$26.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 532154798

DASH LOWER
(Superseded to 154798)

$31.99

$

Usually ships in 3-10 days

0

142

Electrolux/AYP 532175702

PLATE REINFORCEMENT

$7.49

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 532409167

ROD.PIVOT.HOOD

$13.99

$

Usually ships in 3-10 days

0

205

Electrolux/AYP 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

207

Electrolux/AYP 817670508

SCREW, 5/16-18 X 1/2

$6.49

$

In Stock, only 2 left!

0

208

Electrolux/AYP 817670608

SCREW 3/8-16X1/2

$6.49

$

In Stock, only 2 left!

0

209

Electrolux/AYP 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

212

Electrolux/AYP 532175143

NO LONGER AVAILABLE

$

$

Not available

278

Electrolux/AYP 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 20+

0

--

Electrolux/AYP 532005479

PLUG BUTTON T

$4.99

$

Usually ships in 3-10 days

0
