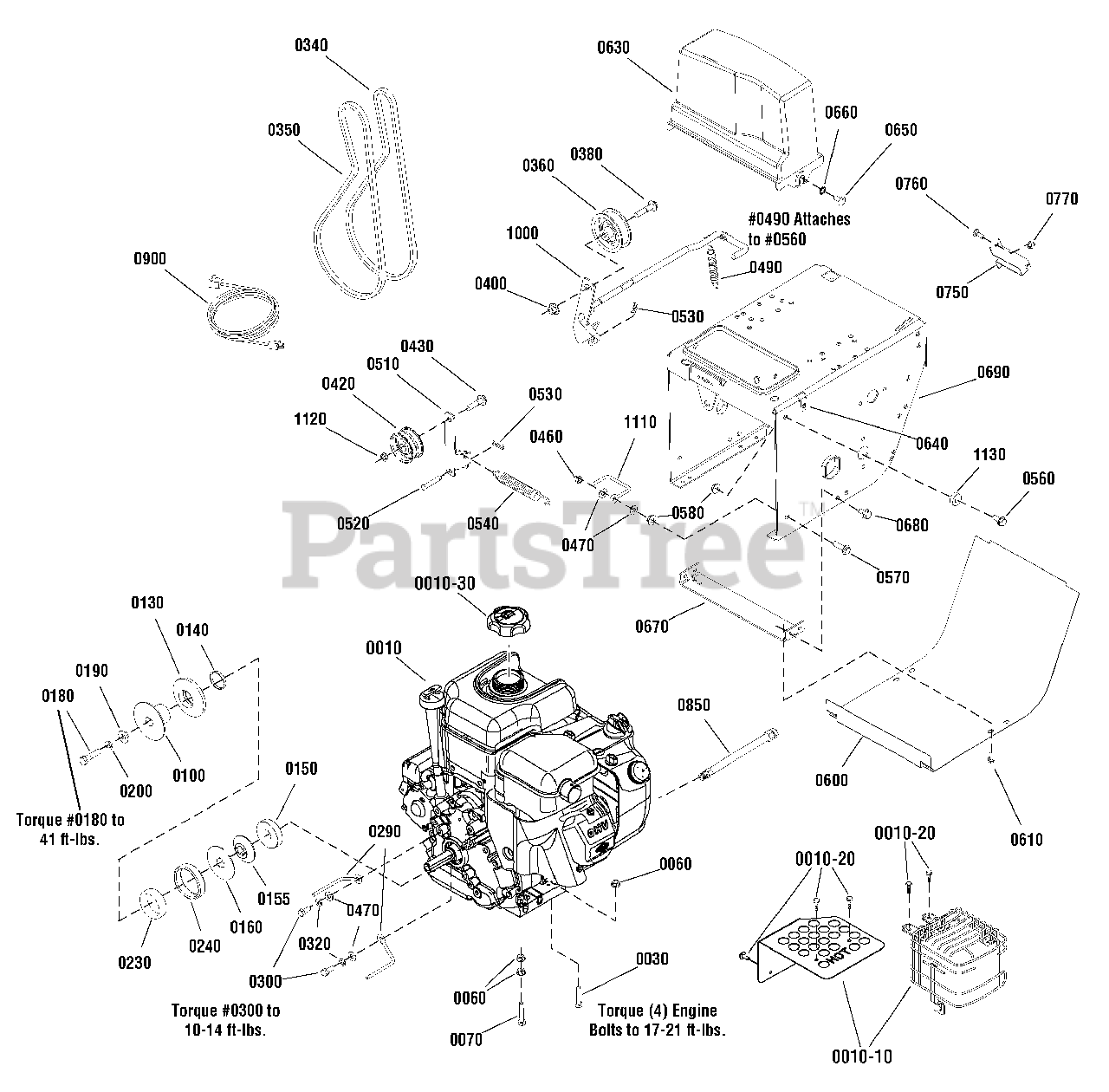

P 1728 E (1695825) - Simplicity 28" Snow Thrower, 16.5hp Engine & Frame Group Parts Diagram

28" Snow Thrower, 16.5hp

Engine & Frame Group Parts Diagram

  • Title

0010

Simplicity 21M314-0130-E1

* ENGINE, 14.5TP Briggs & Stratton

Note: (Domestic) (Engine Model: 21M314-0119-E1)

$

$

Not available

0010

Simplicity 21M314-0119-E1

* ENGINE, 16.5TP Briggs & Stratton

Note: (Domestic) (Engine Model: 21M314-0119-E1)

$

$

Not available

0010

Simplicity 21M314-0122-E1

* ENGINE, 16.5TP Briggs & Stratton

Note: (CE/Export) (Engine Model: 21M314-0122-E1)

$

$

Not available

0010-10

Simplicity 797095

GUARD, Muffler, Plate

Note: (Domestic)

$45.99

$

Usually ships in 2-12 days

0

0010-10

Simplicity 796384

GUARD, Muffler, Cage

Note: (Export)

$83.99

$

Usually ships in 2-12 days

0

0010-20

Simplicity 699234

CAPSCREW, Hex Washer Head, Muffler Guard

$3.99

$

In Stock, only 4 left!

0

0010-30

Simplicity 795027

CAP, Fuel

$10.99

$

In Stock, only 3 left!

0

0030

Simplicity 1921332

CAPSCREW, Hex Head, 5/16-18 x 1-1/2
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

0060

Simplicity 2831277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0070

Simplicity 2822127

CAPSCREW, Hex Head, 5/16-18 x 1-3/4, G5
(Superseded to 704288)

$4.99

$

In Stock, only 2 left!

0

0100

Simplicity 1726864

PULLEY, Drive
(Superseded to 1726864SM)

$

$

Not available

0130

Simplicity 1726863

PULLEY, Engine
(Superseded to 1726863SM)

$46.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1685366

WICK, Oil
(Superseded to 1685366SM)

$13.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1726868

PULLEY HALF, Inside
(Superseded to 1726868SM)

$11.99

$

Usually ships in 2-12 days

0

0155

Simplicity 1726869

PULLEY, Engine
(Superseded to 1726869SM)

$13.99

$

In Stock, only 1 left!

0

0160

Simplicity 1701818

WASHER, Thrust
(Superseded to 1701818SM)

$6.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1922128

CAPSCREW, Hex Head, 3/8-24 x 1-1/2
(Superseded to 1922128SM)

$4.49

$

In Stock, only 1 left!

0

0190

Simplicity 1922755

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 7

0

0200

Simplicity 1916965

LOCKWASHER, Spring
(Superseded to 703454)

$3.49

$

In Stock, Qty 10

0

0230

Simplicity 1701849

SPRING, Compression
(Superseded to 1701849SM)

$14.99

$

Usually ships in 2-12 days

0

0240

Simplicity 1702425

SPRING, Compression
(Superseded to 1702425SM)

$12.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1731178

STOP, Belt
(Superseded to 1731178SM)

$10.99

$

In Stock, only 2 left!

0

0300

Simplicity 1921515

CAPSCREW, Hex Head, 5/16-24 x 3/4
(Superseded to 1921515SM)

$3.99

$

Usually ships in 2-12 days

0

0320

Simplicity 1917356

LOCKWASHER, Spring
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0340

Simplicity 1732249

V-BELT, Auger, HA, 41.78
(Superseded to 1732249SM)

$29.99

$

In Stock, only 1 left!

0

0350

Simplicity 1672732

V-BELT, Drive, 3L, 31.0
(Superseded to 1672732SM)

$20.99

$

In Stock, Qty 5

0

0360

Simplicity 1726348

PULLEY, Idler
(Superseded to 1726348SM)

$24.99

$

In Stock, only 1 left!

0

0380

Simplicity 2860709

CAPSCREW, Hex Flange, Whiz Lock, 3/8-16 x 1-3/4
(Superseded to 703812)

$4.49

$

Usually ships in 2-12 days

0

0400

Simplicity 1928352

NUT, Hex Flange, Whiz Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 9

0

0420

Simplicity 1668477

PULLEY, Idler
(Superseded to 1668477SM)

$23.99

$

In Stock, only 4 left!

0

0430

Simplicity 1960647

CAPSCREW, Hex Head, 3/8-16 x 1-1/2
(Superseded to 1960647SM)

$7.49

$

Usually ships in 2-12 days

0

0460

Simplicity 7091575

NUT, Center Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

0470

Simplicity 1919326

WASHER, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 12

0

0490

Simplicity 2159106

SPRING, Extension
(Superseded to 703144)

$5.99

$

In Stock, Qty 10

0

0510

Simplicity 1703046A

ARM, Idler
(Superseded to 1703046BZYP)

$12.99

$

Usually ships in 2-12 days

0

0520

Simplicity 1665994

PIN, Flat Head Drilled, 1-3/4
(Superseded to 703145)

$3.99

$

In Stock, only 4 left!

0

0530

Simplicity 1722460

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, Qty 8

0

0540

Simplicity 1727149

SPRING, Extension
(Superseded to 703146)

$

$

Not available

0560

Simplicity 1930591

CAPSCREW, Hex Flange, Whiz Lock, 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 18

0

0570

Simplicity 1930595

CAPSCREW, Hex Flange, Whiz Lock, 5/16-18 x 1-1/4
(Superseded to 1930595SM)

$3.99

$

In Stock, Qty 8

0

0580

Simplicity 1927557

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703330)

$4.99

$

In Stock, Qty 9

0

0600

Simplicity 1726870C

COVER, Bottom
(Superseded to 1726870CSM)

$80.99

$

Usually ships in 2-12 days

0

0610

Simplicity 1925003

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0630

Simplicity 1725287

COVER, Belt
(Superseded to 706414)

$

$

Not available

0640

Simplicity 1935255

NUT, Speed, 5/16-18
(Superseded to 1935255SM)

$3.49

$

In Stock, Qty 7

0

0650

Simplicity 1918249

SCREW, Truss Head, Slotted, 5/16-18 x 3/4
(Superseded to 1918249SM)

$4.99

$

Usually ships in 2-12 days

0

0660

Simplicity 2820426

WASHER, Lock, External Tooth, 5/16
(Superseded to 2820426SM)

$4.49

$

In Stock, only 1 left!

0

0670

Simplicity 1727004A

SUPPORT, Tie Bar
(Superseded to 1727004BMYP)

$14.99

$

Usually ships in 2-12 days

0

0680

Simplicity 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0690

Simplicity 1726568C

FRAME
(Superseded to 1726568CSM)

$165.99

$

Usually ships in 2-12 days

0

0750

Simplicity 1720404A

SUPPORT, Clutch Cable
(Superseded to 1720404BMYP)

$12.99

$

Usually ships in 2-12 days

0

0760

Snapper 1931317

BOLT, Carriage,1/4-20 x 3/4

$3.99

$

In Stock, Qty 5

0

0770

Simplicity 1960685

NUT, Hex Keps, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, only 3 left!

0

0850

Simplicity 798980

OIL DRAIN ASSEMBLY

$

$

Not available

0900

Simplicity 724865

CORD, Electrical
(Superseded to 6219MA)

Note: (Domestic Only)

$40.99

$

In Stock, only 3 left!

0

1000

Simplicity 1729646A

CLUTCH ROD / BRAKE ARM
(Superseded to 1729646BMYP)

$117.99

$

Usually ships in 2-12 days

0

1110

Simplicity 1702969

STOP, Belt
(Superseded to 1702969SM)

$6.49

$

In Stock, only 1 left!

0

1120

Simplicity 1928731

NUT, Hex, Toplock Jam, 3/8-16
(Superseded to 1928731SM)

$4.99

$

Usually ships in 2-12 days

0

1130

Simplicity 1666697

SPACER
(Superseded to 1666697SM)

$6.49

$

In Stock, only 2 left!

0
