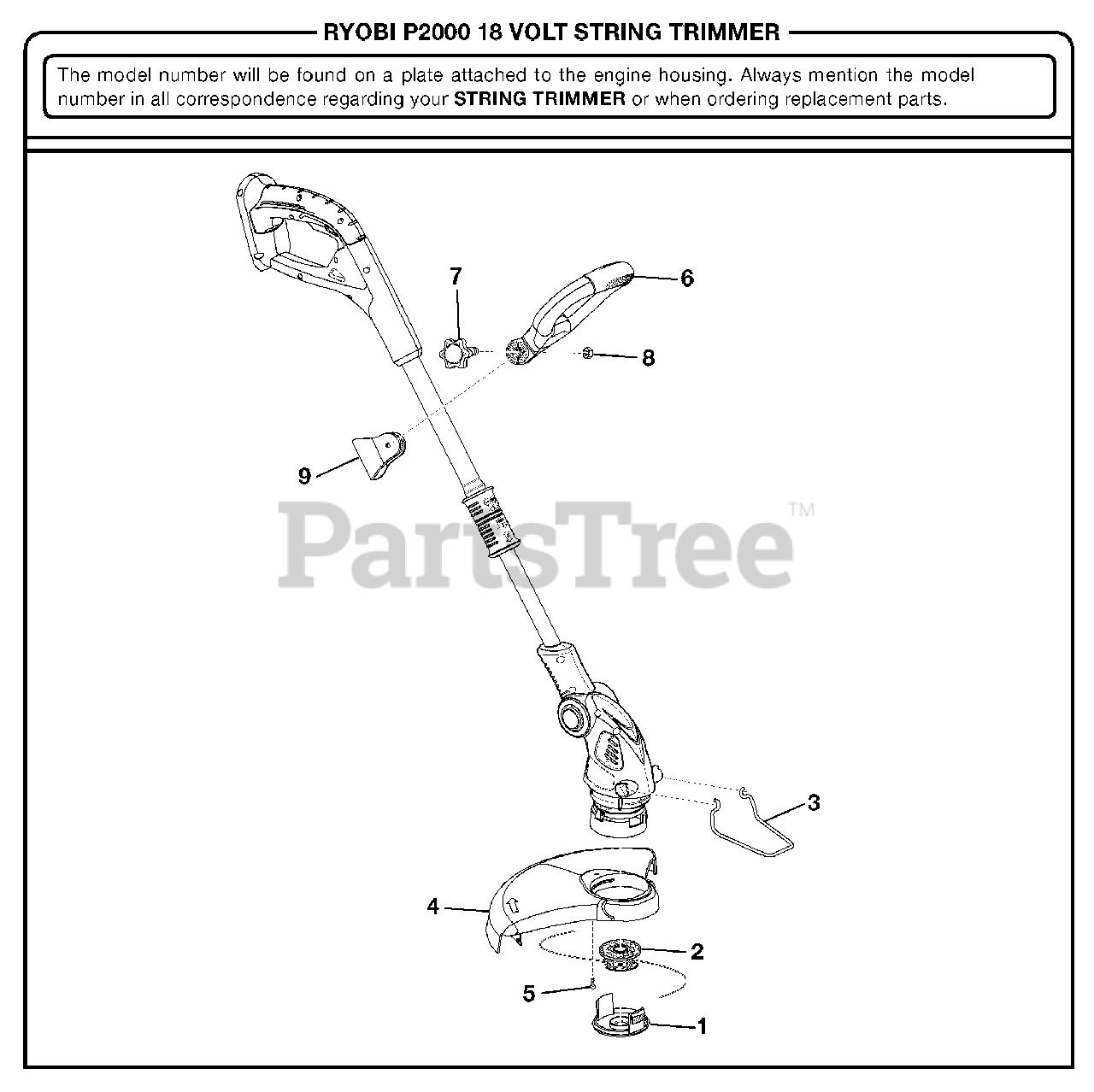

P 2000 - Ryobi 18V String Trimmer General Assembly Parts Diagram

18V String Trimmer

General Assembly Parts Diagram

  • Title

1

Homelite 341156AG

Spool Cap

$

$

Not available

2

Homelite 3110382G

Spool with Line
(Superseded to 3110382AG)

$

$

Not available

3

Homelite 3330182G

Edger Guide

$

$

Not available

4

Homelite 31105181G

Guard with Cutter

$

$

Not available

5

Homelite 31106181G

Screw (M4 x 10 mm)

Note: Purchase locally

$

$

Not available

6

Homelite 3110182AG

Front Handle

$

$

Not available

7

Homelite 3410705AG

Knob Screw (M6)

$

$

Not available

8

Homelite 3290205G

Hex Nut (M6)

Note: Purchase locally

$1.49

$

In Stock, only 3 left!

0

9

Homelite 31104181G

Clamp

$1.99

$

In Stock, only 1 left!

0

Homelite 987000180

Operator's Manual

$

$

Not available
