P 20014 VNM (108655001) - Ryobi 18V String Trimmer/Edger, Rev 04 (2022-02) General Assembly Parts Diagram

18V String Trimmer/Edger, Rev 04

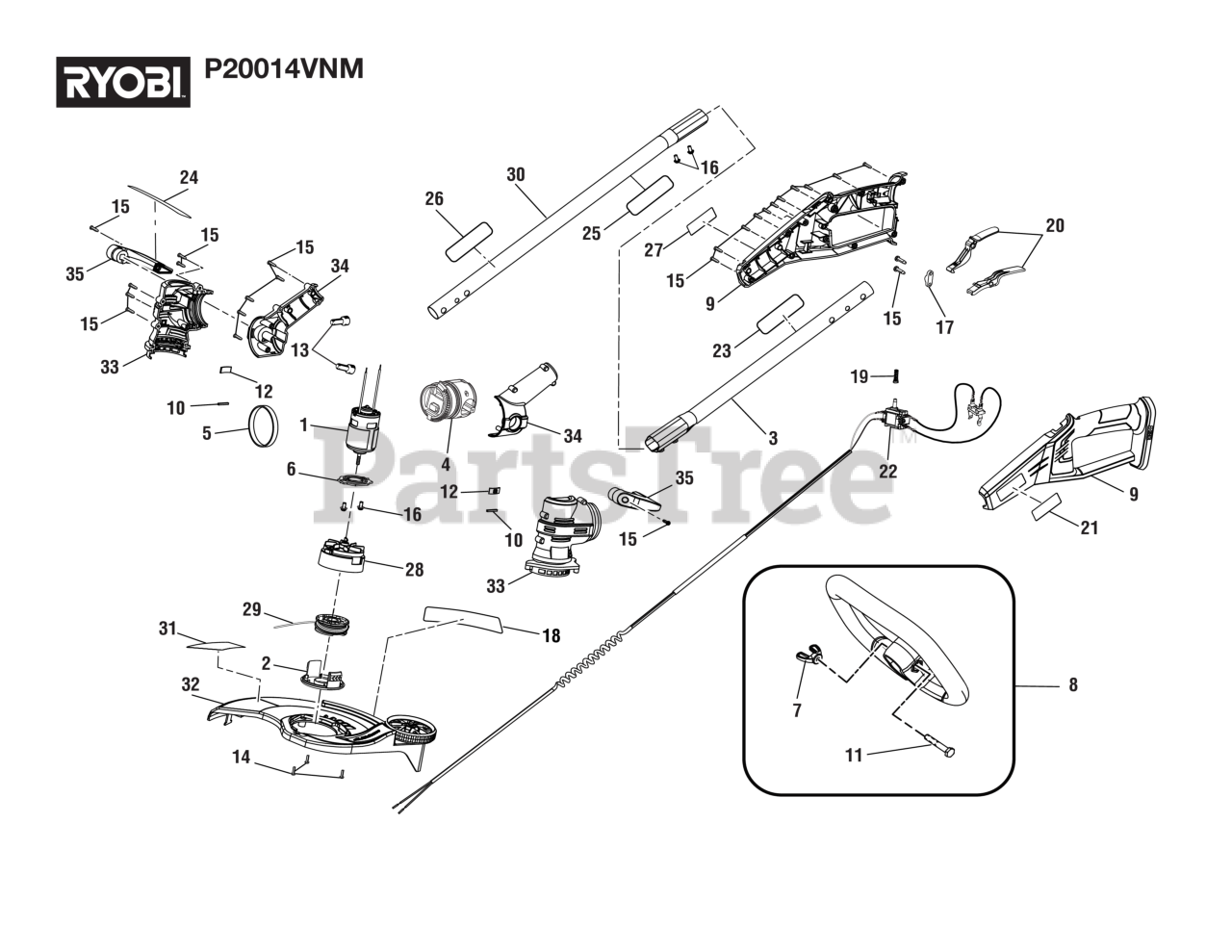

General Assembly Parts Diagram

  • Title

1

Homelite 742199001

Motor

$108.99

$

Usually ships in 3-7 days

0

2

Spool Cap

Note: (Item No. AC14HCA) | Standard Hardware Item - May Be Purchased Locally at The Home Depot

$

$

Not available

3

Homelite 316993001

Upper Tube and Wire Assembly

$18.99

$

Usually ships in 3-7 days

0

4

Homelite 351109001

Pivot Assembly

$13.99

$

Usually ships in 3-7 days

0

5

Homelite 522923001

Glamour Ring

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 522926001

Motor Mounting Plate

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 518949001

Wing Nut (1/4-20, Plastic)
(Superseded to PS02453)

$2.49

$

In Stock, only 2 left!

0

8

Homelite 308991003

Auxiliary Handle Assembly

Note: (Inc. Key Nos. 7 & 11)

$16.99

$

Usually ships in 3-7 days

0

9

Homelite 316995001

Handle Housing Assembly

Note: (Inc. Key Nos. 21 & 27)

$40.99

$

Usually ships in 3-7 days

0

10

Homelite 562079003

Rubber Plate (Motor Plate)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 660643009

Bolt (1/4-20 x 45 mm, Cap Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 570815001

Rubber Plate (Motor)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 790009004

Wire Connector (Closed End)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 660208055

Screw (M4 x 12 mm, Pan Hd.)

$2.49

$

In Stock, only 3 left!

0

15

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$2.49

$

In Stock, Qty 10

0

16

Homelite 660502002

Screw w/Lock Washer (M5 x 8 mm, Pan Hd.)

$2.49

$

In Stock, only 1 left!

0

17

Homelite 523001003

Cord Clamp

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 941588743

Auto Feed No Bump Label (Guard)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 679973001

Compression Spring (Trigger)

$2.49

$

In Stock, only 3 left!

0

20

Homelite 351183001

Switch Trigger and Lock-Out Assembly

$6.49

$

In Stock, only 1 left!

0

21

Homelite 940705492

Logo Label

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 313290001

Switch, Contact Plate Assembly and Wire Harness

$52.99

$

Usually ships in 3-7 days

0

23

Homelite 940657185

Warning Icon Label

$

$

Not available

24

Homelite 941773001

Step For Edging Label

$2.49

$

In Stock, only 1 left!

0

25

Homelite 941013005

Warning Label (French/Spanish)

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 941588740

18V Lithium Label

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 941588739

Data Label

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 311155001

Spool Base & Slider Assembly

$16.99

$

Usually ships in 3-7 days

0

29

Spool w/Line Assembly

Note: (Item No. AC14RL3) | Standard Hardware Item - May Be Purchased Locally at The Home Depot

$

$

Not available

30

Homelite 316992001

Lower Tube Assembly

Note: (Inc. Key Nos. 25-26)

$19.99

$

Usually ships in 3-7 days

0

31

Homelite 941588741

Adjustable Cutting Width Label

$

$

Not available

32

Homelite 316996001

Guard Assembly

Note: (Inc. Key Nos. 18 & 31)

$31.99

$

Usually ships in 3-7 days

0

33

Homelite 317001001

Motor Housing Assembly

$15.99

$

Usually ships in 3-7 days

0

34

Homelite 351110001

Lower Housing Assembly

$8.49

$

Usually ships in 3-7 days

0

35

Homelite 316994001

Adjustment Pedal Assembly

Note: (Inc. Key No. 24)

$14.99

$

Usually ships in 3-7 days

0

Homelite 998000286

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
