P 20015 VNM (108654001) - Ryobi 18V Brushless String Trimmer, Rev 04 (2022-02) FIGURE B Parts Diagram

18V Brushless String Trimmer, Rev 04

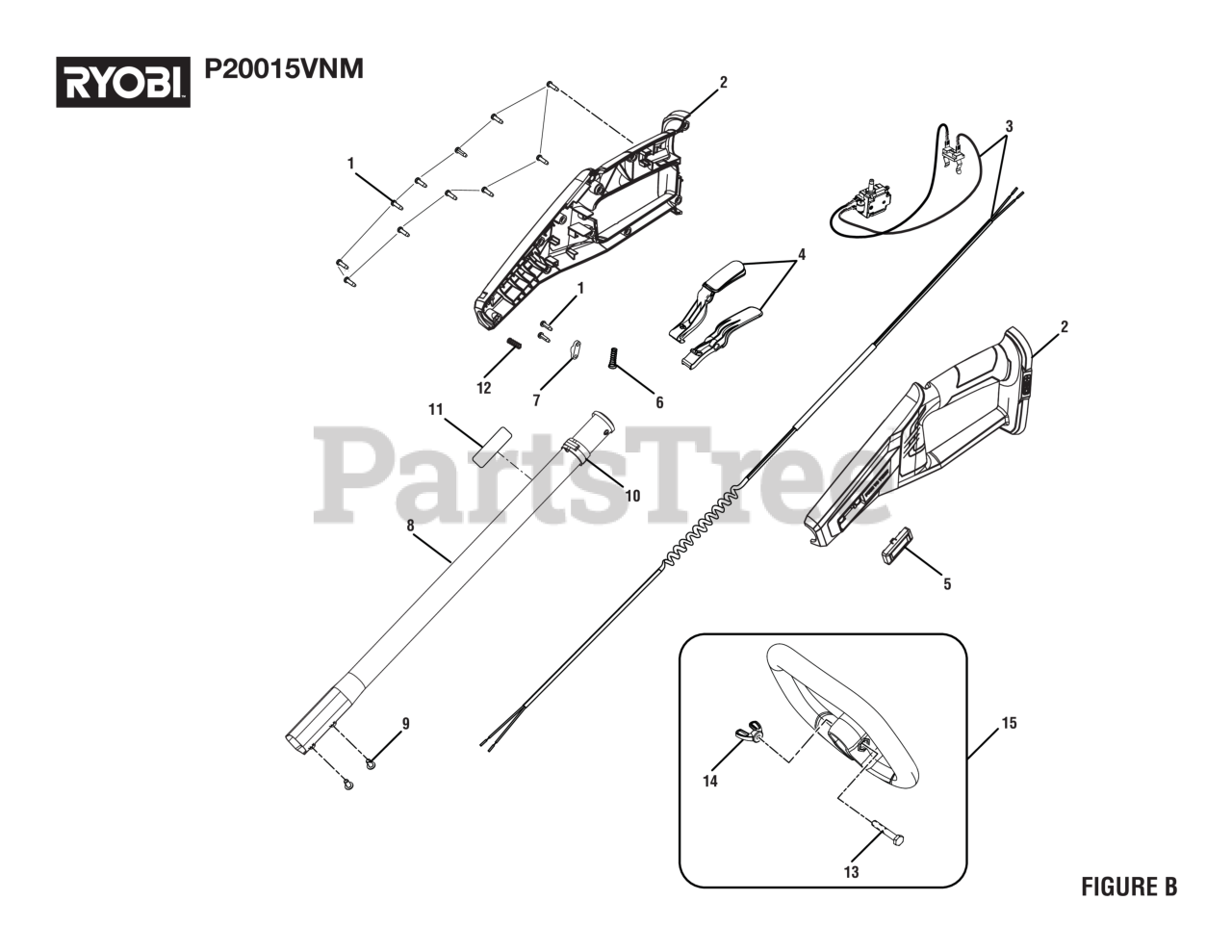

FIGURE B Parts Diagram

  • Title

1

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$2.49

$

In Stock, Qty 10

0

2

Homelite 313289002

Handle Housing Assembly w/Label

$40.99

$

Usually ships in 3-7 days

0

3

Homelite 313290001

Switch, Contact Plate Assembly and Wire Harness

$52.99

$

Usually ships in 3-7 days

0

4

Homelite 351183001

Switch Trigger and Lock-Out Assembly

$6.49

$

In Stock, only 1 left!

0

5

Homelite 541909001

Rotate Button

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 679973001

Compression Spring (Trigger)

$2.49

$

In Stock, only 3 left!

0

7

Homelite 523001003

Cord Clamp

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 317079001

Upper Tube Assembly (Inc. Key No. 11)

$24.99

$

Usually ships in 3-7 days

0

9

Homelite 660502002

Screw w/Lock Washer (M5 x 8 mm, Pan Hd.)

$2.49

$

In Stock, only 1 left!

0

10

Homelite 541911001

Lock Ring

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 940657185

Warning Icon Label

$

$

Not available

12

Homelite 696008001

Spring

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 660643009

Bolt (1/4-20 x 45 mm, Cap Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 518949001

Wing Nut (1/4-20, Plastic)
(Superseded to PS02453)

$2.49

$

In Stock, only 2 left!

0

15

Homelite 308991006

Auxiliary Handle Assembly

$18.99

$

Usually ships in 3-7 days

0
