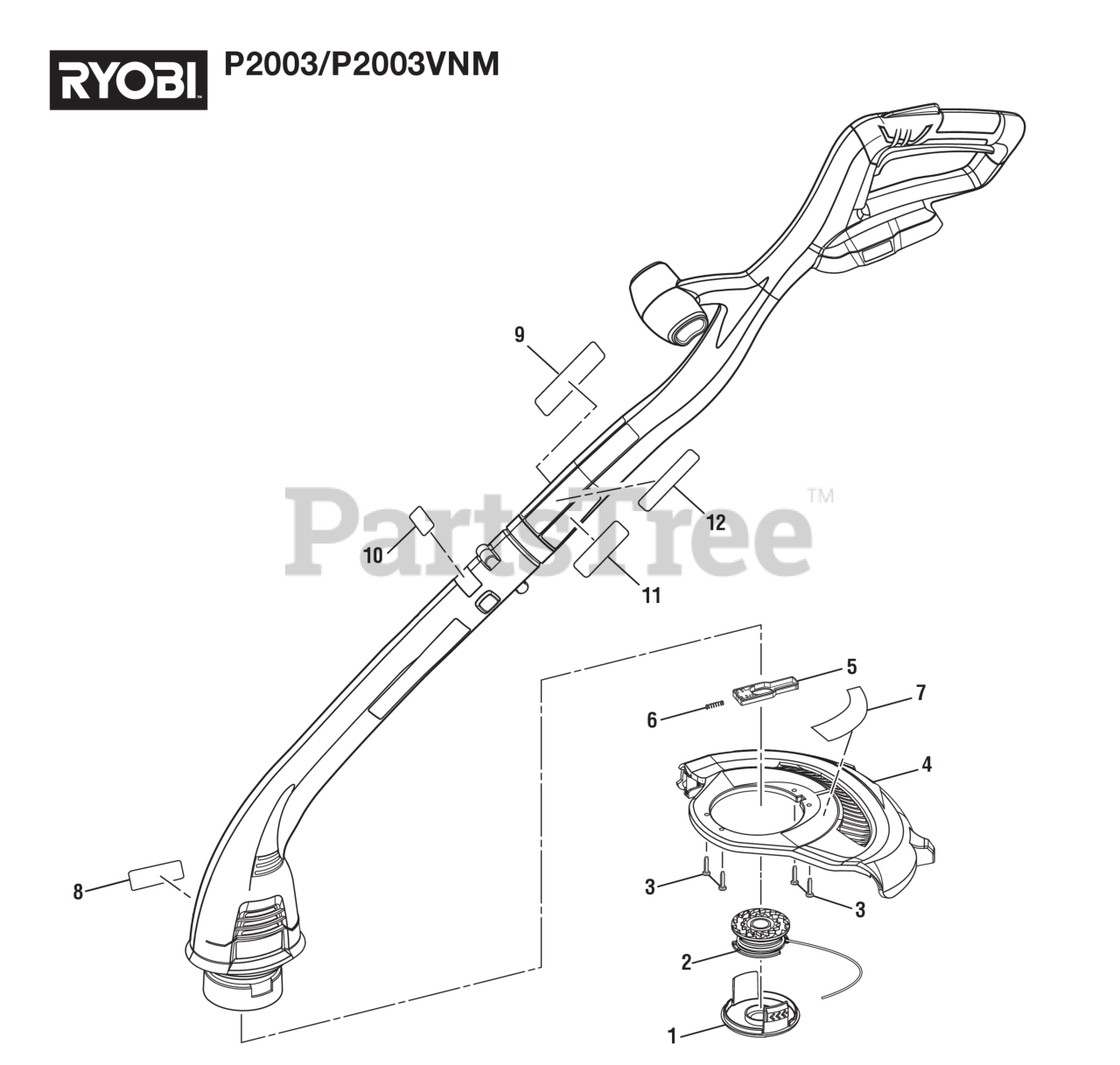

P 2003 VNM (107938101) - Ryobi 18V String Trimmer, Rev 08 (2022-04) General Assembly Parts Diagram

18V String Trimmer, Rev 08

General Assembly Parts Diagram

  • Title

1

Homelite 522994001

Spool Cap (AC14HCA)

$2.49

$

In Stock, only 3 left!

0

2

Homelite 205000001

Spool w/Line

$7.49

$

In Stock, only 1 left!

0

3

Homelite 660208055

Screw (M4 x 12 mm, Pan Hd.)

$2.49

$

In Stock, only 3 left!

0

4

Homelite 311033002

Guard with Blade Assembly

Note: (Inc. Key No. 7)

$13.99

$

Usually ships in 3-7 days

0

5

Homelite 310918001

Plastic Slider with Metal Inset Assembly

$13.99

$

In Stock, only 1 left!

0

6

Homelite 679034001

Compression Spring (Internal Tooth)

$2.49

$

In Stock, Qty 6

0

7

Homelite 941263202

No Bump Label

$2.49

$

Usually ships in 0 days

0

8

Homelite 941655052

Data Label (P2003VNM)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 941791002

Label, Warning, Translation

$

$

Not available

10

Homelite 940820003

Pivoting Arrow Label

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 941655007

Label, Ryobi Logo, Handle

$

$

Not available

12

Homelite 940657108

Label, Warning Icon

$

$

Not available

Homelite 987000432

Battery/Charger Correlation Sheet

Note: Not Shown

$

$

Currently unavailable

Homelite 990000360

Operator's Manual, P2003, P2004

Note: Not Shown

$

$

Not available
