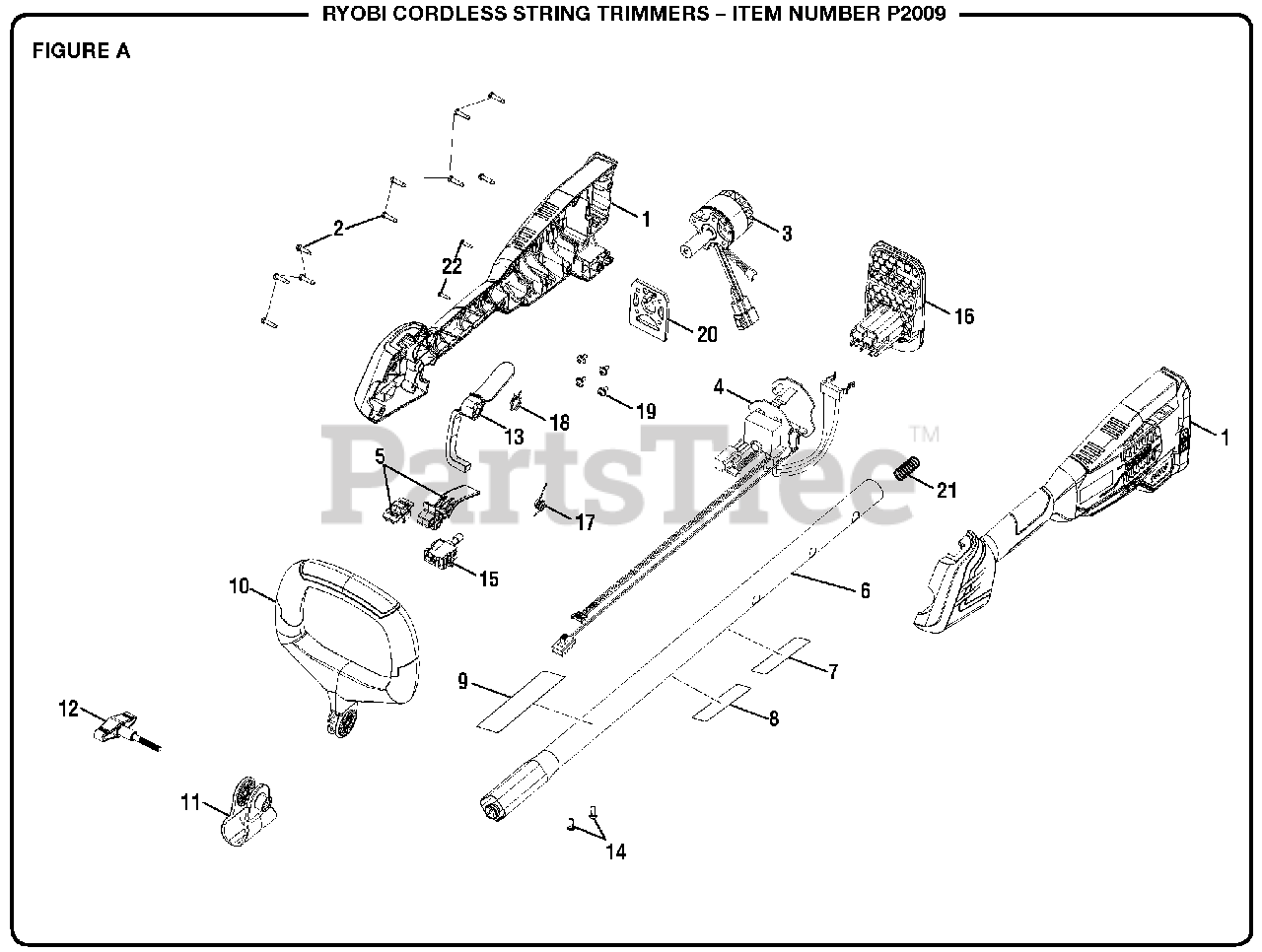

P 2009 (107291001) - Ryobi String Trimmer, Cordless, Rev 05 (2018-03) Figure A Parts Diagram

String Trimmer, Cordless, Rev 05

Figure A Parts Diagram

  • Title

1

Homelite 205004001

Rear Handle Assembly

$19.99

$

Usually ships in 3-7 days

0

2

Homelite T662028001

Screw (M4 x 16 mm)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 311291004

Motor Assembly

$84.99

$

Usually ships in 3-7 days

0

4

Homelite 311291005

Electric Controller and Switch Assembly

$

$

Not available

5

Homelite 205007001

Trigger Assembly

$

$

Not available

6

Homelite 205003001

Upper Boom Assembly

Note: (Inc. Key Nos. 7-9)

$

$

Not available

7

Homelite 940006271

Warning Label (Fr/Sp)

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 940028036

Data Label

$

$

Not available

9

Homelite 941657185

Warning Icon Label
(Superseded to 940657185)

$

$

Not available

10

Homelite 523409001

Front Handle

$18.99

$

Usually ships in 3-7 days

0

11

Homelite 205006001

Handle Bracket Assembly

Note: (Inc. Key No. 12)

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 522983004

Handle Knob

$

$

Not available

13

Homelite 532076005

Lock-Off Trigger

$2.49

$

In Stock, only 1 left!

0

14

Homelite 661848001

Screw (M5 x 10 mm)

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 760952002

Variable Speed Switch

$17.99

$

Usually ships in 3-7 days

0

16

Homelite 532224001

Battery Foot

$4.99

$

Usually ships in 3-7 days

0

17

Homelite 694457002

Torsion Spring

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 694457003

Torsion Spring

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 661861001

Screw (M4 x 8 mm)

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 532076007

Motor Plate

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 679065001

Compression Spring

$

$

Not available

22

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd.)

$2.49

$

In Stock, only 3 left!

0

Homelite 995000011

Operator's Manual

Note: Not Shown

$

$

Not available
