P 2009 (107291001) - Ryobi String Trimmer, Cordless, Rev 09 (2019-11) FIGURE A Parts Diagram

String Trimmer, Cordless, Rev 09

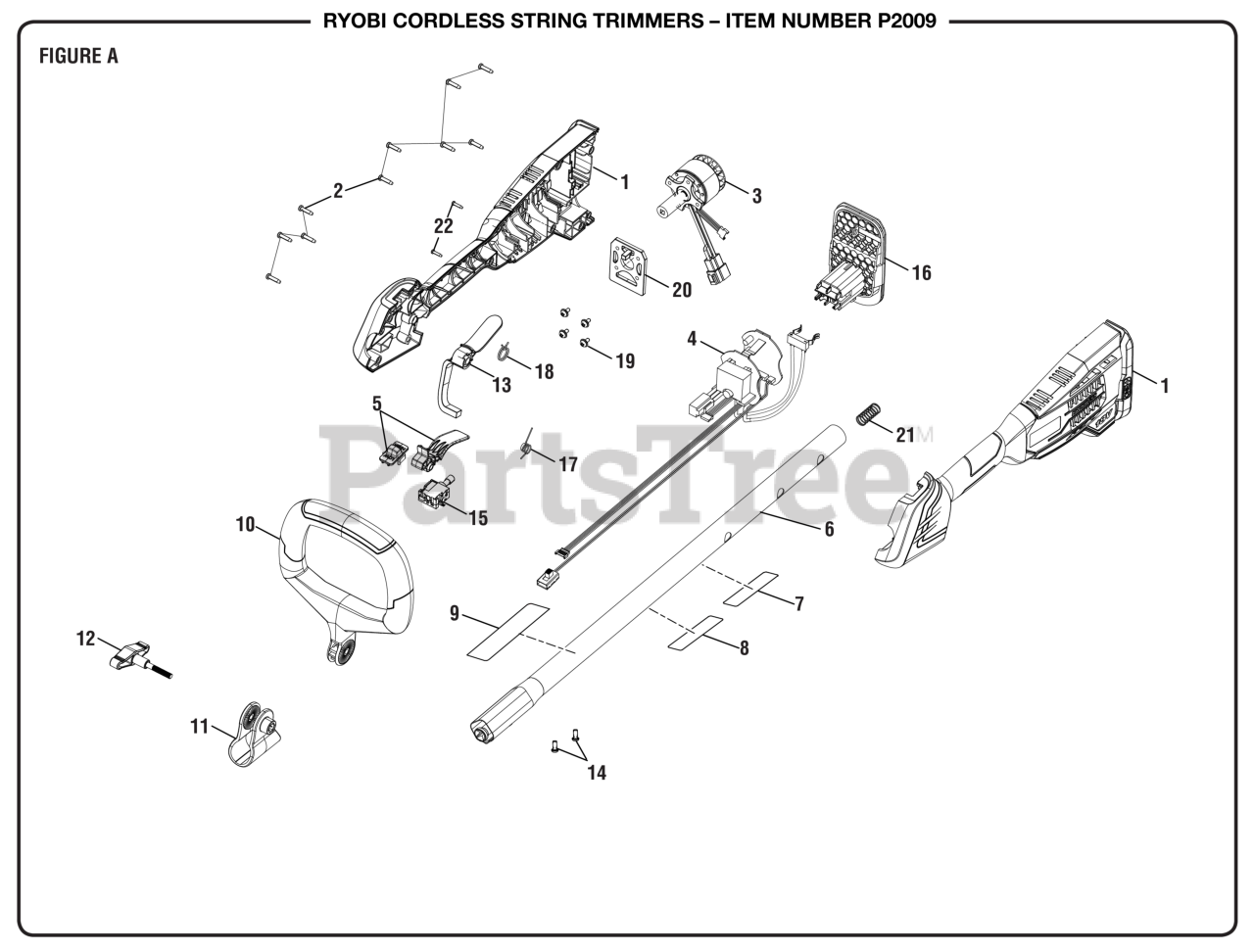

FIGURE A Parts Diagram

  • Title

1

Homelite 205004001

Rear Handle Assembly

$19.99

$

Usually ships in 3-7 days

0

2

Homelite T662028001

Screw (M4 x 16 mm, T15 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 311291004

Motor Assembly

$84.99

$

Usually ships in 3-7 days

0

4

Homelite 311291005

Electric Controller and Switch Assembly

$

$

Not available

5

Homelite 205007001

Trigger Assembly

$

$

Not available

6

Homelite 205003001

Upper Boom Assembly

$

$

Not available

7

Homelite 940006271

Warning Label (Upper End)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 940028036

Data Label

$

$

Not available

9

Homelite 940657185

Warning Icon Label

$

$

Not available

10

Homelite 523409001

Lower Auxiliary Handle

$9.49

$

Usually ships in 3-7 days

0

11

Homelite 205006001

Handle Bracket Assembly

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 313559001

Knob Assembly

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 532076005

Lock-Off Trigger

$1.49

$

In Stock, only 1 left!

0

14

Homelite 660502002

Screw w/Lock Washer (M5 x 8 mm, Pan Hd.)

$1.49

$

In Stock, only 3 left!

0

15

Homelite 760952002

Variable Speed Switch

$8.99

$

Usually ships in 3-7 days

0

16

Homelite 534208001

Battery Foot

$

$

Currently unavailable

17

Homelite 698420001

Torsion Spring

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 698399001

Torsion Spring

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 661861001

Screw w/Washer (M4 x 8 mm)

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 532076007

Motor Plate

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 679065001

Compression Spring

$

$

Not available

22

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd., Pan Hd)

$1.49

$

Usually ships in 3-7 days

0

Homelite 998000054

Operator's Manual

$

$

Currently unavailable
