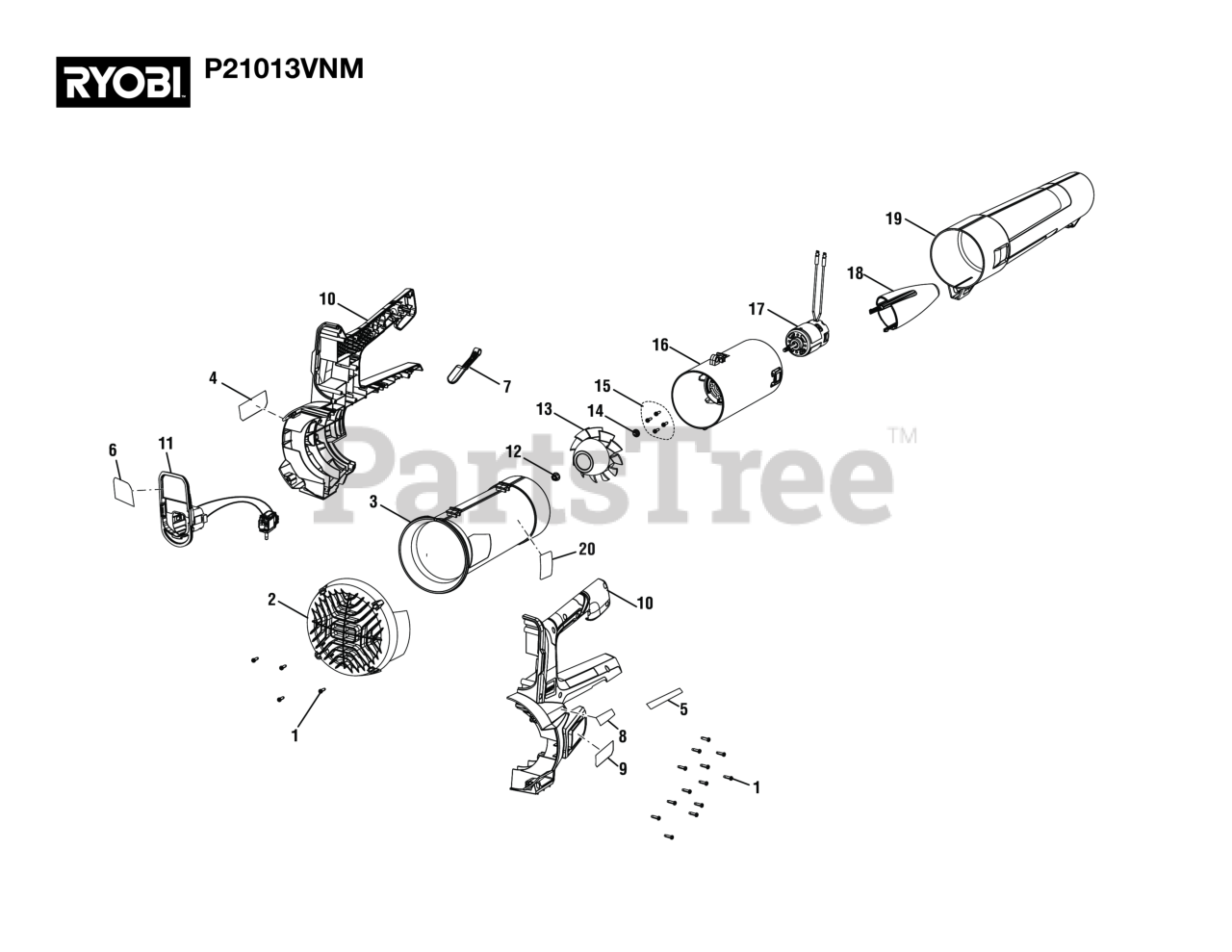

P 21013 VNM (108722001) - Ryobi 18V Blower, Rev 01 (2022-02) General Assembly Parts Diagram

18V Blower, Rev 01

General Assembly Parts Diagram

  • Title

1

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$2.49

$

In Stock, Qty 9

0

2

Homelite 541661001

Guard

$14.99

$

Usually ships in 3-7 days

0

3

Homelite 205938003

Inlet Bell Assembly

Note: (Inc. Key No. 20)

$19.99

$

Usually ships in 3-7 days

0

4

Homelite 941257002

Motor Side Logo Label

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 941588962

Icon Label

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 941588960

Data Label

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 544190001

Trigger

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 941588961

Warning Label

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 941588963

Warning Label (FR/ SP)

$2.49

$

Usually ships in 0 days

0

10

Homelite 205938002

Housing Assembly

Note: (Inc. Key Nos. 4-5 & 8-9)

$57.99

$

Usually ships in 3-7 days

0

11

Homelite 292409001

Switch and Battery Foot Assembly

Note: (Inc. Key No.6)

$67.99

$

Usually ships in 3-7 days

0

12

Homelite 678774009

Flange Lock Nut (M6 x 1 mm)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 545011001

Fan

$9.49

$

Usually ships in 3-7 days

0

14

Homelite 612854002

Bushing

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 660502002

Screw w/Lock Washer (M5 x 8 mm, Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 544187001

Stator

$13.99

$

Usually ships in 3-7 days

0

17

Homelite 742707002

Motor

$131.99

$

Usually ships in 3-7 days

0

18

Homelite 544188001

Nose Cone

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 544189001

Tube

$11.99

$

Usually ships in 3-7 days

0

20

Homelite 941110098

QR Label

$2.49

$

Usually ships in 3-7 days

0

Homelite 998000689

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
