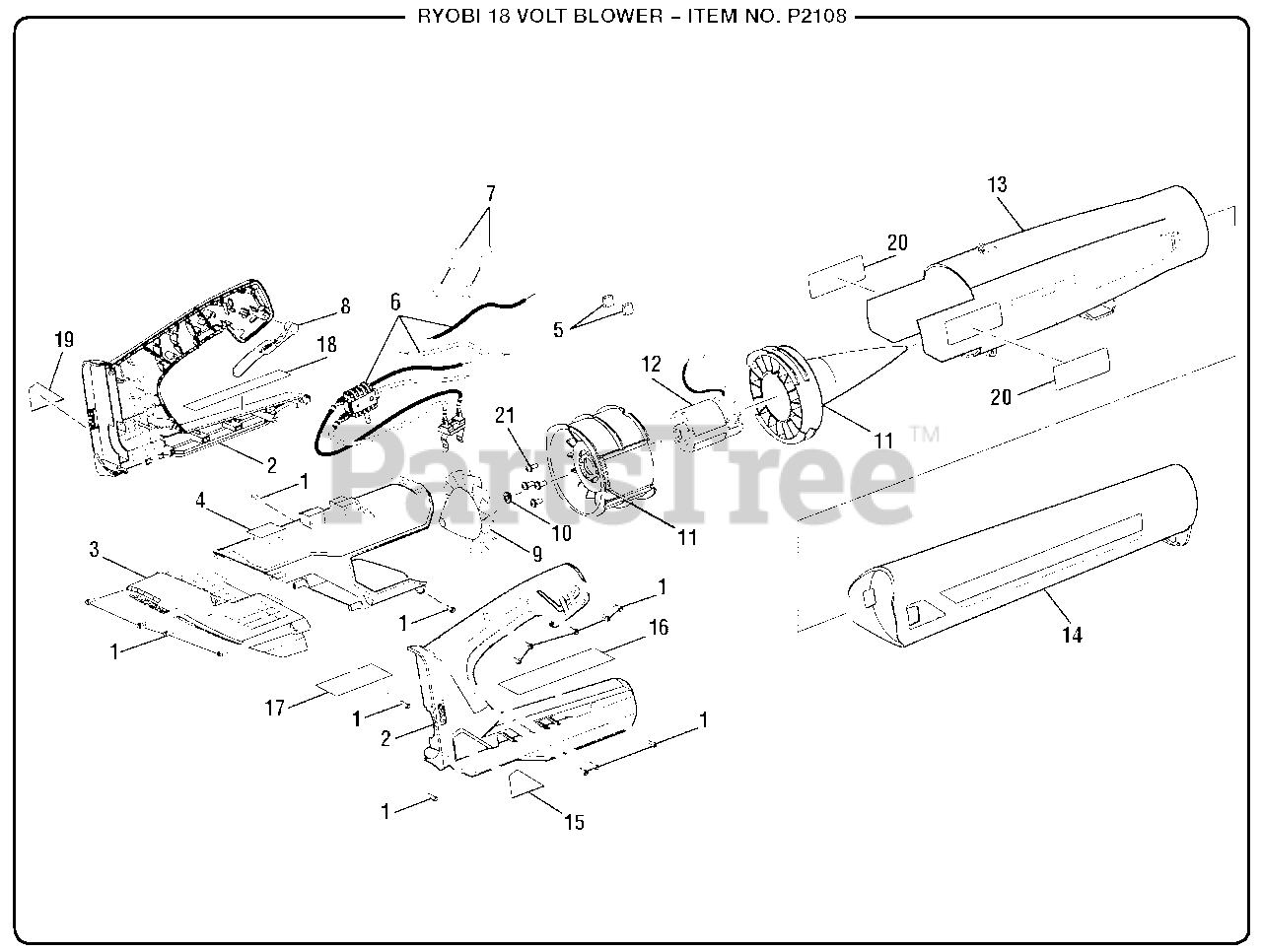

P 2108 (107267001) - Ryobi 18V Blower, Rev 03 (2017-05) General Assembly Parts Diagram

18V Blower, Rev 03

General Assembly Parts Diagram

  • Title

1

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.)

$

$

Not available

2

Homelite 330078001

Handle Assembly

Note: (Inc. Key Nos. 15-16 and 18-19)

$18.99

$

Usually ships in 3-7 days

0

3

Homelite 529436001

Inlet Guard

$7.99

$

Usually ships in 3-7 days

0

4

Homelite 330080001

Inlet Housing Assembly
(Superseded to 205152001)

Note: (Inc. Key No. 17)

$

$

Not available

5

Homelite 563768002

Rubber Block

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 291632001

Switch and Contact Plate Assembly

$25.99

$

In Stock, only 3 left!

0

7

Homelite 790021001

Wire Connector

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 525552001

Trigger Assembly (Variable Speed)

$1.49

$

In Stock, only 3 left!

0

9

Homelite 529437004

Fan Blade

$4.99

$

In Stock, only 2 left!

0

10

Homelite 612854001

Bushing

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 351074001

Tail Cone Assembly

$9.99

$

Usually ships in 3-7 days

0

12

Homelite 742200001

Motor

$35.99

$

Usually ships in 3-7 days

0

13

Homelite 330079001

Blower Housing Outlet Assembly

Note: (Inc. Key No. 20)

$15.99

$

In Stock, only 1 left!

0

14

Homelite 529431001

Blower Tube

$5.99

$

In Stock, only 2 left!

0

15

Homelite 940851099

18 Volt Logo Label (Right)

$

$

Not available

16

Homelite 940657183

Warning Label

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 941588103

Data Label
(Superseded to 941588369)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 940657184

Warning Icon Label

$

$

Not available

19

Homelite 940851100

18 Volt Logo Label (Left)

$

$

Not available

20

Homelite 940705307

Logo Label (Ryobi)

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 660502002

Screw w/Washer (M5 x 11 mm, Pan Hd.)

$1.49

$

In Stock, only 3 left!

0

Homelite 991000679

Operator's Manual

Note: NOT SHOWN

$

$

Not available
