P 2132E (1696179-00) - Snapper 32" Snow Thrower, 21hp Handles & Controls Group Parts Diagram

32" Snow Thrower, 21hp

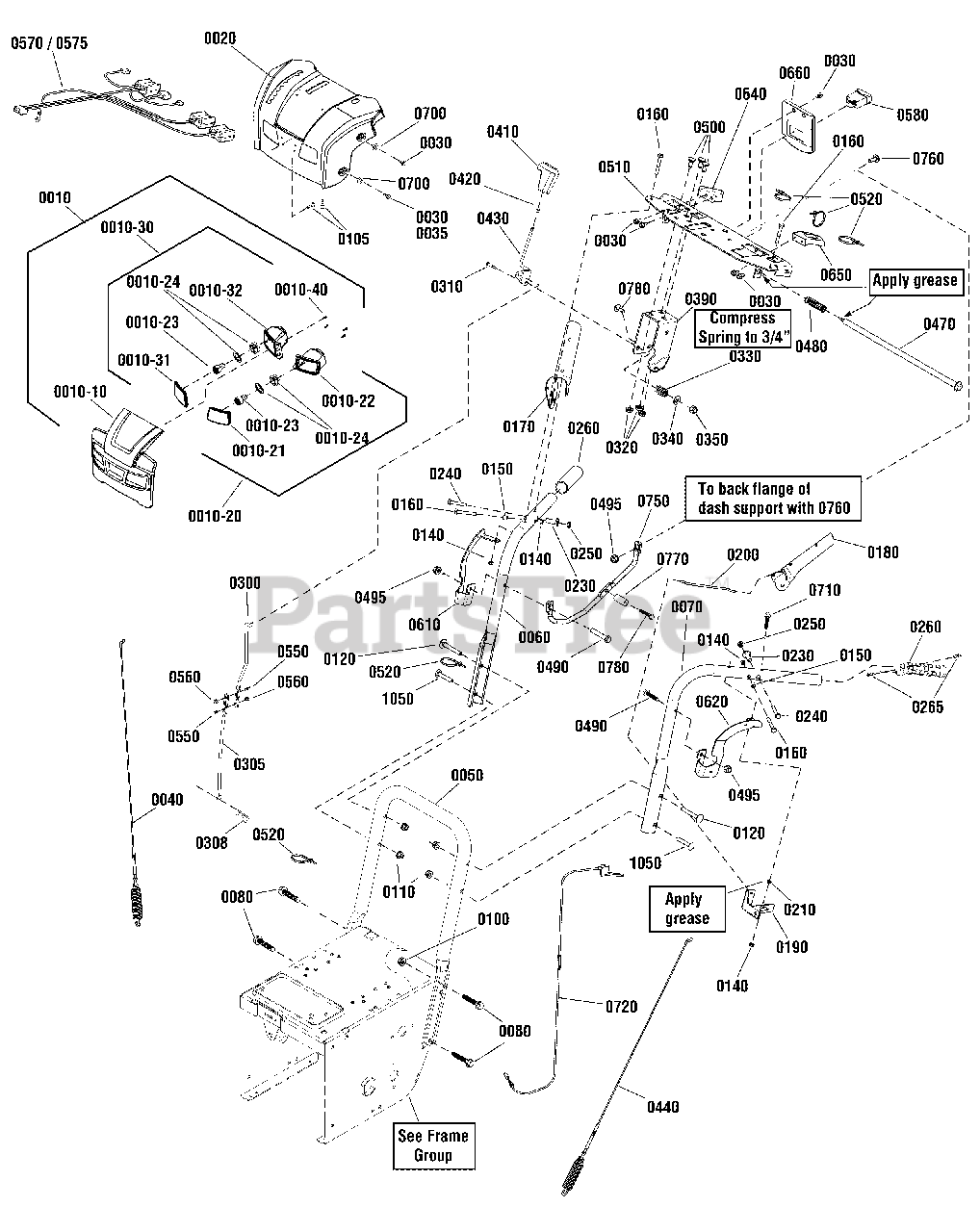

Handles & Controls Group Parts Diagram

  • Title

0010

Snapper 1755320YP

COVER ASSEMBLY, Dash

$208.99

$

Usually ships in 2-12 days

0

0010-10

Snapper 1754186YP

COVER, Dash

Note: (Included with Ref. No. 0010)

$85.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 1755318YP

DEFLECTOR ASSEMBLY, LH

Note: (Included with Ref. No. 0010)

$66.99

$

Usually ships in 2-12 days

0

0010-21

LENS, LH

Note: (Included with Ref. No. 0010-10)

$

$

Not available

0010-22

DEFLECTOR, LH

Note: (Included with Ref. No. 0010-10)

$

$

Not available

0010-23

LAMP, LED, 12VAC (1156)

Note: (Included with Ref. No. 0010-10 & 0010-30)

$

$

Not available

0010-24

Snapper 1736180YP

SOCKET, With Gasket

Note: (Included with Ref. No. 0010-10 & 0010-30)

$10.99

$

In Stock, only 4 left!

0

0010-30

Snapper 1755319YP

DEFLECTOR ASSEMBLY, RH

Note: (Included with Ref. No. 0010)

$74.99

$

Usually ships in 2-12 days

0

0010-31

LENS, RH

Note: (Included with Ref. No. 0010-30)

$

$

Not available

0010-32

DEFLECTOR, RH

Note: (Included with Ref. No. 0010-30)

$

$

Not available

0010-40

Snapper 7091105YP

SCREW, Hex Washer HEad, #10-16 x 1/2

$5.49

$

In Stock, only 4 left!

0

0020

Snapper 1754196DYP

COVER PANEL, Red

$176.99

$

Usually ships in 2-12 days

0

0030

Snapper 1960556SM

SCREW, Pan Head Torx, 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

0035

Snapper 1960715SM

SCREW, Truss Head Torx, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 14

0

0040

Snapper 1735643YP

CABLE & SPRING ASSEMBLY

$26.99

$

Usually ships in 2-12 days

0

0050

Snapper 1735641AYP

HANDLE, Lower

$79.99

$

Usually ships in 2-12 days

0

0060

Snapper 1737531AYP

HANDLE, Upper, RH

$59.99

$

Usually ships in 2-12 days

0

0070

Snapper 1734586ASM

HANDLE, Upper, LH

$55.99

$

In Stock, only 1 left!

0

0080

Snapper 1737687YP

BOLT, Carriage, 5/16-18 x 3/4, GR 5

$6.49

$

Usually ships in 2-12 days

0

0100

Snapper 703222

NUT, Hex Keps, 5/16-18

$5.99

$

In Stock, only 2 left!

0

0105

Snapper 7091105YP

SCREW, Hex Washer Head, #10-16 x 1/2

$5.49

$

In Stock, only 4 left!

0

0110

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 9

0

0120

Snapper 1960273SM

BOLT, Carriage, 5/16-18 x 2-1/4
(Superseded to 704421)

$5.49

$

Usually ships in 2-12 days

0

0140

Snapper 703232

NUT, Nylock, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0150

Snapper 703137

SPACER, 1/4 ID x 3/8 OD x .33"

$6.99

$

In Stock, only 2 left!

0

0160

Snapper 703588

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, GR5

$3.99

$

Usually ships in 2-12 days

0

0170

Snapper 1739783AYP

LEVER, Clutch, RH

$28.99

$

In Stock, only 1 left!

0

0180

Snapper 1739782AYP

LEVER, Clutch, LH

$

$

Not available

0190

Snapper 1733505BMYP

BRACKET, Pivot, Free Hand

$14.99

$

Usually ships in 2-12 days

0

0200

Snapper 1736360YP

ROD, Hold Down

$11.99

$

Usually ships in 2-12 days

0

0210

Snapper 703124

SPACER, 1/4 x .118

$3.99

$

Usually ships in 2-12 days

0

0230

Snapper 703223

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0240

Snapper 1753529YP

BOLT, Shoulder, 1/4 x 1.45

$3.99

$

Usually ships in 2-12 days

0

0250

Snapper 703412

NUT, Nylock, #10-24

$4.49

$

In Stock, Qty 12

0

0260

Snapper 1738124YP

GRIP, Heated
(Superseded to 770002)

$86.99

$

Usually ships in 2-12 days

0

0265

Snapper 703044YP

SCREW, #6-20 X .380, Self-Drill Pan HD, Zinc/Clear

Note: (Was 80003472)

$

$

Currently unavailable

0300

Snapper 1750635YP

ROD, Shift Linkage, Upper

$18.99

$

In Stock, only 1 left!

0

0305

Snapper 1666255SM

ROD, Shift, Lower

$51.99

$

In Stock, only 1 left!

0

0308

Snapper 1722460SMYP

HAIRPIN, Quick, .080 Wire, 1.19LG, Zinc/Clear

$

$

Currently unavailable

0310

Snapper 703589

CAPSCREW, Hex Head, 3/8-16 x 2, GR5

$4.49

$

In Stock, Qty 7

0

0320

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0330

Snapper 50786MA

SPRING

$5.49

$

Usually ships in 2-12 days

0

0340

Snapper 1918266SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 16

0

0350

Snapper 703117

NUT, Nylock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

0390

Snapper 1751352YP

BRACKET, Controls

$15.99

$

Usually ships in 2-12 days

0

0410

Snapper 304437MA

GRIP, Lever, 3/8-16

$11.99

$

Usually ships in 2-12 days

0

0420

Snapper 1917421SM

NUT, Hex Jam, 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

0430

Snapper 703048

SHIFT LEVER ASSEMBLY

$71.99

$

Usually ships in 2-12 days

0

0440

Snapper 1735646YP

CABLE, Front Drive, 28.6" +/- 1"

$21.99

$

Usually ships in 2-12 days

0

0470

Snapper 1733509SM

ROD & SPRING ASSEMBLY, 15.25"

$81.99

$

Usually ships in 2-12 days

0

0480

Snapper 2108360SM

SPRING, Compression

$5.49

$

Usually ships in 2-12 days

0

0490

Snapper 703588

CAPSCREW, Hex Head, 1/4-20 x 1-3/4

$3.99

$

Usually ships in 2-12 days

0

0495

Snapper 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, only 1 left!

0

0500

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0510

Snapper 1739500BMYP

SUPPORT, Dash

$54.99

$

Usually ships in 2-12 days

0

0520

Snapper 7012080SM

TIE, Cable, 7.0"
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0550

Snapper 703576

BOLT, Carriage, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, Qty 5

0

0560

Snapper 703061

NUT, 1/4-20

$3.49

$

In Stock, only 3 left!

0

0570

Snapper 1750773YP

WIRING HARNESS

$100.99

$

Usually ships in 2-12 days

0

0575

Snapper 1752164YP

WIRING HARNESS, Heated Hand Grip

$43.99

$

In Stock, only 1 left!

0

0580

Snapper 1752242YP

SWITCH, Heated Hand Grip

$36.99

$

In Stock, only 1 left!

0

0610

Snapper 1739663BMYP

BRACKET, Mounting, RH

$17.99

$

Usually ships in 2-12 days

0

0620

Snapper 1739664BMYP

BRACKET, Mounting, LH

$22.99

$

Usually ships in 2-12 days

0

0640

Snapper 1739483AYP

POD, Chute Rotation

$35.99

$

Usually ships in 2-12 days

0

0650

Snapper 1739484AYP

POD, Deflector Control

$

$

Not available

0660

Snapper 1739861BMYP

BRACKET, Switch, Heated Hand Grip
(Superseded to 1739861AYP)

$19.99

$

Usually ships in 2-12 days

0

0700

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 11

0

0710

Snapper 1725702SM

SCREW, Pan Head Torx, #10 x 1/2

$5.49

$

Usually ships in 2-12 days

0

0720

Snapper 1718791SM

CABLE & HANDLE ASSEMBLY

$70.99

$

In Stock, only 1 left!

0

0750

Snapper 1737552YP

BRACE

$22.99

$

In Stock, only 1 left!

0

0760

Snapper 703576

BOLT, Carriage, 1/4-20 x 3/4, GR5
(Superseded to 703101)

$3.99

$

In Stock, Qty 5

0

0770

Snapper 1713588SM

SPACER, 5/16 ID x 1/2 ID x 1-1/2

$8.49

$

Usually ships in 2-12 days

0

0780

Snapper 703142

SCREW, Trilobular, 1/4-20 x 2-1/4

$3.49

$

Usually ships in 2-12 days

0

1050

Snapper 703453

BOLT, Carriage, 5/16-18 x 1-3/4

$5.99

$

In Stock, only 3 left!

0
