P 2138 E (1696930-00) - Simplicity Professional 38" Snow Thrower, 21hp Auger Housing Group Parts Diagram

Professional 38" Snow Thrower, 21hp

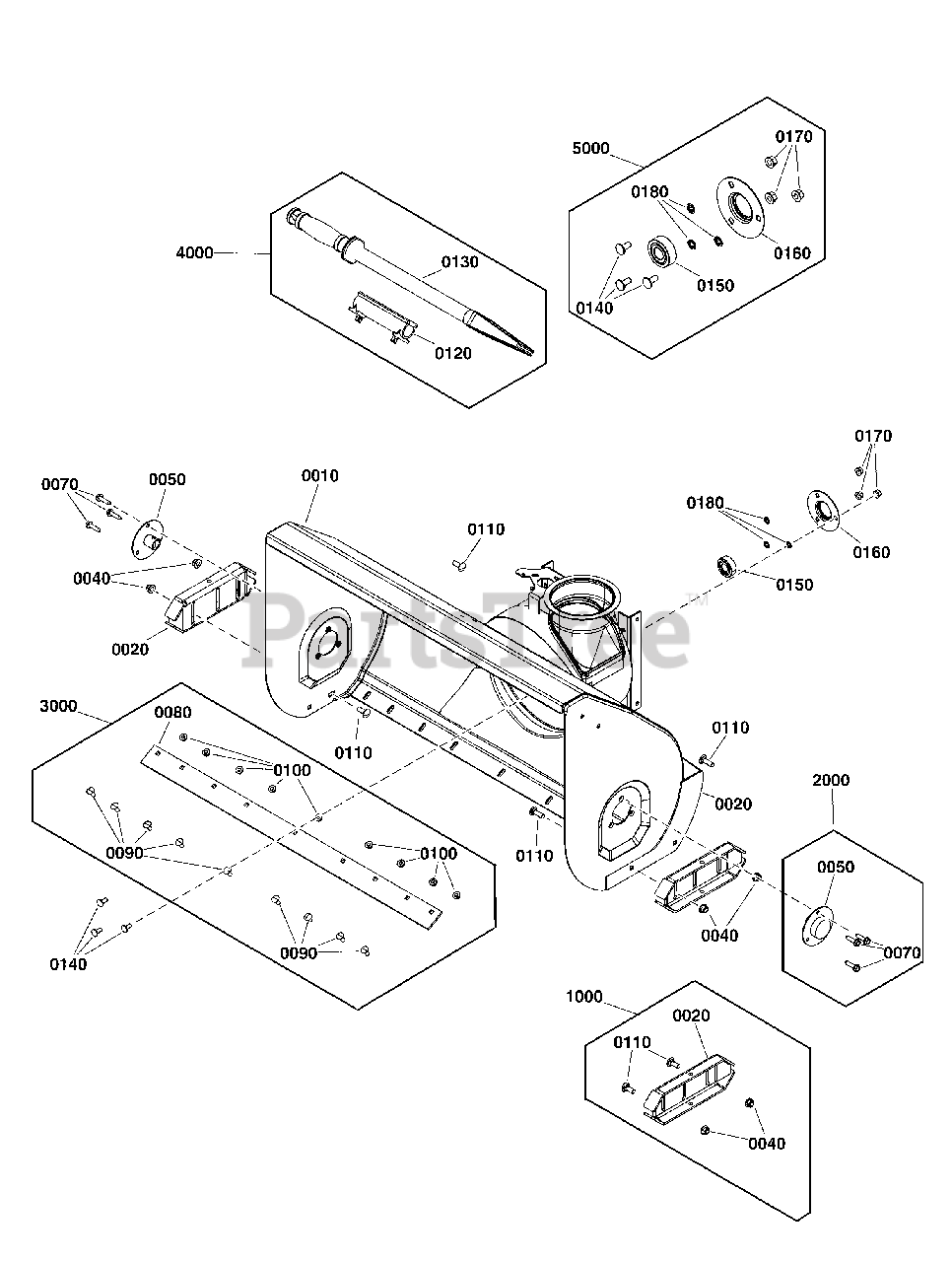

Auger Housing Group Parts Diagram

  • Title

0010

WELDMENT, Auger Housing, HD, 38", Orange

Note: (Not a serviceable part)

$

$

Not available

1000

Simplicity 772146

KIT, Skid Shoe

Note: (Includes Items 0020, 0040, 0110)

$189.99

$

Usually ships in 2-12 days

0

0020

SHOE, Skid, Black

$

$

Not available

0040

NUT, 3/8-16 Hex Flange Esna, Black

$

$

Not available

0110

BOLT,3/8-16X1.000,RND HD CRRG,ZINC/CLEAR

$

$

Not available

2000

Simplicity 772167

KIT, Ball Bearing Assembly

Note: (Includes Items 0050, 0070)

$51.99

$

Usually ships in 2-12 days

0

0050

BEARING BALL ASSEMBLY ZINC/CLEAR

$

$

Not available

0070

SCREW, 5/16-18 x 3/4" Hex Washer Head Self-Tap, Black

$

$

Not available

3000

Simplicity 772150

KIT, Scraper Blade, 38", Black

Note: (Includes Items 0080, 0090, 0100)

$64.99

$

Usually ships in 2-12 days

0

0080

BLADE, Scraper 38", Black

$

$

Not available

0090

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

0100

NUT 5/16-18 HEX FLNG CNTR LCK ZC/CL

$

$

Not available

4000

Simplicity 707549

KIT, CLEANOUT BRUSH STICK

Note: (Includes Items 0120, 0130)

$28.99

$

In Stock, only 1 left!

0

0120

CLAMP, Cleanout

$

$

Not available

0130

SHOVEL, Cleanout

$

$

Not available

5000

Simplicity 772145

KIT, Bearing Mounting Plate

Note: (Includes Items 0140, 0150, 0160, 0170, 0180)

$18.99

$

Usually ships in 2-12 days

0

0140

RHSSNB,5/16-18 X 3/4 GR5 ZINC/CLEAR

$

$

Not available

0150

BEARING-BALL 0.750ID 1.780OD 0.610LG

$

$

Not available

0160

RETAINER, BEARING CLEAR ZINC

$

$

Not available

0170

NUT, 5/16-18 Hex Flange Nyloc

$

$

Not available

0180

NUT, 5/16 X.625, Push Pal

$

$

Not available
