P 2185020E (7800982-00) - Snapper 21" Walk-Behind Mower, Electric Start, 8.5hp Decals Parts Diagram

21" Walk-Behind Mower, Electric Start, 8.5hp

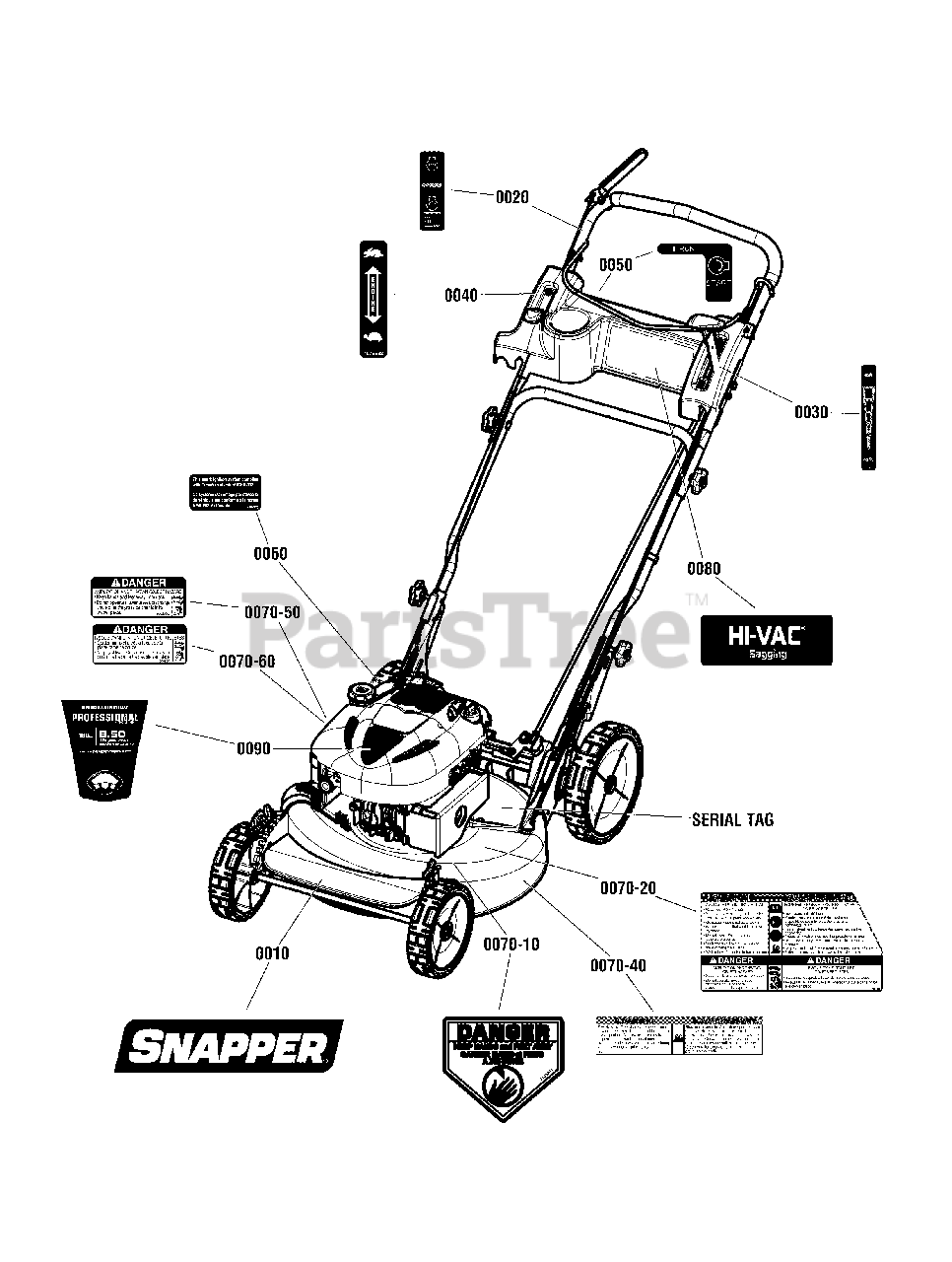

Decals Parts Diagram

  • Title

0010

Snapper 7104148YP

DECAL, Logo, Snapper, 7.88"

$33.99

$

In Stock, only 2 left!

0

0020

Snapper 7029782MA

DECAL, OPC Bail, International Symbols

$12.99

$

Usually ships in 2-12 days

0

0030

Snapper 7075471YP

DECAL, Speed Shift

$11.99

$

Usually ships in 2-12 days

0

0040

Snapper 7075532YP

DECAL, Throttle Control, B&S

$12.99

$

Usually ships in 2-12 days

0

0050

Snapper 7075688YP

DECAL, Ignition Switch

$8.49

$

Usually ships in 2-12 days

0

0060

Snapper 7102996YP

DECAL, ICES, Canadian Spark Compliance

$9.49

$

Usually ships in 2-12 days

0

0070-10

Snapper 7105261YP

DECAL, CPSC, Cut Finger, French/English
(Superseded to 7106353YP)

$17.99

$

Usually ships in 2-12 days

0

0070-20

DECAL, Warning/Danger, English/French

Note: (Included on Decal Sheet #7106353YP)

$

$

Not available

0070-40

DECAL, Spark Arrestor, English/French

Note: (Included on Decal Sheet #7106353YP)

$

$

Not available

0070-50

DECAL, Danger, English

Note: (Included on Decal Sheet #7106353YP)

$

$

Not available

0070-60

DECAL, Danger, French

Note: (Included on Decal Sheet #7106353YP)

$

$

Not available

0080

Snapper 7106322YP

DECAL, HI-VAC, Bagging

$13.99

$

Usually ships in 2-12 days

0

0090

Snapper 709542

DECAL, Turtle, 850

$13.99

$

Usually ships in 2-12 days

0
