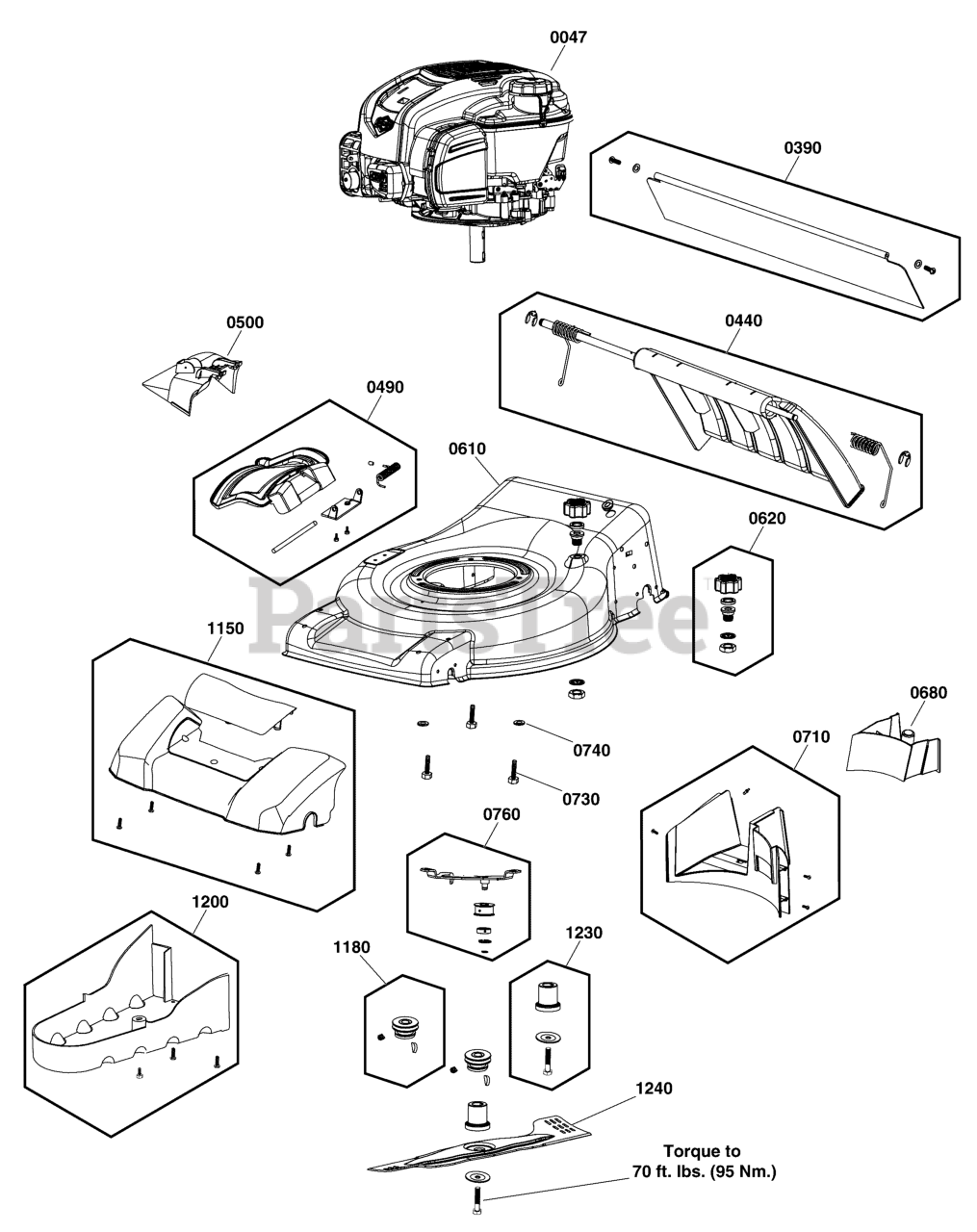

P 21850QES (2691613-00) - Snapper 21" Walk-Behind Mower, 3-N-1 Self-Propelled, 850 Series Briggs Deck & Engine Group Parts Diagram

21" Walk-Behind Mower, 3-N-1 Self-Propelled, 850 Series Briggs

Deck & Engine Group Parts Diagram

  • Title

0047

Snapper 123P0B-0081-F1

*ENGINE

Note: (Refer to Note: *)

$

$

Currently unavailable

0390

Snapper 84002842

COVER, Dust

$41.99

$

Usually ships in 2-12 days

0

0440

Snapper 84002851

KIT, Deflector, Rear

$58.99

$

Usually ships in 2-12 days

0

0490

Snapper 84002852

KIT, Deflector

$45.99

$

In Stock, only 1 left!

0

0500

Snapper 707312

CHUTE, Side Discharge

$40.99

$

In Stock, only 1 left!

0

0610

DECK

Note: (Not a serviceable part.)

$

$

Not available

0620

Snapper 84002854

KIT, Washout Port

$11.99

$

Usually ships in 2-12 days

0

0680

Snapper 84002859

PLUG, Mulch

$32.99

$

Usually ships in 2-12 days

0

0710

Snapper 84002882

KIT, Baffle Assembly

$66.99

$

Usually ships in 2-12 days

0

0730

SCREW, Engine Mount

$

$

Not available

0740

WASHER

$

$

Not available

0760

Snapper 84002899

KIT, Idler Traction Drive

$38.99

$

In Stock, only 2 left!

0

1150

Snapper 84002855

KIT, Cover, Axle

$89.99

$

Usually ships in 2-12 days

0

1180

Snapper 84002887

PULLEY ASSEMBLY

$13.99

$

Usually ships in 2-12 days

0

1200

Snapper 84003511

KIT, Belt Cover

$4.99

$

Usually ships in 0 days

0

1230

Snapper 84002863

KIT, Blade Adapter

$39.99

$

In Stock, only 2 left!

0

1240

Snapper 84002861

BLADE, Mower

$56.99

$

In Stock, only 2 left!

0
