P 21850QES (2691613-00) - Snapper 21" Walk-Behind Mower, 3-N-1 Self-Propelled, 850 Series Briggs Drive Group Parts Diagram

21" Walk-Behind Mower, 3-N-1 Self-Propelled, 850 Series Briggs

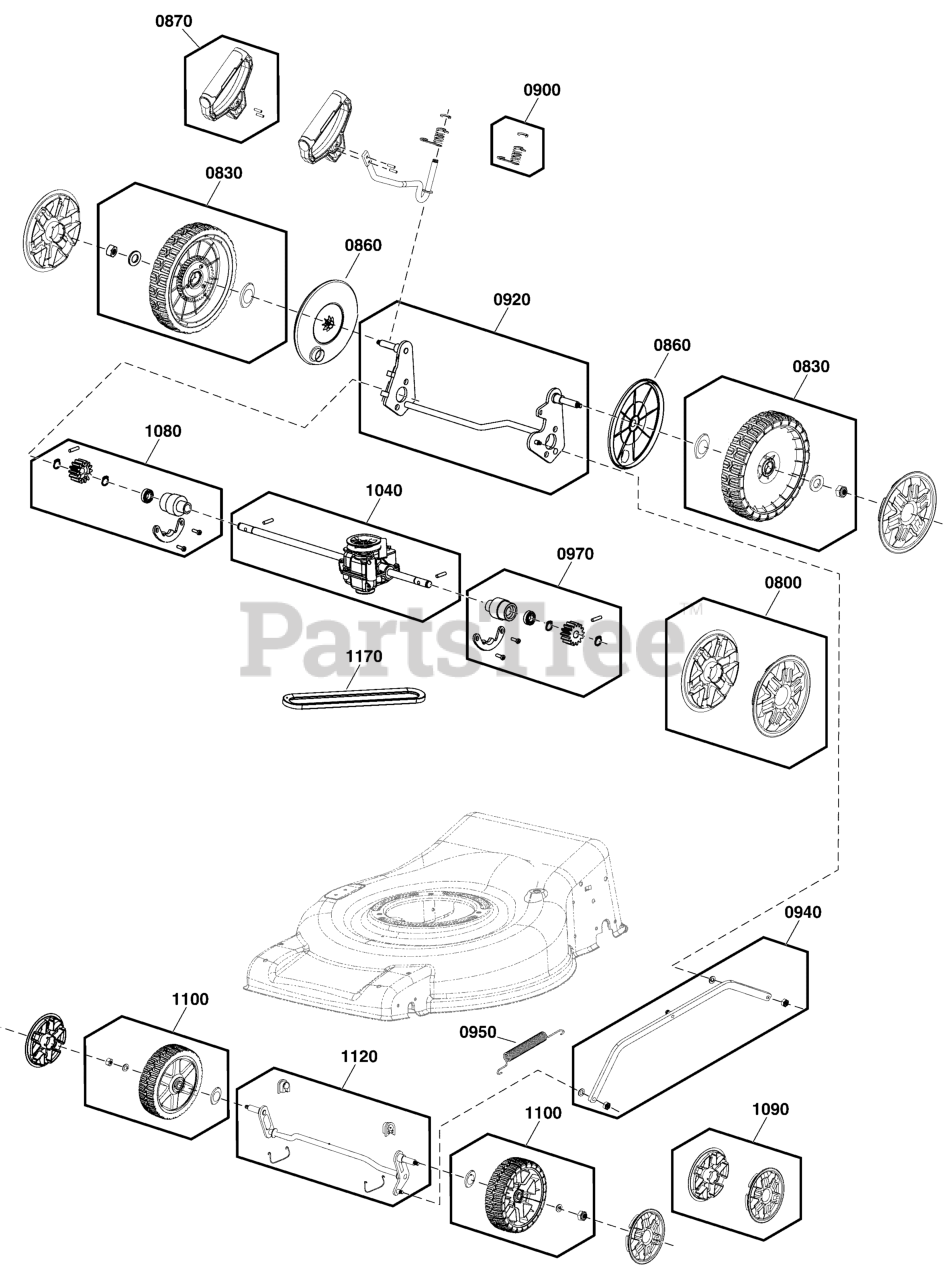

Drive Group Parts Diagram

  • Title

0800

Snapper 84002850

KIT, Hub Cap

Note: (300mm)

$34.99

$

In Stock, only 3 left!

0

0830

Snapper 84002879

KIT, Wheel

Note: (300mm)

$71.99

$

Usually ships in 2-12 days

0

0860

Snapper 84002891

COVER, Wheel, Dust

$18.99

$

Usually ships in 2-12 days

0

0870

Snapper 84002865

KIT, Handle

$11.99

$

Usually ships in 2-12 days

0

0900

Snapper 84002864

KIT, Spring

$4.49

$

Usually ships in 2-12 days

0

0920

Snapper 84002901

AXLE, Rear

$101.99

$

Usually ships in 2-12 days

0

0940

Snapper 84002853

KIT, Height Adjust

$37.99

$

Usually ships in 2-12 days

0

0950

Snapper 707580

SPRING, Connecting Rod

$

$

Currently unavailable

0970

Snapper 84002880

KIT, Drive Gear, Right

$31.99

$

In Stock, only 2 left!

0

1040

Snapper 84002900

KIT, Transmission

$278.99

$

Usually ships in 2-12 days

0

1080

Snapper 84002881

KIT, Drive Gear, Left

$31.99

$

Usually ships in 2-12 days

0

1090

Snapper 84002849

KIT, Hub Cap

Note: (200mm)

$20.99

$

Usually ships in 2-12 days

0

1100

Snapper 84002847

KIT, Wheel

Note: (200mm)

$49.99

$

In Stock, Qty 15

0

1120

Snapper 84002845

KIT, Front Axle

$75.99

$

Usually ships in 2-12 days

0

1170

Snapper 84002890

V-BELT

$31.99

$

In Stock, only 2 left!

0
