P 230 S - Shindaiwa Pole Saw / Pruner Piston / Crankshaft / Clutch Shoe Parts Diagram

Pole Saw / Pruner

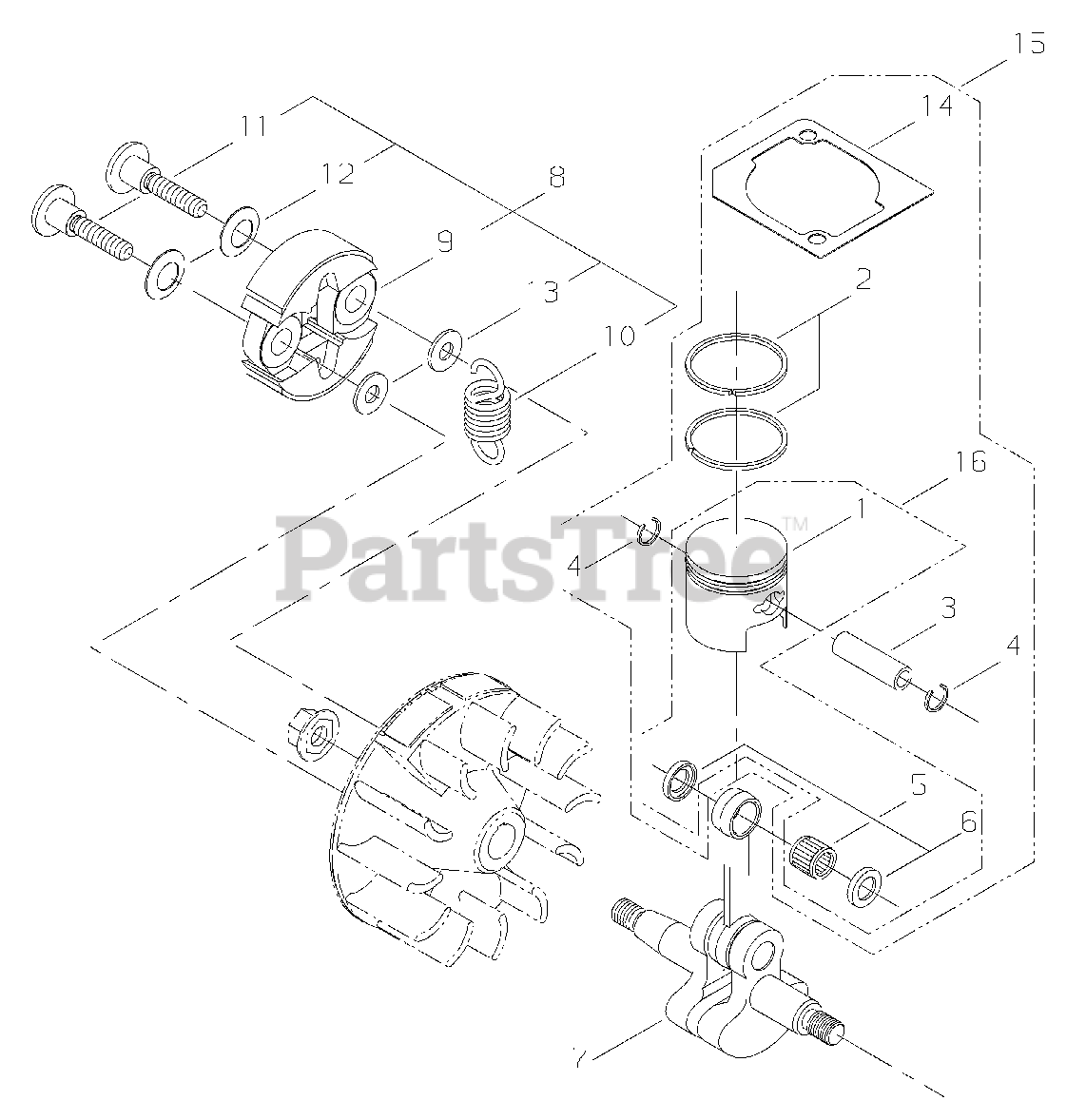

Piston / Crankshaft / Clutch Shoe Parts Diagram

  • Title

3-15

Echo 70234-98011

PISTON SET
(Superseded to P021030500)

$60.99

$

In Stock, only 3 left!

0

16

Echo 70234-98310

PISTON SET
(Superseded to 20075-41111)

$39.99

$

Usually ships in 2-4 days

0

1

Echo 20075-41111

PISTON
(Superseded to A100000730)

$39.99

$

Usually ships in 2-4 days

0

5

Echo 37013-41230

BEARING, NEEDLE - 8
(Superseded to V553000080)

$6.99

$

Usually ships in 2-4 days

0

6

Echo 37013-41240

SPACER, PISTON
(Superseded to V306000250)

$2.99

$

Usually ships in 2-4 days

0

2

Echo 20000-41210

RING, PISTON
(Superseded to A101000400)

$6.49

$

In Stock, only 4 left!

0

3

Echo 20016-41310

PIN, PISTON
(Superseded to V606000060)

$3.99

$

In Stock, only 1 left!

0

4

Echo 70030-41320

RING, RETAINING
(Superseded to V580000070)

$1.49

$

In Stock, Qty 20+

0

14

Echo 20016-12120

GASKET, CYLINDER
(Superseded to V100000490)

$1.99

$

In Stock, Qty 5

0

7

Echo 20016-42002

CRANKSHAFT ASSY
(Superseded to A011000930)

$67.99

$

Usually ships in 2-4 days

0

8

Echo 70140-51102

CLUTCH ASSY
(Superseded to A056000260)

$32.99

$

In Stock, Qty 20+

0

9

Echo 70140-51113

SHOE, CLUTCH
(Superseded to A553000060)

$20.99

$

In Stock, only 3 left!

0

10

Echo 37013-51310

SPRING, CLUTCH
(Superseded to A566000050)

$3.49

$

In Stock, Qty 11

0

11

Echo 20087-51210

BOLT, CLUTCH
(Superseded to A557000040)

$2.99

$

In Stock, only 2 left!

0

12

Echo 20087-51231

WASHER - SPRING
(Superseded to V346000040)

$1.49

$

Usually ships in 2-4 days

0

13

Echo 22100-71430

WASHER
(Superseded to V304000150)

$1.49

$

Usually ships in 2-4 days

0
