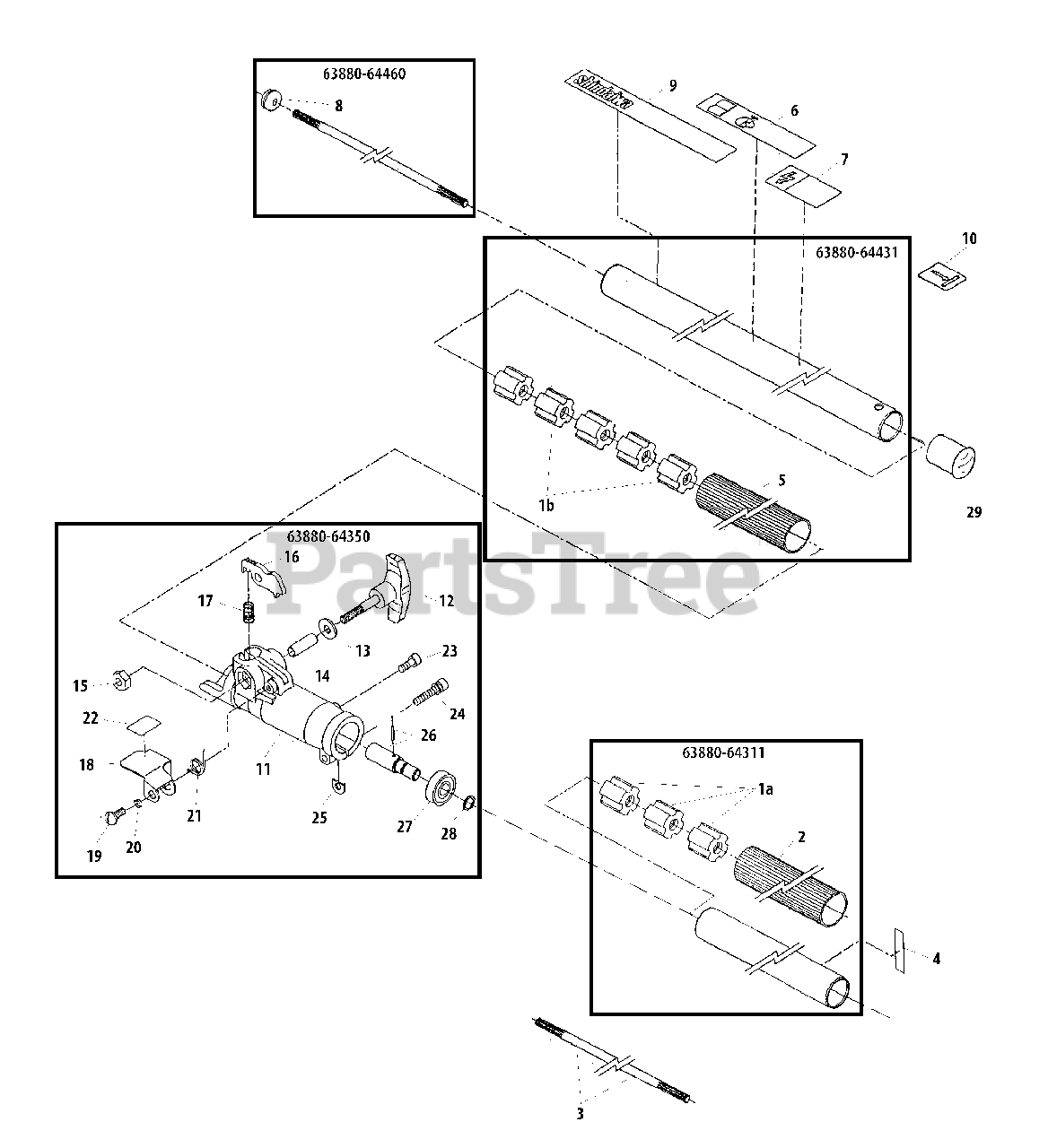

P 231 - Shindaiwa Pole Saw / Pruner Outer Tube Parts Diagram

Pole Saw / Pruner

Outer Tube Parts Diagram

  • Title

63880-64311

Echo 63880-64311

MAIN PIPE ASSY
(Superseded to C050001560)

$78.99

$

In Stock, only 1 left!

0

1a

Echo 22035-12120

BUSHING
(Superseded to 22035-12121)

$4.49

$

In Stock, Qty 6

0

2

Echo 63880-64330

GRIP

$15.99

$

Usually ships in 2-4 days

0

2a

Echo 60880-98050

COLLAR
(Superseded to V475005170)

$9.49

$

Usually ships in 2-4 days

0

3

Echo 63880-64340

PIPE, MAIN
(Superseded to C504000550)

$20.99

$

In Stock, only 3 left!

0

4

Echo 72005-12140

LABEL - HANDLE LOCATION
(Superseded to X505002860)

$0.99

$

In Stock, Qty 18

0

63880-64431

Echo 63880-64431

MAIN PIPE ASSY
(Superseded to C050001570)

$105.99

$

Usually ships in 2-4 days

0

1b

Echo 22035-12120

BUSHING
(Superseded to 22035-12121)

$4.49

$

In Stock, Qty 6

0

5

Echo 63880-64450

GRIP
(Superseded to C403000250)

$9.49

$

Usually ships in 2-4 days

0

6

Echo 19402-00170

LABEL - CAUTION
(Superseded to X505003470)

$2.49

$

Usually ships in 2-4 days

0

7

Echo 19402-00171

LABEL - CAUTION
(Superseded to 19402-00173)

$2.49

$

Usually ships in 2-4 days

0

63880-64460

Echo 63880-64460

DRIVESHAFT ASSY
(Superseded to C504000560)

$37.99

$

Usually ships in 2-4 days

0

8

Echo 15250-10100

GROMMET
(Superseded to V145000210)

$1.49

$

In Stock, only 2 left!

0

9

Echo 19420-00049

LABEL - MODEL
(Superseded to 19420-00084)

$3.99

$

In Stock, Qty 11

0

10

Echo 19402-00173

LABEL - HIGH VOLTAGE
(Superseded to X505003480)

$2.49

$

Usually ships in 2-4 days

0

63880-64350

Echo 63880-64350

COUPLER ASSY
(Superseded to P021028870)

$128.99

$

Usually ships in 2-4 days

0

11

Echo 37000-62220

COUPLER
(Superseded to C510000200)

$35.99

$

Usually ships in 2-4 days

0

12

Echo 63880-64380

KNOB
(Superseded to V299000350)

$6.99

$

In Stock, Qty 7

0

13

Echo 72030-14130

WASHER
(Superseded to V304000160)

$1.49

$

In Stock, Qty 12

0

14

Echo 1790106220

COLLAR
(Superseded to V354000260)

$1.49

$

In Stock, only 3 left!

0

15

Echo 63880-64410

NUT
(Superseded to V264000120)

$1.49

$

In Stock, Qty 12

0

16

Echo 37000-62310

LEVER, LOCK
(Superseded to C661000050)

$15.99

$

In Stock, only 2 left!

0

17

Echo 1750006001

SPRING
(Superseded to V450000860)

$1.49

$

In Stock, Qty 7

0

18

Echo 37000-62340

COVER
(Superseded to C516000020)

$5.49

$

Usually ships in 2-4 days

0

19

Echo 11207-05120

SCREW - 5X12
(Superseded to 9157705012)

$1.49

$

In Stock, only 4 left!

0

20

Echo 15401-00004

COLLAR
(Superseded to V353000330)

$1.99

$

In Stock, only 1 left!

0

21

Echo 17520-12400

SPRING
(Superseded to V452000510)

$1.49

$

In Stock, only 3 left!

0

22

Echo 19401-00168

LABEL - LATCH INSTRUCTION
(Superseded to X505002880)

$1.49

$

In Stock, Qty 9

0

23

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 15

0

24

Echo 11023-05250

SCREW - 5X25
(Superseded to V203000560)

$1.99

$

In Stock, Qty 5

0

25

Echo 22000-13420

SHIM
(Superseded to V340000300)

$1.49

$

In Stock, Qty 6

0

26

Echo 63880-64360

CONNECTOR, SHAFT
(Superseded to P021028880)

$34.99

$

In Stock, only 3 left!

0

27

Echo 02002-00609

BEARING, BALL - 609ZZ
(Superseded to 90080400609)

$16.99

$

In Stock, only 4 left!

0

28

Echo 22420-13350

RING, RETAINING
(Superseded to V582000130)

$1.49

$

In Stock, Qty 17

0

29

Echo 20891-98180

CAP
(Superseded to C525000030)

$2.99

$

In Stock, Qty 10

0
