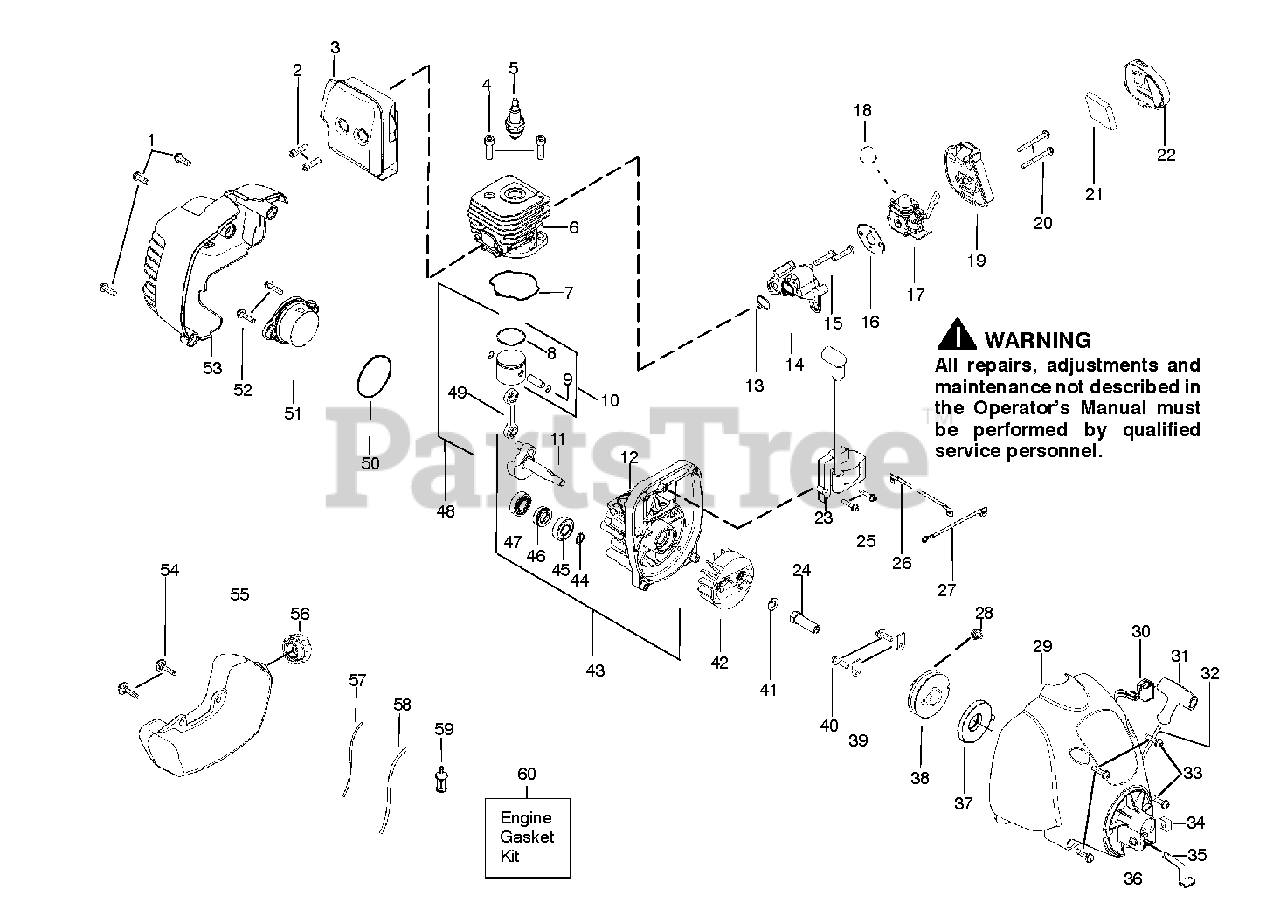

P 2500 (952711931) - Poulan String Trimmer (2010-08) ENGINE Parts Diagram

String Trimmer

ENGINE Parts Diagram

  • Title

1

Poulan 530015814

SCREW

$3.49

$

In Stock, only 3 left!

0

2

Poulan 530058982

BOLT MUFFLER

Note: . 2

$3.49

$

Usually ships in 3-10 days

0

3

Poulan 545227901

ASSY MUFFLER SHIELD

$45.99

$

Usually ships in 3-10 days

0

4

Poulan 530015953

SCREW

$3.49

$

In Stock, Qty 7

0

5

Poulan 952030249

PLUG-SPARK (RCJ-6Y)

Note: RCJ-6Y

$4.49

$

In Stock, Qty 20+

0

6

Poulan 530012541

CYLINDER MACHINED 25CC LO

$31.99

$

Usually ships in 3-10 days

0

7

Poulan 530071750

KIT GASKET 25CC

Note: KIT

$

$

Not available

8

Poulan 530055120

PISTON RING
(Superseded to 545154001)

$4.99

$

In Stock, only 1 left!

0

9

Poulan 530015162

WRIST PIN RET.

$3.49

$

In Stock, only 2 left!

0

10

Poulan 530071357

PISTON
(Superseded to 530071833)

Note: . 8 9

$34.99

$

In Stock, only 2 left!

0

11

Poulan 530057829

ASSY CRANKSHAFT

$45.99

$

Usually ships in 3-10 days

0

12

Poulan 530012582

ASSY CRANKCASE

Note: . 45 46 47

$39.99

$

Usually ships in 3-10 days

0

13

Poulan 530071750

KIT GASKET 25CC

Note: KIT

$

$

Not available

14

Poulan 530057547

ADAPTOR CARBURETOR

$11.99

$

In Stock, only 2 left!

0

15

Poulan 530016441

SCREW

$3.49

$

In Stock, only 3 left!

0

16

Poulan 530071750

KIT GASKET 25CC

Note: KIT

$

$

Not available

17

Poulan TBD

Note: KIT-CARB

$

$

Not available

17

Poulan 530071822

KIT CARB ASSY # C1U-W24
(Superseded to 530071752)

Note: C1U-W32 REPAIR KITS ARE NOT AVAILABLE FOR THIS CARBURETOR

$45.99

$

In Stock, only 2 left!

0

17

Poulan 545081807

KIT CARB ASSY WT670
(Superseded to 530071822)

Note: WT-670 REPAIR KITS ARE NOT AVAILABLE FOR THIS CARBURETOR

$45.99

$

In Stock, only 2 left!

0

18

Poulan TBD

Note: BULB-PURGE

$

$

Not available

18

Poulan 530058709

PURGE BULB ZAMA

Note: ZAMA

$7.99

$

In Stock, Qty 12

0

18

Poulan 530035497

PURGE BULB 188-16

Note: WALBRO

$9.49

$

In Stock, Qty 6

0

19

Poulan 574615001

BASE

$

$

Not available

20

Poulan 530016429

SCREW

$3.49

$

In Stock, only 2 left!

0

21

Poulan 530057781

FOAM AIR FILTER

$5.99

$

In Stock, Qty 13

0

22

Poulan 530057584

COVER AIR BOX

$10.99

$

Usually ships in 3-10 days

0

23

Poulan 545024901

(Superseded to 530039237)

$34.99

$

Usually ships in 3-10 days

0

24

Poulan 530038604

DRIVE-COUPLING

$5.99

$

Usually ships in 3-10 days

0

25

Poulan 530016357

SCREW

$3.49

$

In Stock, only 2 left!

0

26

Poulan 530014663

LEAD WIRE

$

$

Not available

27

Poulan 530014662

GROUND WIRE

$

$

Not available

28

Poulan 530016392

SCREW SEMS TOOTHED WASHER

$3.49

$

In Stock, only 1 left!

0

29

Poulan 545010611

FAN HOUSING

$13.99

$

Usually ships in 3-10 days

0

30

Poulan 545081869

KIT SWITCH MOMENTARY

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 530027569

HANDLE-STARTER

$4.99

$

Usually ships in 3-10 days

0

32

Poulan 530071767

KIT ROPE

$5.99

$

Usually ships in 3-10 days

0

33

Poulan 530016386

SCREW

$4.99

$

In Stock, only 1 left!

0

34

Poulan 530016124

NUT SQUARE

$

$

Not available

35

Poulan 530057588

CLIP

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 530016430

SCREW

$

$

Not available

37

Poulan 530042085

STARTER SPRING
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

38

Poulan 530071786

STARTER PULLEY KIT

$13.99

$

In Stock, only 4 left!

0

39

Poulan 530027523

RETAINER

$4.99

$

In Stock, only 1 left!

0

40

Poulan 530015775

SCREW 8-16 X 9/16 (PLAS

$3.49

$

In Stock, only 1 left!

0

41

Poulan 530015828

WASHER FLAT

$3.49

$

In Stock, only 1 left!

0

42

Poulan 545005101

ASSY FLYWHEEL
(Superseded to 545221701)

$31.99

$

In Stock, Qty 6

0

43

Poulan 530071768

ASSEMBLY

Note: . 11 12 44

$

$

Not available

44

Poulan 530015941

RETAINING RING

$3.49

$

Usually ships in 3-10 days

0

45

Poulan 530055728

OUTER BEARING

$6.99

$

Usually ships in 3-10 days

0

46

Poulan 530019264

SEAL

$5.99

$

Usually ships in 3-10 days

0

47

Poulan 530032125

BEARING
(Superseded to 738210101)

$11.99

$

Usually ships in 3-10 days

0

48

Poulan 530071785

PISTON KIT

Note: . 10 49

$45.99

$

Usually ships in 3-10 days

0

49

Poulan 530069945

KIT-CONN ROD ASSY
(Superseded to 530049817)

$13.99

$

In Stock, only 2 left!

0

50

Poulan 530071750

KIT GASKET 25CC

Note: KIT

$

$

Not available

51

Poulan 530057954

ASSY REAR PLUG

Note: . 50

$5.99

$

In Stock, only 2 left!

0

52

Poulan 530016386

SCREW

$4.99

$

In Stock, only 1 left!

0

53

Poulan 545011004

CYLINDER COVER

$11.99

$

In Stock, only 4 left!

0

54

Poulan 530016445

SCREW FUEL TANK RETAINER

$

$

Not available

55

Poulan 545104102

ASSY FUEL TANK (FL)
(Superseded to 581263701)

Note: INCL FILTER LINES FUEL CAP

$22.99

$

In Stock, Qty 6

0

56

Poulan 530014347

CAP ASSY W/ RETAINER

$9.49

$

In Stock, Qty 5

0

57

Poulan 530069247

KIT-LINE

Note: SMALL

$2.49

$

In Stock, Qty 20+

0

58

Poulan 530069216

LINE KIT

Note: LARGE

$13.99

$

In Stock, Qty 20+

0

59

Poulan 530095646

FUEL PICK-UP ASSY

$6.99

$

In Stock, Qty 20+

0

60

Poulan 530071750

KIT GASKET 25CC

Note: . 7 13 16 50

$

$

Not available

Poulan 530057827

LEVER CHOKE

Note: NOT SHOWN

$20.99

$

In Stock, only 3 left!

0

Poulan 530058662

CHOKE LEVER

Note: NOT SHOWN

$

$

Not available
