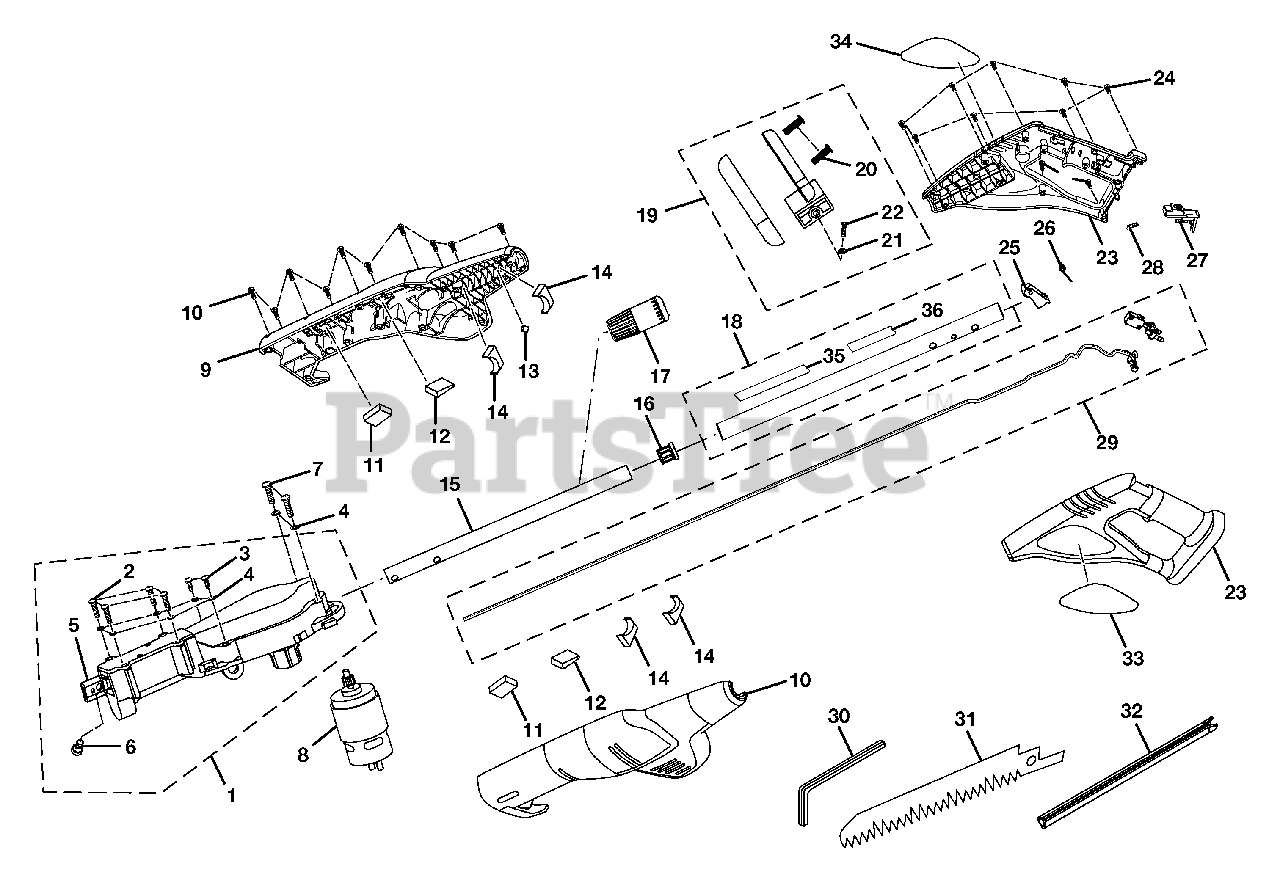

P 2500 - Ryobi 18V Pole Saw 18 Volt Pole Pruner Parts Diagram

18V Pole Saw

18 Volt Pole Pruner Parts Diagram

  • Title

1

Homelite 2201613

GEAR BOX ASSEMBLY

Note: (INC. KEY NOS 2-6)

$

$

Not available

2

Homelite 6616503

SCREW (M4 X 18 mm)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 6621211

SCREW (M4 X 12 mm)

Note: May Be Purchased Locally

$0.99

$

Usually ships in 3-7 days

0

4

Homelite 6703001

SPRING WASHER

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 6904001

MOUNTING CLAMP

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 6616926

SCREW (M6) WITH SPRING

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 6621215

SCREW (M4 X 28 mm)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 2307403

MOTOR ASSEMBLY

$

$

Not available

9

Homelite 200205005

MOTOR HOUSING ASSEMBLY

$18.96

$

Usually ships in 3-7 days

0

10

Homelite 6620805

SCREW (M4 X 16 mm)
(Superseded to 660208052)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 5670301

FRONT ISOLATION BLOCK

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 5672301

CENTERISOLATION BLOCK

$

$

Currently unavailable

13

Homelite 560219003

RUBBERSEAL

$

$

Currently unavailable

14

Homelite 5688401

REARISOLATION BLOCK

$

$

Not available

15

Homelite 6959801

UPPER SHAFT (23 mm X 613mm)

$

$

Currently unavailable

16

Homelite 590645001

TUBE STOPPER

$1.06

$

Usually ships in 3-7 days

0

17

Homelite 200207002

CONNECTING CAP ASSEMBLY

$4.20

$

Usually ships in 3-7 days

0

18

Homelite 300909008

TUBE ASSEMBLY (26 mm X 584

Note: (INC. KEY NOS. 35 AND 36)

$9.34

$

Usually ships in 3-7 days

0

19

Homelite 200206002

HANDLE ASSEMBLY

Note: (INC. KEY NOS. 20-22)

$7.24

$

Usually ships in 3-7 days

0

20

Homelite 6620501

SCREW (M3 X 14 mm)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 6819602

HEX NUT (M6)

Note: May Be Purchased Locally

$

$

Not available

22

Homelite 660169039

SCREW (M6 X 10)

Note: May Be Purchased Locally

$

$

Currently unavailable

23

Homelite 200181021

HOUSING ASSEMBLY

$20.14

$

Usually ships in 3-7 days

0

24

Homelite 6620606

SCREW (M3.5 X 16 mm)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 5205506

TRIGGER

$

$

Not available

26

Homelite 6794201

TRIGGER SPRING

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 5912701

TRIGGER LOCK

$

$

Not available

28

Homelite 670703001

COMPRESSION SPRING

$

$

Not available

29

Homelite 2701511

SWITCH ASSEMBLY

$

$

Not available

30

Homelite 6800201

HEX KEY (5 mm)

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 6968001

BLADE

$

$

Not available

32

Homelite 5944401

BLADE COVER

$

$

Not available

33

Homelite 940932028

LOGO LABEL

$1.06

$

Usually ships in 3-7 days

0

34

Homelite 940303259

DATA LABEL

$1.06

$

Usually ships in 3-7 days

0

35

Homelite 940230140

WARNING LABEL

$1.06

$

Usually ships in 3-7 days

0

36

Homelite 940230139

DATA WARNING LABEL

$1.06

$

Usually ships in 3-7 days

0

Homelite 983000845

OPERATOR'S MANUAL (960059100)

$1.06

$

Usually ships in 3-7 days

0

Homelite NLA

REPAIR SHEET (REV:00)

$

$

Currently unavailable
