P 2503 (107440003) - Ryobi 18V Reciprocating Pruning Saw, Rev 02 (2021-07) General Assembly Parts Diagram

18V Reciprocating Pruning Saw, Rev 02

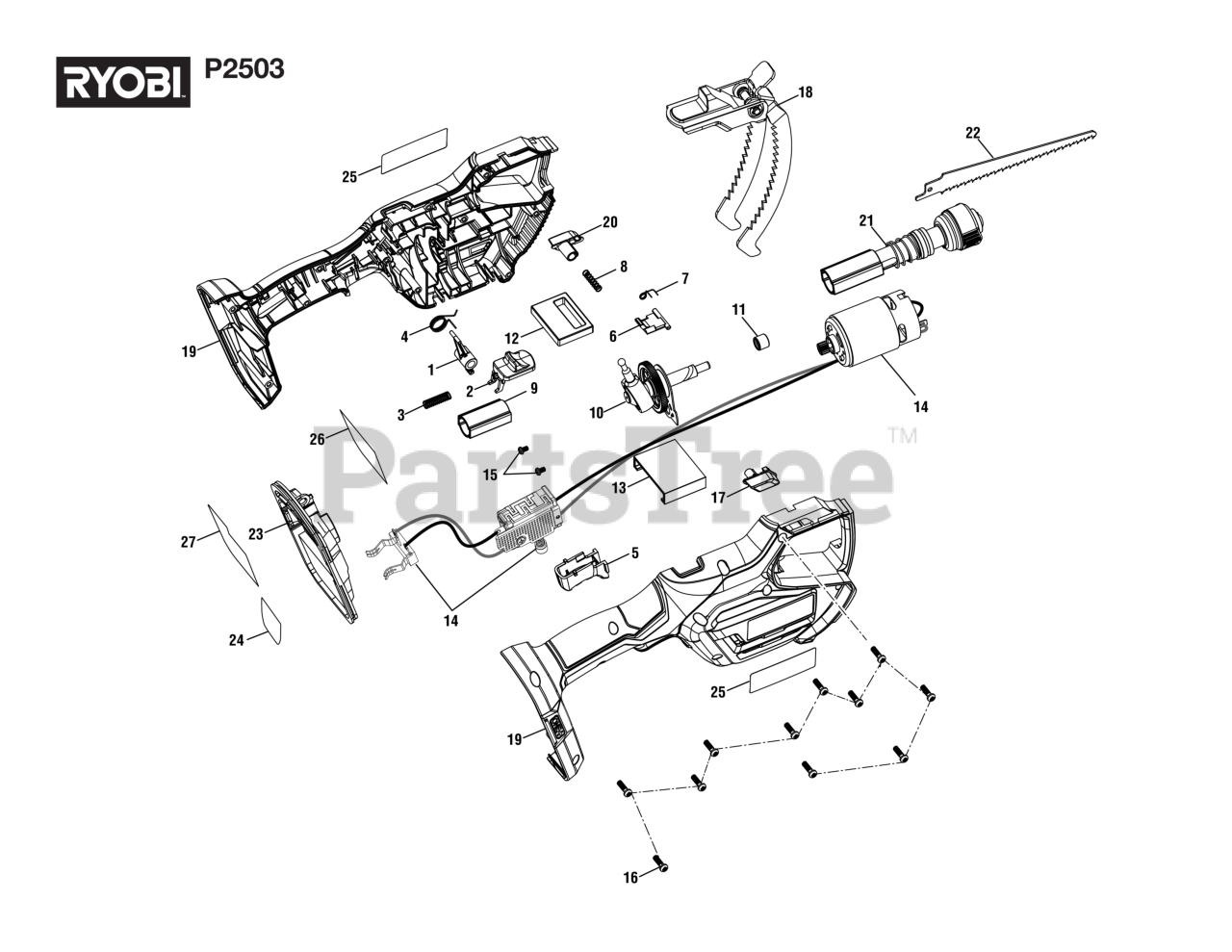

General Assembly Parts Diagram

  • Title

1

Homelite 538248001

Lock-Out Lever

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 537892001

Switch Cover

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 697957001

Safety Knob Spring

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 697958001

Safety Lever Spring

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 538249001

Trigger

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 538252001

Clamp Release Hook

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 697947001

Hook Spring

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 679073001

Compression Spring

$2.49

$

In Stock, only 1 left!

0

9

Homelite 612861005

Saw-Bar Rear Bushing

$10.99

$

Usually ships in 3-7 days

0

10

Homelite 314820001

Reciprocate Mechanism Assembly

$81.99

$

Usually ships in 3-7 days

0

11

Homelite 679978001

Needle Bearing

$2.49

$

Usually ships in 0 days

0

12

Homelite 314824001

Counter Mass and Pin Assembly

$16.99

$

Usually ships in 3-7 days

0

13

Homelite 614046001

Mass Cage

$32.99

$

Usually ships in 3-7 days

0

14

Homelite 205521001

Motor, Switch, and Battery Contact Assembly

$104.99

$

Usually ships in 3-7 days

0

15

Homelite 660211038

Screw (M3 x 5 mm, Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 660206058

Screw (M3.5 x 12 mm, Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 538251001

Clamp Release Button (Right)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 315448001

Clamp Assembly

$24.99

$

Usually ships in 3-7 days

0

19

Homelite 207003001

Housing Assembly (Inc. Key Nos. 25 & 26)

Note: (Inc. Key Nos. 25 & 26)

$16.99

$

Usually ships in 3-7 days

0

20

Homelite 538250001

Clamp Release Button (Left)

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 311444002

Saw-Bar Assembly

$76.99

$

Usually ships in 3-7 days

0

22

Homelite 682396001

Blade

$5.99

$

Usually ships in 3-7 days

0

23

Homelite 207002001

Battery Foot Assembly (Inc. Key No. 24)

Note: (Inc. Key Nos. 24 & 27)

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 941107069

Warning Label

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 941588916

Logo Label

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 941588915

Data Label/Battery Statement

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 941097029

QR Label

$2.99

$

Usually ships in 3-7 days

0

Homelite 998000534

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
