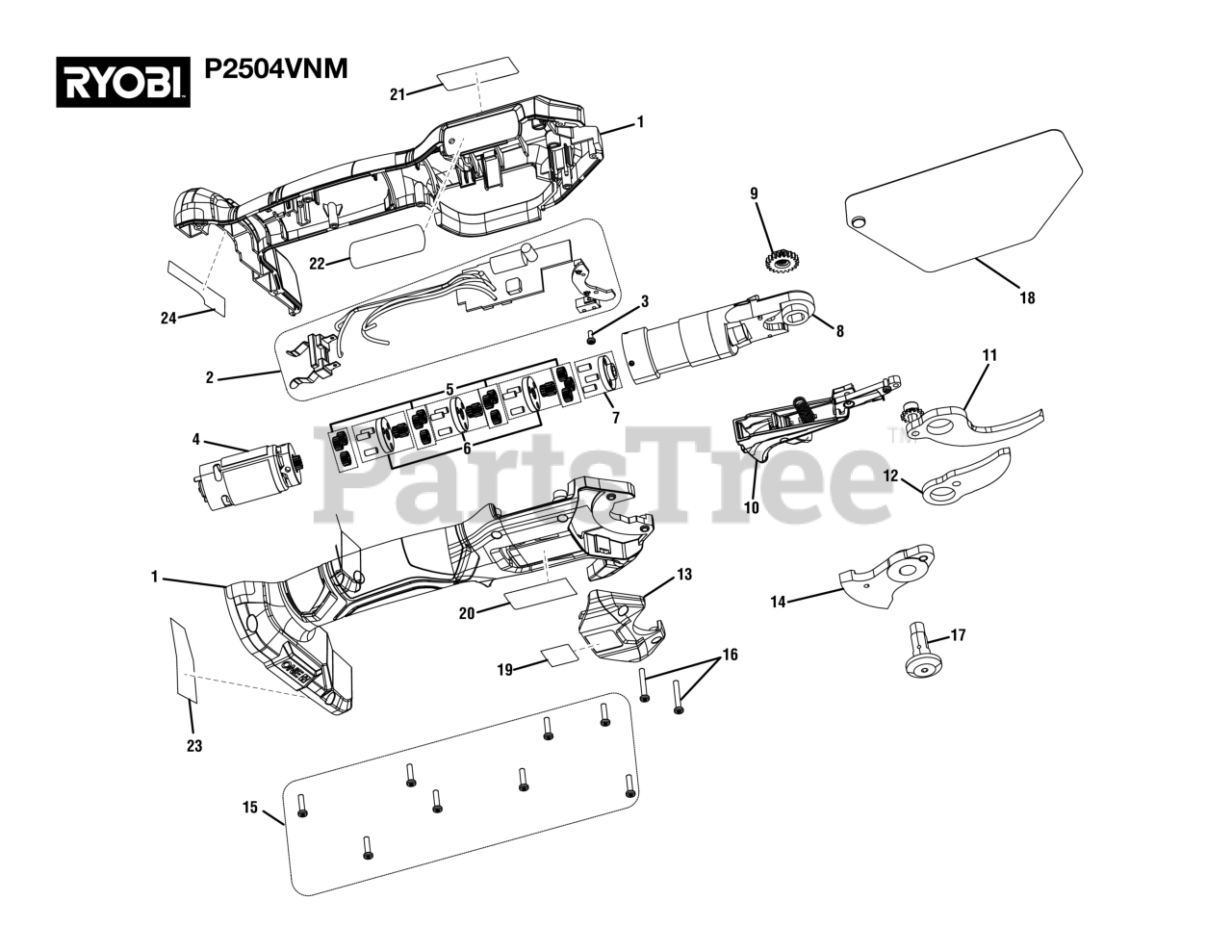

P 2504 VNM (108241010) - Ryobi 18V Pruning Shear, Rev 02 (2021-07) General Assembly Parts Diagram

18V Pruning Shear, Rev 02

General Assembly Parts Diagram

  • Title

1

Homelite 099241001049

Housing Assembly (Inc. Key Nos. 20-23)

Note: (Inc. Key Nos. 20-24)

$19.99

$

Usually ships in 0 days

0

2

Homelite 099241001050

Circuit Board Assembly

$126.99

$

Usually ships in 0 days

0

3

Homelite 099241001011

Screw (M2.5 x 8 mm)

$2.49

$

Usually ships in 0 days

0

4

Homelite 099241001056

Motor Assembly

$28.99

$

Usually ships in 0 days

0

5

Homelite 099241001037

Planet Gear

$57.99

$

Usually ships in 0 days

0

6

Homelite 099241001052

Planet Frame Assembly

$27.99

$

Usually ships in 0 days

0

7

Homelite 099241001053

Output Planet Frame Assembly

$14.99

$

Usually ships in 0 days

0

8

Homelite 099241001057

Gear Box Assembly

$104.99

$

Usually ships in 0 days

0

9

Homelite 099241001008

Screw with Gear

$2.99

$

Usually ships in 0 days

0

10

Homelite 099241001061

Trigger Assembly

$2.49

$

Usually ships in 0 days

0

11

Homelite 099241001055

Bottom Blade Assembly

$31.99

$

Usually ships in 0 days

0

12

Homelite 099241001017

Cutting Blade

$29.99

$

Usually ships in 0 days

0

13

Homelite 099241001022

Blade Cover (Inc. Key No. 19)

$2.49

$

Usually ships in 0 days

0

14

Homelite 099241001058

Bear Gear Assembly

$46.99

$

Usually ships in 0 days

0

15

Homelite 099241001033

Screw (M3 x 12 mm)

$2.49

$

Usually ships in 0 days

0

16

Homelite 099241001023

Screw (M3 x 20 mm)

$2.49

$

Usually ships in 0 days

0

17

Homelite 099241001051

Pivot Bolt Assembly

$15.99

$

Usually ships in 0 days

0

18

Homelite 099241001045

Blade Sleeve

$2.49

$

Usually ships in 0 days

0

19

Homelite 941851459

Pinch Point Icon Label

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 941851458

Icon Label

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 940705491

Logo Label

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 941851457

Warning Label

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 941110067

Data Label

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 941851461

QR Label

$2.49

$

Usually ships in 3-7 days

0

Homelite 998000629

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
