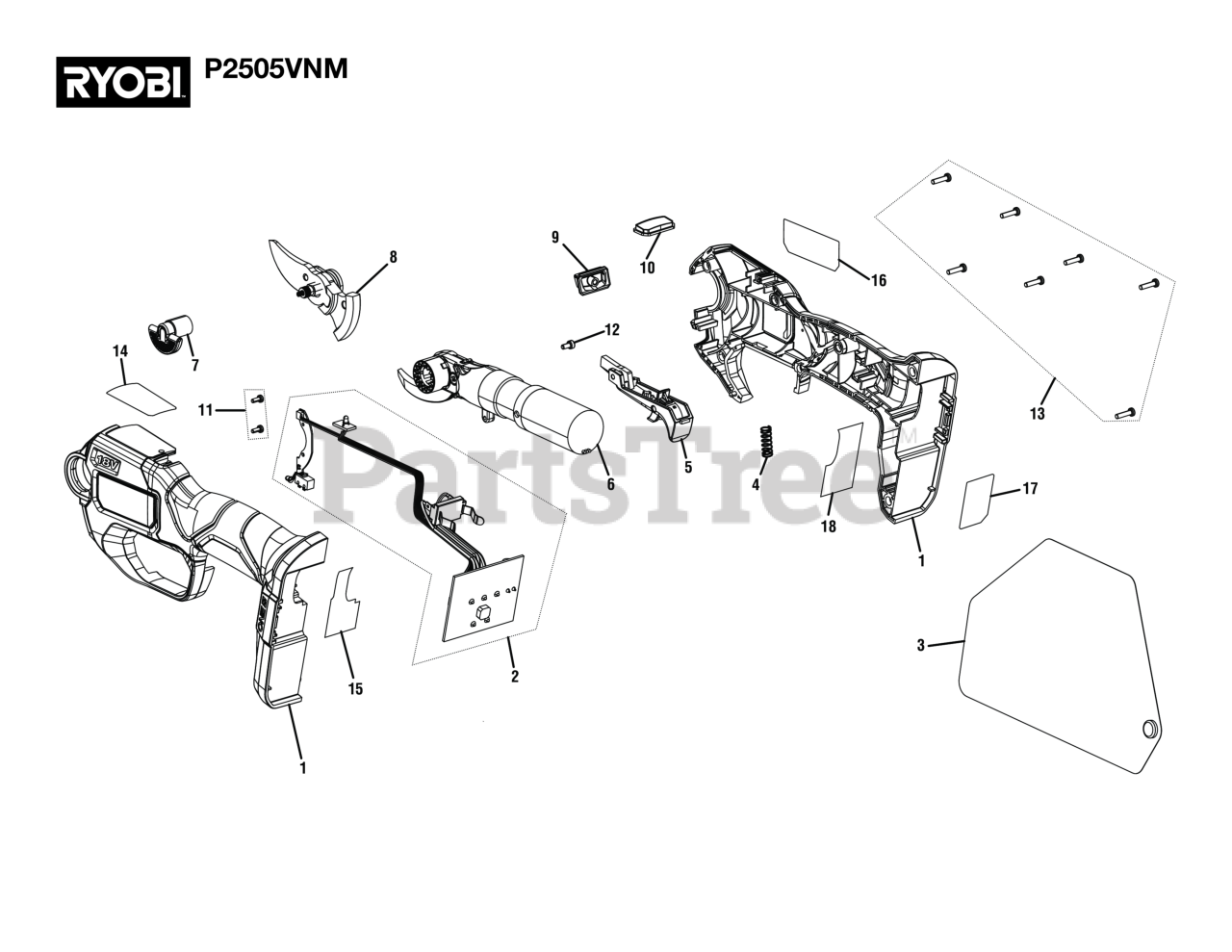

P 2505 VNM (108248012) - Ryobi 18V Pruning Shear, Rev 01 (2022-01) General Assembly Parts Diagram

18V Pruning Shear, Rev 01

General Assembly Parts Diagram

  • Title

1

Homelite 205843001

Handle Assemby (Inc. Key Nos. 14-18)

Note: (Inc. Key Nos. 14-18)

$46.99

$

Usually ships in 3-7 days

0

2

Homelite 205844001

Circuit Board Assmbly

$610.99

$

Usually ships in 0 days

0

3

Homelite 904118001

Blade Sleeve

$2.99

$

Usually ships in 3-7 days

0

4

Homelite 699837001

Spring

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 318640001

Trigger and Lock-Out Button Assembly

$2.99

$

Usually ships in 3-7 days

0

6

Homelite 210627001

Motor and Gear Box Assembly

$409.99

$

Usually ships in 0 days

0

7

Homelite 318642001

Knob Assembly

$9.49

$

Usually ships in 3-7 days

0

8

Homelite 319129001

Blade Assembly

$85.99

$

Usually ships in 3-7 days

0

9

Homelite 545634001

LED Cover

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 545635001

Logo Cover

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 661205001

Screw (M2.6 x 6 mm, T8 Torx Pan Hd.)

$

$

Currently unavailable

12

Homelite 660173005

Screw (M3 x 5 mm, Hex. Soc. Cap Hd.).

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 660203087

Screw (M3 x 12 mm)

$

$

Not available

14

Homelite 941097054

941097054

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 941110087

941110087

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 941110089

941110089

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 941110092

941110092

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 941110088

941110088

$1.49

$

Usually ships in 3-7 days

0

Homelite 998000745

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
