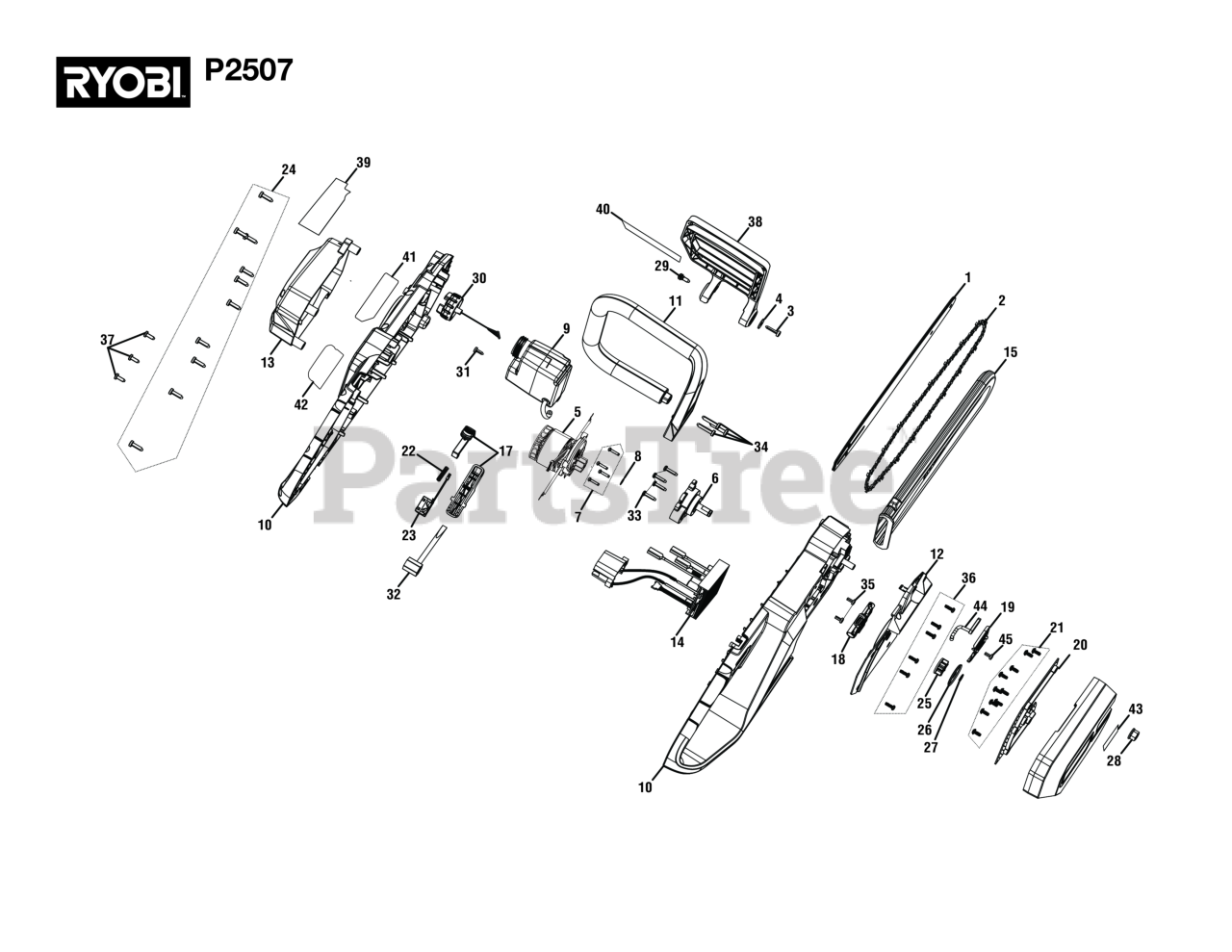

P 2507 (107758001) - Ryobi 18V Chainsaw, Rev 01 (2022-01) General Assembly Parts Diagram

18V Chainsaw, Rev 01

General Assembly Parts Diagram

  • Title

1

Homelite 318310001

12 in. Bar

$53.99

$

Usually ships in 3-7 days

0

2

Homelite 682598001

12 in. Chain

$76.99

$

Usually ships in 3-7 days

0

3

Homelite 660608005

Screw (M4 x 21 mm, T20 Torx Hd.)

$

$

Not available

4

Homelite 638988001

Washer (ID5.2 x OD16 x 1.5t)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 205682001

Motor Assembly

$92.99

$

Usually ships in 3-7 days

0

6

Homelite 312242003

Gear Box, Output Gear and Shaft Assembly

$52.99

$

Usually ships in 3-7 days

0

7

Homelite 660211020

Screw (M3 x 15 mm, Pan Hd.)

$

$

Currently unavailable

8

Homelite 670914001

Washer (M6, ID6.2 x 11OD x 0.3t)

$

$

Currently unavailable

9

Homelite 312243002

Oil Tank and Input Tube Assembly

$18.99

$

In Stock, only 1 left!

0

10

Homelite 205683001

Housing Assembly

Note: (Inc. Key No. 42)

$31.99

$

Usually ships in 3-7 days

0

11

Homelite 544887001

Front Handle

$15.99

$

Usually ships in 3-7 days

0

12

Homelite 544888001

Brake Band Cover

$4.99

$

Usually ships in 3-7 days

0

13

Homelite 205686001

Motor Cover Assembly

Note: (Inc. Key Nos. 39 & 41)

$6.99

$

Usually ships in 3-7 days

0

14

Homelite 318368001

Motor Controller and Battery Holder Assembly

$134.99

$

Usually ships in 3-7 days

0

15

Homelite 580974001

Scabbard

$13.99

$

Usually ships in 3-7 days

0

16

Homelite 205684001

Sprocket Cover Assembly

Note: (Inc. Key No. 43)

$32.99

$

Usually ships in 3-7 days

0

17

Homelite 205685001

Trigger Assembly

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 309514001

Oil Pump Assembly

$18.99

$

Usually ships in 3-7 days

0

19

Homelite 674353001

Guard Bar Plate

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 545039001

Sprocket Cover Board

$2.99

$

Usually ships in 3-7 days

0

21

Homelite 660922001

Screw (M4 x 10 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, only 4 left!

0

22

Homelite 694143001

Compression Spring (Trigger Lock)

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 760652001

Switch

$20.99

$

Usually ships in 3-7 days

0

24

Homelite 662051003

Screw (#10-14 x 18 mm, T25 Torx Hd.)

$

$

Not available

25

Homelite 615229001

Sprocket

$2.99

$

In Stock, only 2 left!

0

26

Homelite 635367001

Washer (Special)

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 636159001

E-Ring

$2.49

$

In Stock, only 2 left!

0

28

Homelite 678339003

Hex Nut (5/16-18 Flange)

$2.49

$

In Stock, only 3 left!

0

29

Homelite 662113001

Screw (M5 x 15 mm, T25 Torx Hd.)

$

$

Currently unavailable

30

Homelite 318371001

Oil Tank Cap Assembly

$12.99

$

Usually ships in 3-7 days

0

31

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$2.49

$

In Stock, only 4 left!

0

32

Homelite 612330001

Wrench

$6.99

$

Usually ships in 3-7 days

0

33

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$2.49

$

In Stock, Qty 6

0

34

Homelite 662053002

Screw (M5 x 25 mm, T25 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

35

Homelite 660610001

Screw (M4 x 9.5 mm)

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 662083002

Screw, T20, M4-18X12, Low Carbon Steel,
(Superseded to 662083001)

$2.49

$

In Stock, Qty 10

0

37

Homelite 662064002

Screw (#10-14 x .506 mm, T25 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

38

Homelite 205687001

Front Guard Assembly

Note: (Inc. Key No. 40)

$

$

Not available

39

Homelite 941588990

Danger Warning Label

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 941263116

Icon Warning Label

$2.49

$

Usually ships in 3-7 days

0

41

Homelite 941588987

QR Label

$2.49

$

Usually ships in 3-7 days

0

42

Homelite 941588988

Data Label

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 941588989

Whisper Label

$2.49

$

Usually ships in 3-7 days

0

44

Homelite 563438001

Output Oil Tube

$2.99

$

Usually ships in 3-7 days

0

45

Homelite 660608004

Screw (M4 x 12 mm, T20 Torx Hd.)

$2.49

$

Usually ships in 3-7 days

0

Homelite 998000673

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
