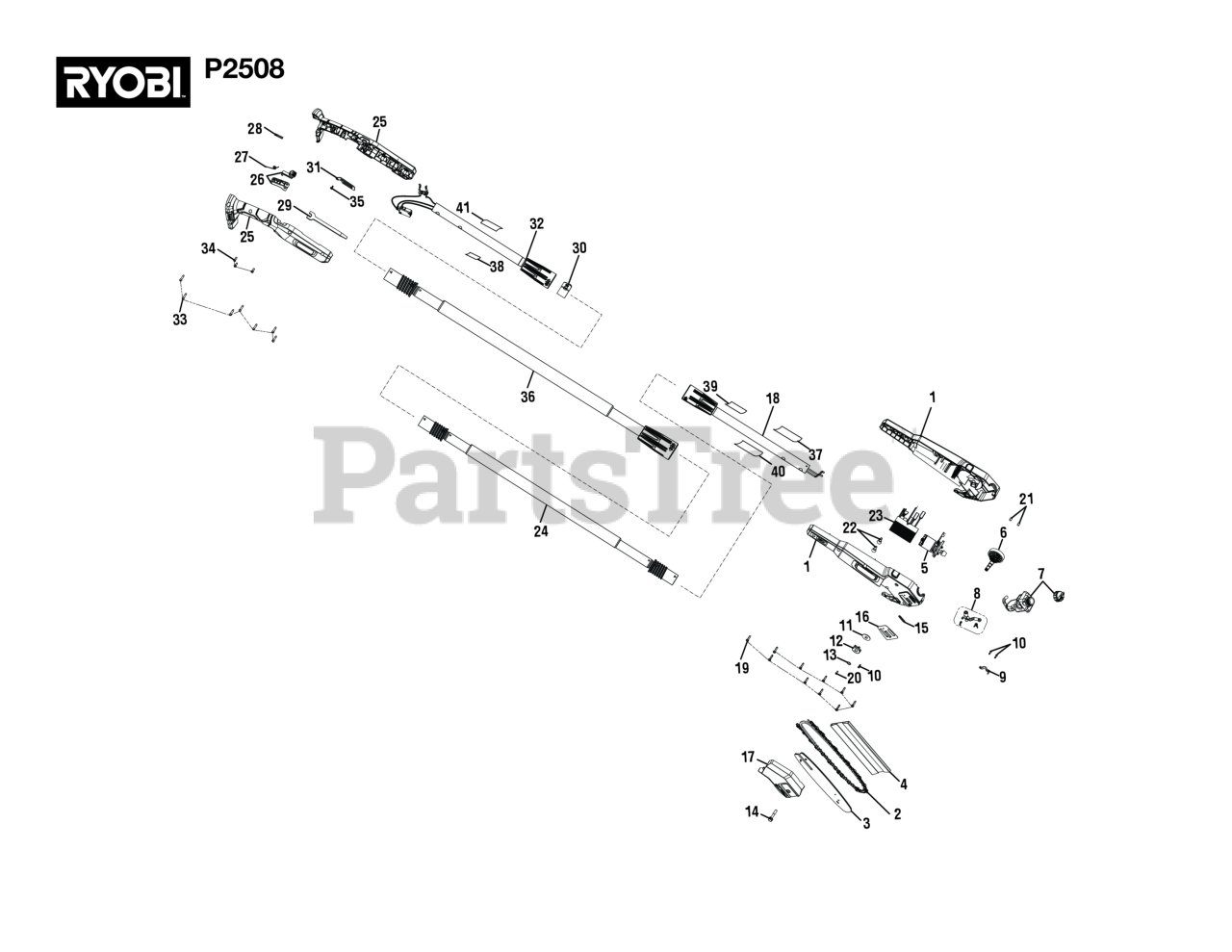

P 2508 (107717001) - Ryobi 18V Pole Saw, Rev 01 (2022-01) General Assembly Parts Diagram

18V Pole Saw, Rev 01

General Assembly Parts Diagram

  • Title

1

Homelite 205817001

Housing Assembly

$47.99

$

Usually ships in 0 days

0

2

Homelite 682502001

8 in. Saw Chain

$

$

Currently unavailable

3

Homelite 316670001

Guide Bar

$39.99

$

Usually ships in 3-7 days

0

4

Homelite 518405002

Scabbard

$

$

Currently unavailable

5

Homelite 318627001

Motor Assembly

$200.99

$

Usually ships in 3-7 days

0

6

Homelite 318716001

Output Shaft Assembly

$60.99

$

Usually ships in 0 days

0

7

Homelite 318628001

Oil Tank And Cap Assembly

$19.99

$

Usually ships in 0 days

0

8

Homelite 312524001

Oil Pump

$14.99

$

Usually ships in 3-7 days

0

9

Homelite 531003001

Pump Clamp

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 660005006

Screw (M3 x 10 mm)

$2.49

$

In Stock, Qty 5

0

11

Homelite 690733001

Cover Plate (Internal "D" Washer)

$2.49

$

In Stock, Qty 8

0

12

Homelite 610323001

Sprocket

$2.49

$

In Stock, only 3 left!

0

13

Homelite 670608002

Retaining Ring

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 663095001

Screw with Spring Washer (M6 x 35 mm)

$2.49

$

In Stock, Qty 9

0

15

Homelite 570820001

Oil Outlet Seal Ring

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 634030002

Guide Bar Plate

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 318630001

Sprocket Cover Assembly

$20.99

$

Usually ships in 3-7 days

0

18

Homelite 205816001

Upper Pole Assembly

Note: (Inc. Key Nos. 37 & 39-40)

$25.99

$

Usually ships in 0 days

0

19

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$2.49

$

In Stock, Qty 5

0

20

Homelite 660923001

Screw (M4 x 16 mm)
(Superseded to 099069001017)

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 560219003

RUBBERSEAL

$

$

Currently unavailable

22

Homelite 790021001

Wire Connector (Closed End)

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 281335012

Motor Controller

$186.99

$

Usually ships in 3-7 days

0

24

Homelite 318632001

Mandatory Boom Assembly

$49.99

$

Usually ships in 0 days

0

25

Homelite 205818001

Handle Assembly

$31.99

$

Usually ships in 0 days

0

26

Homelite 205819001

Trigger And Lock Off Assembly

$2.49

$

Usually ships in 0 days

0

27

Homelite 679031001

Trigger Spring

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 694143001

Compression Spring (Trigger Lock)

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 639255002

Wrench

$

$

Currently unavailable

30

Homelite 316769001

Clamp Assembly

$4.99

$

Usually ships in 3-7 days

0

31

Homelite 634052001

Strap Hanger

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 205820001

Lower Pole Assembly

Note: (Inc. Key Nos. 38 & 41)

$42.99

$

Usually ships in 0 days

0

33

Homelite 660024020

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 660526001

Screw (M4 x 11 mm, T20 Torx Pan Hd.)

$

$

Not available

35

Homelite 660960002

Screw (M3 x 8 mm)

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 318717001

Middle Pole Assembly

$50.99

$

Usually ships in 0 days

0

37

Homelite 941097034

Warnings Label (Spanish / French)

$2.49

$

Usually ships in 0 days

0

38

Homelite 941097035

QR Label

$2.49

$

Usually ships in 0 days

0

39

Homelite 941097036

Data Label

$

$

Currently unavailable

40

Homelite 941097040

Whisper Logo Label

$2.49

$

Usually ships in 0 days

0

41

Homelite 941588713

Danger Icon Warning Label

$2.49

$

Usually ships in 0 days

0

Homelite 998000770

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
