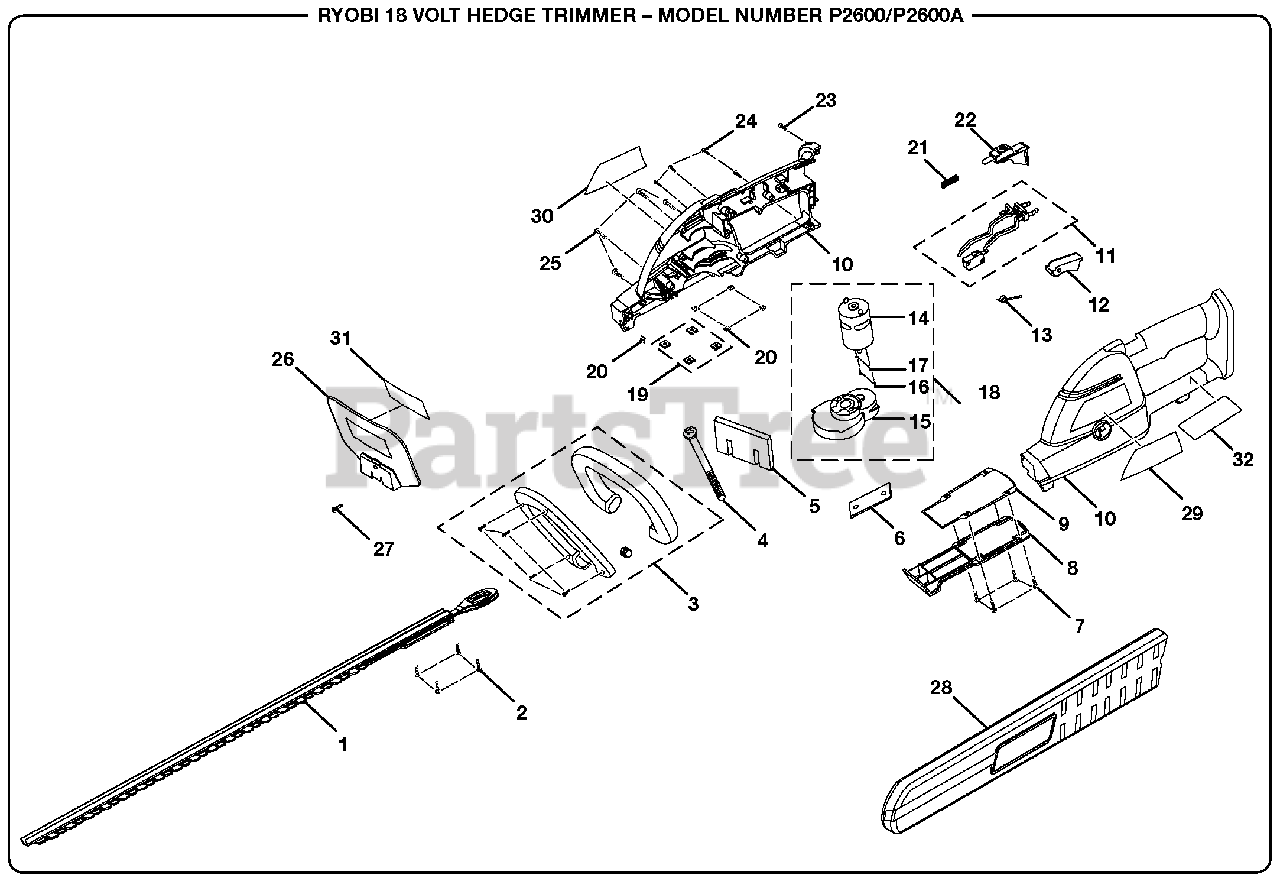

P 2600 A - Ryobi 18V Hedge Trimmer General Assembly Parts Diagram

18V Hedge Trimmer

General Assembly Parts Diagram

  • Title

1

Homelite 3013214

CUTTER BLADE ASSEMBLY

$

$

Not available

2

Homelite 6613702

SCREW (M4 X 16 mm)

Note: Purchase locally

$

$

Not available

3

Homelite 200073006

HANDLE ASSEMBLY

$

$

Currently unavailable

4

Homelite 660131001

SCREW (M4 X 100 mm)

Note: Purchase locally

$1.06

$

Usually ships in 3-7 days

0

5

Homelite 560190011

SPONGE SEAL

$

$

Not available

6

Homelite 6940501

BAR PLATE

$

$

Not available

7

Homelite 6613701

SCREW (M4 X 12 mm)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 520058008

BLADE COVER

$3.08

$

Usually ships in 3-7 days

0

9

Homelite 590188001

RUBBER SEAL

$1.06

$

Usually ships in 3-7 days

0

10

Homelite 200208008

HOUSING ASSEMBLY

$13.20

$

Usually ships in 3-7 days

0

11

Homelite 270011079

SWITCH ASSEMBLY

$

$

Not available

12

Homelite 5205506

TRIGGER

$

$

Not available

13

Homelite 6794201

TRIGGER SPRING

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 2303335

MOTOR ASSEMBLY

$

$

Not available

15

Homelite 301705001

GEAR TRAIN ASSEMBLY

$20.62

$

Usually ships in 3-7 days

0

16

Homelite 660137001

SCREW (M4 X 12 mm)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 670704001

RETAINING RING (EXTERNAL)

$1.49

$

In Stock, only 2 left!

0

18

Homelite 210010041

MOTOR & GEAR TRAIN ASSEMBLY (INC. KEY NOS. 14-17)

$

$

Not available

19

Homelite 660561001

SQUARE NUT (M4 X 15 X 10.9)

Note: Purchase locally

$1.06

$

Usually ships in 3-7 days

0

20

Homelite 660126001

SQUARE NUT (M4 X 2.2 mm)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 6791801

COMPRESSION SPRING

$

$

Not available

22

Homelite 5205604

TRIGGER LOCK

$

$

Not available

23

Homelite 6620801

SCREW (M4 X 12 mm)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 6620805

SCREW (M4 X 16 mm PAN HD.)
(Superseded to 660208052)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 6620803

SCREW (M4 X 22 mm PAN HD,)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 590141003

BLADE GUARD

$3.46

$

Usually ships in 3-7 days

0

27

Homelite 6603301

SCREW (M4 X 12 mm)

Note: Purchase locally

$

$

Not available

28

Homelite 520059002

BLADE COVER

$4.99

$

Usually ships in 3-7 days

0

29

Homelite 940263159

LOGO LABEL

$1.06

$

Usually ships in 3-7 days

0

30

Homelite 940303260

DATA LABEL

Note: (P2600)

$1.06

$

Usually ships in 3-7 days

0

Homelite 940304478

DATA LABEL

Note: (P2600A)

$

$

Currently unavailable

31

Homelite 940077084

BLADE GUARD LABEL

$1.06

$

Usually ships in 3-7 days

0

32

Homelite 960059101

HANG TAG

$1.06

$

Usually ships in 3-7 days

0
