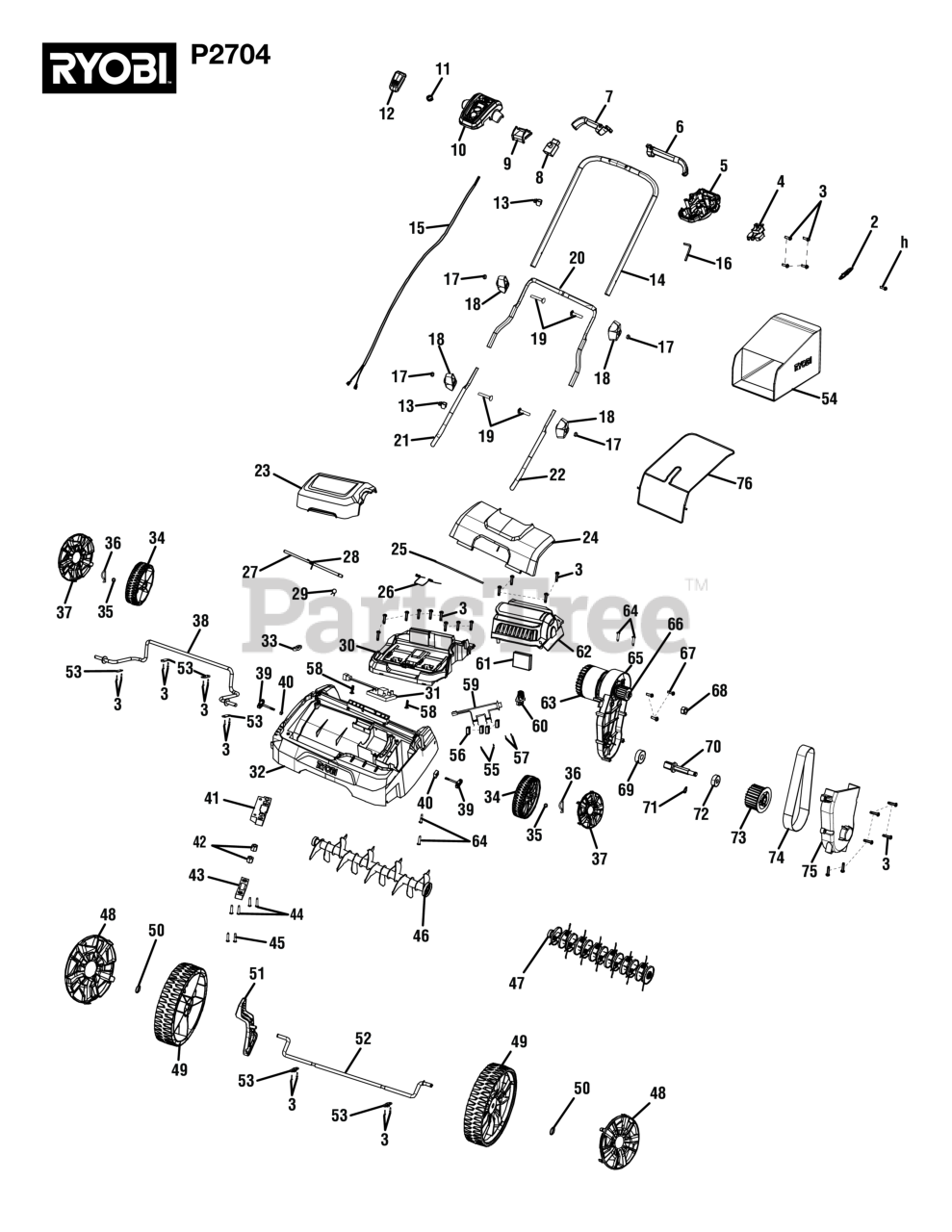

P 2704 (108953001) - Ryobi 14" Dethatcher, Rev 01 (2022-02) General Assembly Parts Diagram

14" Dethatcher, Rev 01

General Assembly Parts Diagram

  • Title

1

Homelite 099228001019

Screw (ST4.2 x 12 mm)

$2.49

$

Usually ships in 0 days

0

2

Homelite 099228001071

Plug Cover

$2.49

$

Usually ships in 0 days

0

3

Homelite 099228001020

Screw (ST4.2 x 15 mm)

$2.49

$

Usually ships in 0 days

0

4

Homelite 099228001072

Switch Middle Plate

$8.49

$

Usually ships in 0 days

0

5

Homelite 099228001073

Switch Bottom Cover

$10.99

$

Usually ships in 0 days

0

6

Homelite 099228001075

Right Trigger

$3.49

$

Usually ships in 0 days

0

7

Homelite 099228001076

Left Trigger

$3.49

$

Usually ships in 0 days

0

8

Homelite 099228001077

Electronic Switch

$8.49

$

Usually ships in 0 days

0

9

Homelite 099228001078

Waterproof Cover

$2.49

$

Usually ships in 0 days

0

10

Homelite 099228001074

Switch Top Cover

$12.99

$

Usually ships in 0 days

0

11

Homelite 099228001079

Switch Spring

$2.49

$

Usually ships in 0 days

0

12

Homelite 099228001080

Lock-Out

$2.49

$

Usually ships in 0 days

0

13

Homelite 099228001081

Wire Clamp

$2.49

$

Usually ships in 0 days

0

14

Homelite 099228001021

Top Handle

$54.99

$

Usually ships in 0 days

0

15

Homelite 099228001022

Wire Component

$12.99

$

Usually ships in 0 days

0

16

Homelite 099228001023

Wrench (45#)

$2.49

$

Usually ships in 0 days

0

17

Homelite 099228001024

Nut (M6)

$2.49

$

Usually ships in 0 days

0

18

Homelite 099228001025

Rotary Knob

$2.99

$

Usually ships in 0 days

0

19

Homelite 099228001026

Screw (M6)

$2.49

$

Usually ships in 0 days

0

20

Homelite 099228001027

Middle Handle

$50.99

$

Usually ships in 0 days

0

21

Homelite 099228001028

Right Bottom Handle

$30.99

$

Usually ships in 0 days

0

22

Homelite 099228001029

Left Bottom Handle

$30.99

$

Usually ships in 0 days

0

23

Homelite 099228001005

Battery Cover

$26.99

$

Usually ships in 0 days

0

24

Homelite 099228001006

Rear Door

$21.99

$

Usually ships in 0 days

0

25

Homelite 099228001030

Rear Door Axle

$4.49

$

Usually ships in 0 days

0

26

Homelite 099228001031

Rear Door Spring

$2.49

$

Usually ships in 0 days

0

27

Homelite 099228001032

Battery Cover Axle

$2.49

$

Usually ships in 0 days

0

28

Homelite 099228001033

Battery Cover Spring

$2.49

$

Usually ships in 0 days

0

29

Homelite 099228001034

Spring Ring

$2.49

$

Usually ships in 0 days

0

30

Homelite 099228001002

Top Cover

$33.99

$

Usually ships in 0 days

0

31

Homelite 099228001035

Circuit Board Assembly

$185.99

$

Usually ships in 0 days

0

32

Homelite 099253001006

Deck

$85.99

$

Usually ships in 0 days

0

33

Homelite 099228001036

Wire Plate

$4.49

$

Usually ships in 0 days

0

34

Homelite 099228001082

Front Wheel

$12.99

$

Usually ships in 0 days

0

35

Homelite 099749024033

Flat Washers (ID8 x OD16 x 1.6t)

$2.49

$

Usually ships in 0 days

0

36

Homelite 099749024060

Butterfly Pin

$2.49

$

Usually ships in 0 days

0

37

Homelite 099228001083

Front Wheel Cover

$6.49

$

Usually ships in 0 days

0

38

Homelite 099253001007

Front Wheel Axle

$51.99

$

Usually ships in 0 days

0

39

Homelite 099228001084

Rotary Knob

$3.49

$

Usually ships in 0 days

0

40

Homelite 099228001040

Nut (M5)

$2.49

$

Usually ships in 0 days

0

41

Homelite 099228001012

Press Blade Shaft Base

$3.99

$

Usually ships in 3-7 days

0

42

Homelite 099228001041

Screw (M6 x 9.2 mm)

$2.49

$

Usually ships in 3-7 days

0

43

Homelite 099228001013

Press Blade Shaft Cover

$2.49

$

Usually ships in 3-7 days

0

44

Homelite 099228001042

Screw (ST4.2 x 1.8 mm)

$2.49

$

Usually ships in 3-7 days

0

45

Homelite 099228001043

Screw (M6 x 20 mm)

$2.49

$

In Stock, only 1 left!

0

46

Homelite 099228001044

Dethatcher Blade

$76.99

$

In Stock, only 1 left!

0

47

Homelite 099253001005

Aerator Roller

$78.99

$

Usually ships in 3-7 days

0

48

Homelite 099228001085

Rear Wheel Cover

$5.99

$

Usually ships in 0 days

0

49

Homelite 099228001086

Rear Wheel

$11.99

$

Usually ships in 0 days

0

50

Homelite 099288001037

Bearing Holder

$8.99

$

Usually ships in 0 days

0

51

Homelite 099228001007

Height Adjustment Lever

$4.49

$

Usually ships in 0 days

0

52

Homelite 099228001045

Rear Wheel Axle

$28.99

$

Usually ships in 0 days

0

53

Homelite 099228001087

Press Plate

$2.49

$

Usually ships in 0 days

0

54

Homelite 099228001064

Bag

$52.99

$

Usually ships in 0 days

0

55

Homelite 099228001020

Screw (ST4.2 x 15 mm)

$2.49

$

Usually ships in 0 days

0

56

Homelite 099228001048

Rubber Pad

$2.49

$

Usually ships in 0 days

0

57

Homelite 099228001049

Screw (ST3 x 12 mm)

$2.49

$

Usually ships in 0 days

0

58

Homelite 099228001050

Screw (ST4 x 12.5 mm)

$2.49

$

Usually ships in 0 days

0

59

Homelite 099228001051

Wiring Component

$31.99

$

Usually ships in 0 days

0

60

Homelite 099228001052

Key

$4.49

$

Usually ships in 0 days

0

61

Homelite 099228001053

Foam

$4.49

$

Usually ships in 0 days

0

62

Homelite 099253001001

Battery Cover

$25.99

$

Usually ships in 0 days

0

63

Homelite 099228001054

Motor

$469.99

$

Usually ships in 0 days

0

64

Homelite 099228001055

Screw (ST4.8 x 18 mm)

$2.49

$

Usually ships in 0 days

0

65

Homelite 099228001010

Pulley Casing

$8.49

$

Usually ships in 0 days

0

66

Homelite 099228001016

Big Belt Pulley

$26.99

$

Usually ships in 0 days

0

67

Homelite 099228001056

Nut (M6)

$2.49

$

Usually ships in 0 days

0

68

Homelite 099228001057

Nut (M8)

$2.49

$

Usually ships in 0 days

0

69

Homelite 099228001058

Bearing (6000RS)

$5.49

$

Usually ships in 0 days

0

70

Homelite 099228001059

Axle

$8.99

$

Usually ships in 0 days

0

71

Homelite 099228001060

O-Ring

$2.49

$

Usually ships in 0 days

0

72

Homelite 099228001061

Bearing (608RS)

$5.49

$

Usually ships in 0 days

0

73

Homelite 099228001015

Synchronous Pulley

$26.99

$

Usually ships in 0 days

0

74

Homelite 099228001062

Belt

$5.49

$

Usually ships in 0 days

0

75

Homelite 099228001011

Pulley Cover

$9.49

$

Usually ships in 0 days

0

76

Homelite 099253001008

Grass Catcher Frame

$45.99

$

Usually ships in 0 days

0

Homelite 998000452

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
