P 2804 (107370001) - Ryobi 18V Backpack Sprayer, Rev 04 (2018-07) General Assembly Parts Diagram

18V Backpack Sprayer, Rev 04

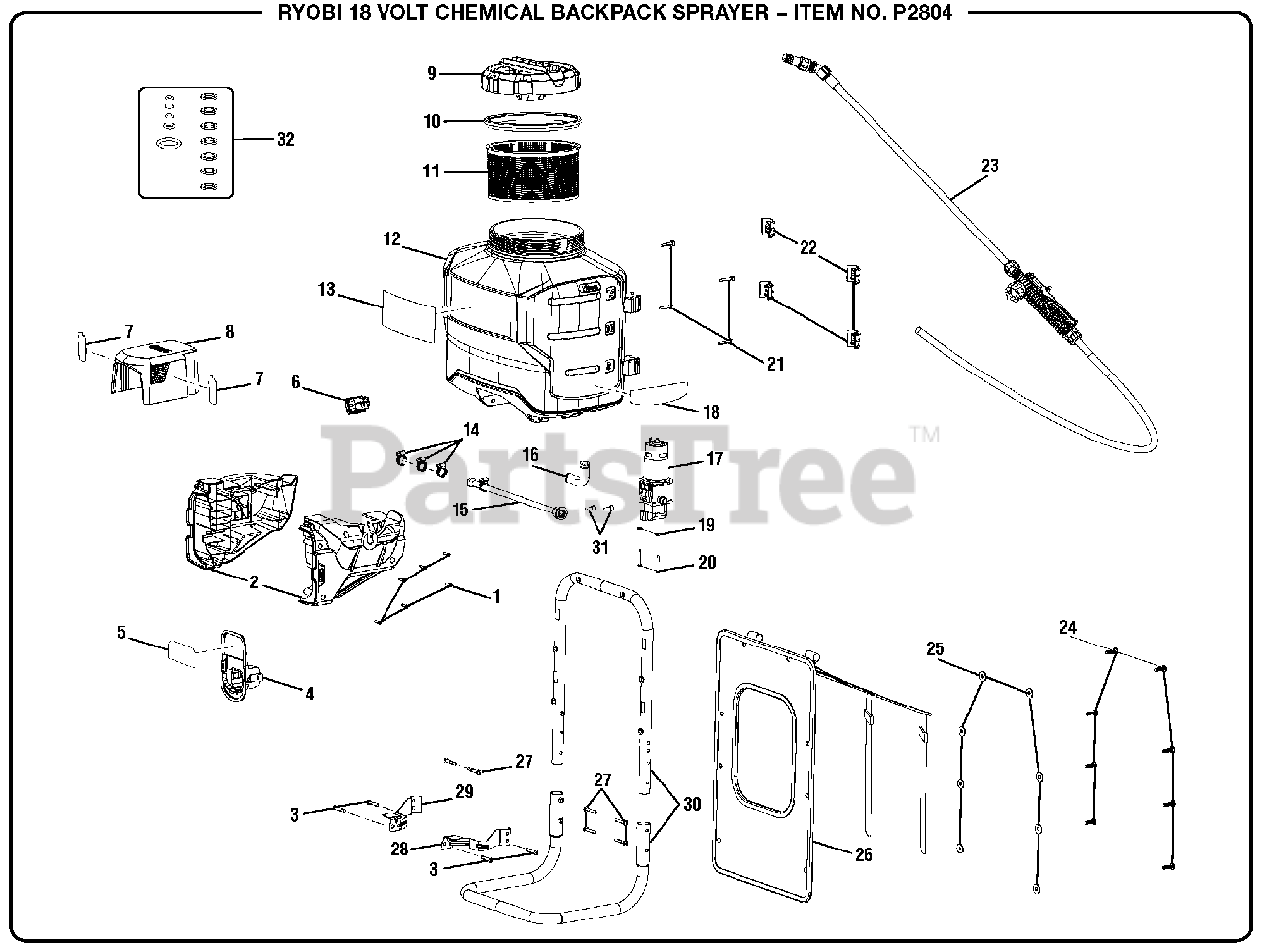

General Assembly Parts Diagram

  • Title

1

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.)

$

$

Not available

2

Homelite 313699001

Sprayer Housing Assembly

$18.99

$

Usually ships in 3-7 days

0

3

Homelite 662053002

Screw (M5 x 25 mm, T25 Torx Pan Hd.)

$

$

Not available

4

Homelite 313697001

Battery Foot

Note: (Inc. Key No. 5)

$4.99

$

Usually ships in 3-7 days

0

5

Homelite 941087013

Data Label

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 760609002

Switch

$

$

Not available

7

Homelite 941087009

Lithium Label

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 313698001

Battery Cover Assembly

Note: (Inc. Key No. 7)

$

$

Not available

9

Homelite 313529002

Tank Lid Assembly

$5.49

$

Usually ships in 3-7 days

0

10

Homelite 564626001

Rubber Gasket
(Superseded to 564626002)

$5.99

$

In Stock, Qty 5

0

11

Homelite 313531001

Filter and Seal Assembly

Note: (Inc. Key No. 10)

$7.49

$

Usually ships in 3-7 days

0

12

Homelite 313696001

Tank Assembly

Note: (Inc. Key Nos. 13, 18 and 21-22)

$

$

Not available

13

Homelite 941087008

Front Logo Label

$1.49

$

Usually ships in 3-7 days

0

14

Homelite T643220002

Hose Clamp

$1.49

$

In Stock, only 2 left!

0

15

Homelite 313434001

Filter and Tube Assembly

$5.99

$

In Stock, Qty 10

0

16

Homelite 564910001

Elbow Tube (OD16 x ID10)

$1.49

$

In Stock, Qty 19

0

17

Homelite 313700001

Motor and Pump Assembly

$74.99

$

Usually ships in 3-7 days

0

18

Homelite 941087011

Warning Icon Label

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 690969001

Washer (ID4.2 x OD10 x 1t)

$1.49

$

In Stock, Qty 5

0

20

Homelite 660208104

Screw (M4 x 30 mm, T15 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 660613001

Screw w/Washer (M5 x 25.4 mm, T25 Pan Hd. T.F.)

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 534235001

Tank Holder

$1.49

$

In Stock, only 1 left!

0

23

Homelite 313503001

Trigger Handle Assembly

$

$

Not available

24

Homelite 660481019

Screw (M6 x 20 mm, Pan Hd.)

$1.49

$

In Stock, Qty 5

0

25

Homelite 678587001

Washer (ID6.8 x OD16 x 1.5t)

$1.49

$

In Stock, Qty 5

0

26

Homelite 313502001

Backpack Harness

$43.99

$

Usually ships in 3-7 days

0

27

Homelite 661863001

Screw (M5 x 30, T20 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 673796001

Bottom Right Bracket

$3.99

$

Usually ships in 3-7 days

0

29

Homelite 673797001

Bottom Left Bracket

$3.49

$

Usually ships in 3-7 days

0

30

Homelite 313543001

Frame Assembly

Note: (Inc. Key Nos. 27-29)

$29.99

$

Usually ships in 3-7 days

0

31

Homelite 790009004

Wire Connector

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 120756001

Seals For Life O-Ring Kit (See Page 4)

$2.49

$

Usually ships in 3-7 days

0

Homelite 995000354

Operator's Manual (961087023)

Note: Not Shown

$

$

Not available
