P 2807 VNM (107657101) - Ryobi 18V Electrostatic Sprayer, Rev 06 (2021-06) General Assembly Parts Diagram

18V Electrostatic Sprayer, Rev 06

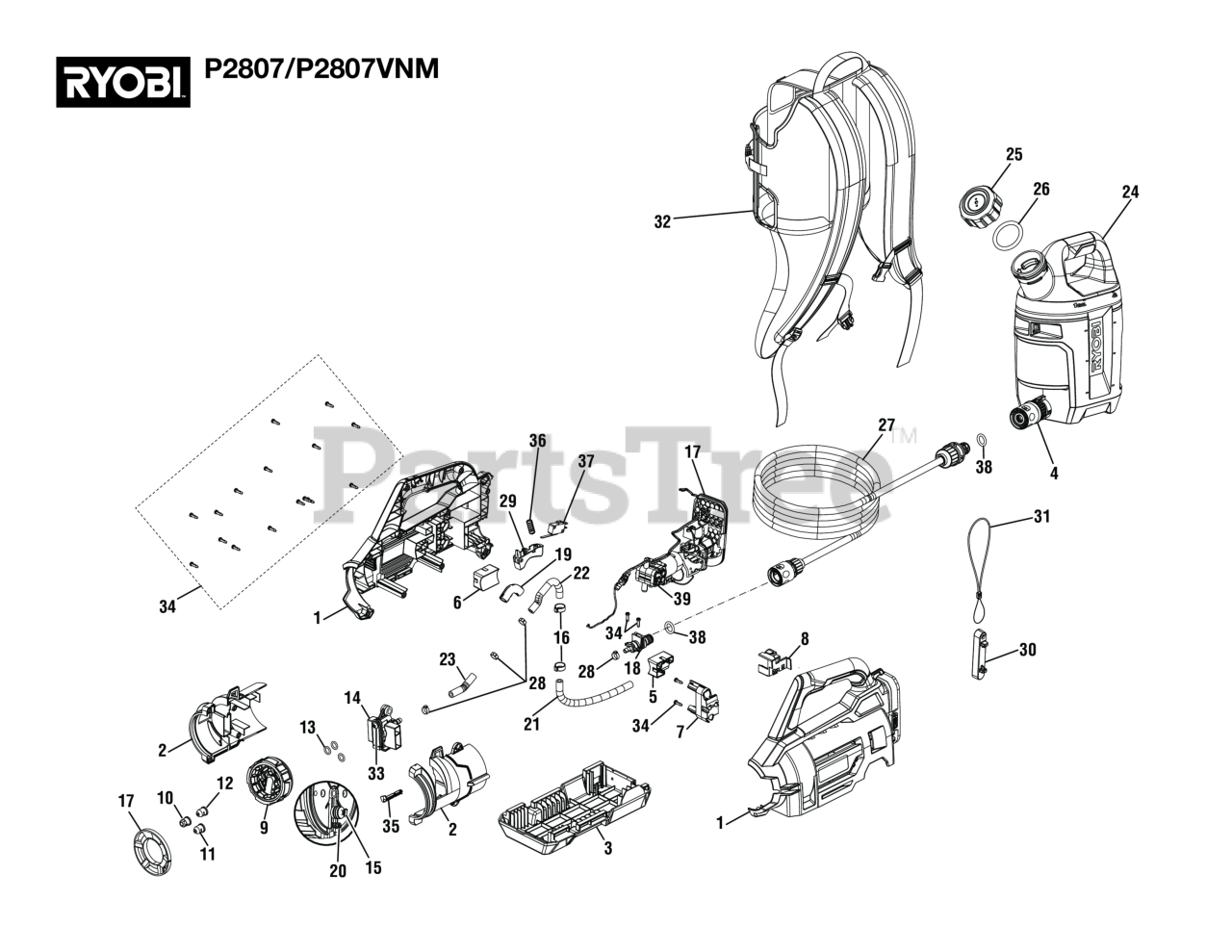

General Assembly Parts Diagram

  • Title

1

Homelite 316975001

Housing Assembly (Inc. Labels)

$30.99

$

Usually ships in 3-7 days

0

2

Homelite 316979001

Outlet Tube Assembly (Inc. Label)

$10.99

$

Usually ships in 3-7 days

0

3

Homelite 316977001

Bottom Plate Assembly (Inc. Label)

$10.99

$

Usually ships in 3-7 days

0

4

Homelite 330273002

Shut-off Valve

$3.49

$

Usually ships in 3-7 days

0

5

Homelite 565823001

Left Motor Support

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 565825001

Right Motor Support

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 542126001

Base for Pump

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 542118001

Base

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 316983001

Nozzle Dial Assembly (Inc. Labels)

$37.99

$

Usually ships in 3-7 days

0

10

Homelite 316981001

Low Spray Nozzle Assembly

Note: (Inc. 1 Key No. 13 & Label)

$20.99

$

Usually ships in 3-7 days

0

11

Homelite 316980001

Medium Spray Nozzle Assembly

Note: (Inc. 1 Key No. 13 & Label)

$50.99

$

Usually ships in 3-7 days

0

12

Homelite 316982001

High Spray Nozzle Assembly

Note: (Inc. 1 Key No. 13 & Label)

$20.99

$

Usually ships in 3-7 days

0

13

Homelite 565945001

O-Ring

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 317030001

Nozzle Body Assembly

Note: (Inc. Key Nos. 15, 20 & 33)

$32.99

$

Usually ships in 3-7 days

0

15

Homelite 317027001

Piston Seal Assembly

$5.99

$

Usually ships in 3-7 days

0

16

Homelite 635294005

Clamp

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 318291001

Motor & Battery Foot Assembly

Note: (Inc. Key Nos. 37, 39 & Label)

$

$

Currently unavailable

18

Homelite 316906001

Male Quick Connect

Note: (Inc. 1 Key No. 38)

$3.49

$

Usually ships in 3-7 days

0

19

Homelite 317028001

Pipe Shroud Assembly

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 317029001

Ball and Spring Assembly

$1.49

$

In Stock, Qty 5

0

21

Homelite 535412001

Tube (Pump Inlet)

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 535412002

Tube (Pump Outlet)

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 535412003

Tube (Barb Nozzle)

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 316976001

Tank Assembly

Note: (Inc. Key Nos. 4 & 25-26)

$30.99

$

Usually ships in 3-7 days

0

25

Homelite 536075002

Tank Cap

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 565857001

O-Ring

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 317097001

Hose Assembly

Note: (Inc. 1 Key No. 38)

$13.99

$

Usually ships in 3-7 days

0

28

Homelite 699050001

Clamp

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 529209004

Switch Trigger

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 542326001

Nozzle Wrench

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 903073001

Cord

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 903646004

Tank Holster

$70.99

$

Usually ships in 3-7 days

0

33

Homelite 663087001

Screw (M5)

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$

$

Not available

35

Homelite 542335001

Wire Cover

$1.49

$

Usually ships in 3-7 days

0

36

Homelite 679002002

Compression Spring

$1.49

$

Usually ships in 3-7 days

0

37

Homelite 760034006

Switch

$3.99

$

Usually ships in 3-7 days

0

38

Homelite 570742189

O-Ring (ID11.3 x CS2.5)

$1.49

$

In Stock, only 1 left!

0

39

Homelite 316796001

Motor & Pump Assembly

$

$

Not available

Homelite 998000296

Operator's Manual

Note: Not Shown

$

$

Currently unavailable

Homelite 900333008

Cable Tie

Note: Not Shown

$1.49

$

Usually ships in 3-7 days

0

Homelite 316973001

3-N-1 Nozzle Assembly

Note: Not Shown | (Inc. Key Nos. 9-13)

$128.99

$

Usually ships in 3-7 days

0
