P 325 - Electrolux/AYP Blower (2010-04) HOUSING Parts Diagram

Blower

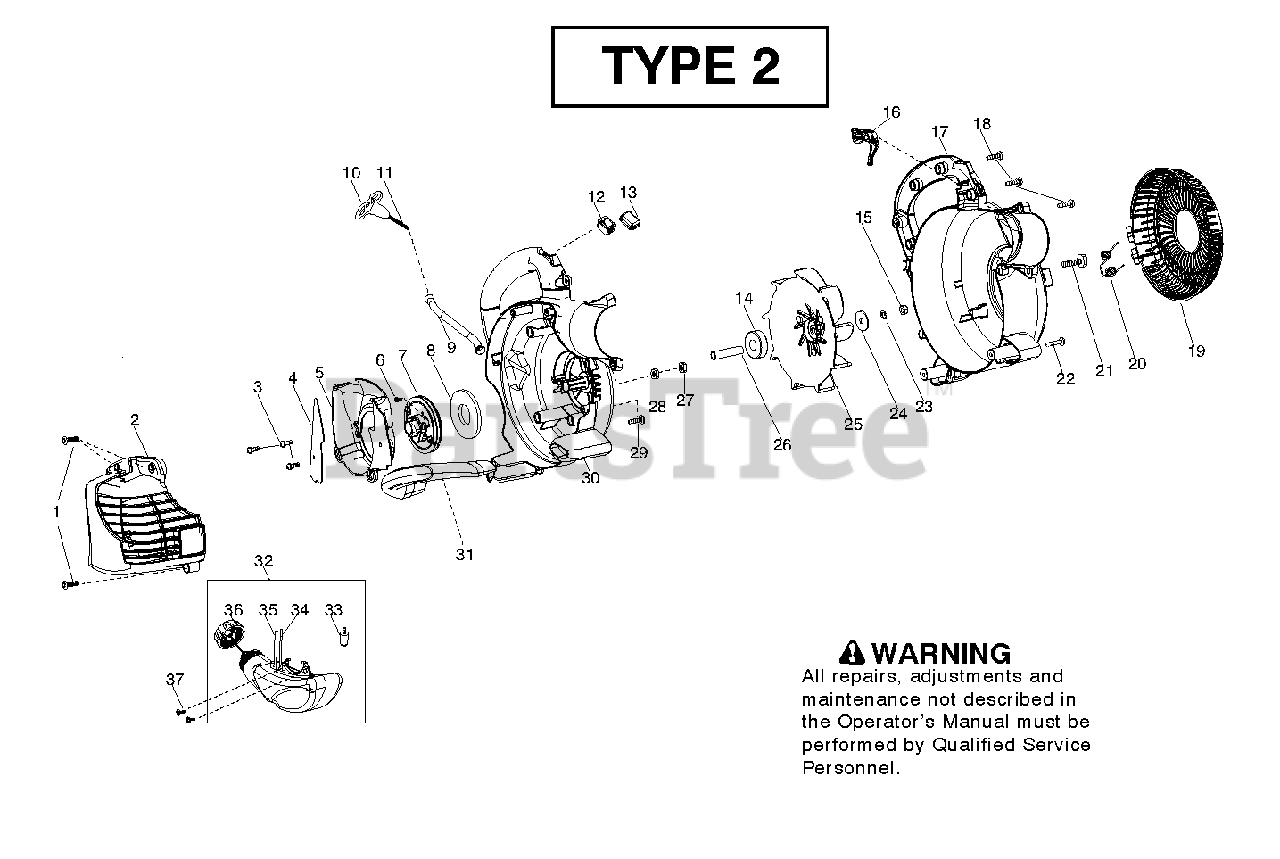

HOUSING Parts Diagram

  • Title

1

Electrolux/AYP 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

2

Electrolux/AYP 545135806

ASSY COVER ENGINE

$15.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 530015880

SCREW

$4.99

$

In Stock, Qty 8

0

4

Electrolux/AYP 545134001

SHIELD BAFFLE

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 545099101

BAFFLE

$9.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 530016391

SCREW SEMS TOOTHED WASHER

$2.23

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 545081852

KIT STARTER PULLEY

$17.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 545213601

KIT STARTER SPRING
(Superseded to 545008011)

$9.99

$

In Stock, Qty 11

0

9

Electrolux/AYP 545107101

TUBE STARTER ROPE

$8.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530054834

HANDLE STARTER BLK

$4.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 545081833

KIT ROPE

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 545081830

KIT SWITCH

Note: (Incl 13)

$8.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 545128201

PROTECTOR, SWITCH

$4.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 545099001

HUB

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 530626605

NUT

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 545113803

TRIGGER THROTTLE RED

$9.99

$

In Stock, only 1 left!

0

17

Electrolux/AYP 545134103

COVER

Note: (Incl 19 20)

$

$

Not available

18

Electrolux/AYP 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

19

Electrolux/AYP 545100801

DOOR VAC BLACK

$12.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 545115601

SPRING VAC DOOR

$4.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 545003502

SCREW

$3.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 530016406

SCREW #10 PLASTITE 1.362

$6.49

$

In Stock, only 1 left!

0

23

Electrolux/AYP 530092322

LOCK WASHER

$3.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 545109901

WASHER, IMPELLER

$3.99

$

In Stock, only 2 left!

0

25

Electrolux/AYP 545113601

ASSY IMPELLAR HUB
(Superseded to 580780901)

$8.99

$

In Stock, Qty 12

0

26

Electrolux/AYP 545113701

SPACER FLYWHEEL

$4.99

$

In Stock, only 1 left!

0

27

Electrolux/AYP 530015515

LOCKNUT

$4.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 530015197

NUT

$6.49

$

In Stock, Qty 5

0

29

Electrolux/AYP 530016386

SCREW

$10.99

$

In Stock, Qty 9

0

30

Electrolux/AYP 545161604

ASSY SCROLL RIGHT
(Superseded to 545100903)

Note: (Incl 14)

$46.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 545101201

HANDLE VAC BLACK

$12.99

$

In Stock, only 3 left!

0

32

Electrolux/AYP 545100401

Fuel Tank Assembly, Non Low Perm St
(Superseded to 578943308)

Note: (Incl 33 34 35 36)

$24.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 530095646

FUEL PICK-UP ASSY

$4.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 530069247

KIT-LINE

$6.49

$

In Stock, Qty 20+

0

35

Electrolux/AYP 530069216

LINE KIT

$6.49

$

In Stock, Qty 20+

0

36

Electrolux/AYP 530057973

ASSY FUEL CAP W/RETAINER
(Superseded to 578931605)

$7.99

$

In Stock, only 1 left!

0

37

Electrolux/AYP 530016445

SCREW FUEL TANK RETAINER

$6.49

$

In Stock, Qty 6

0
