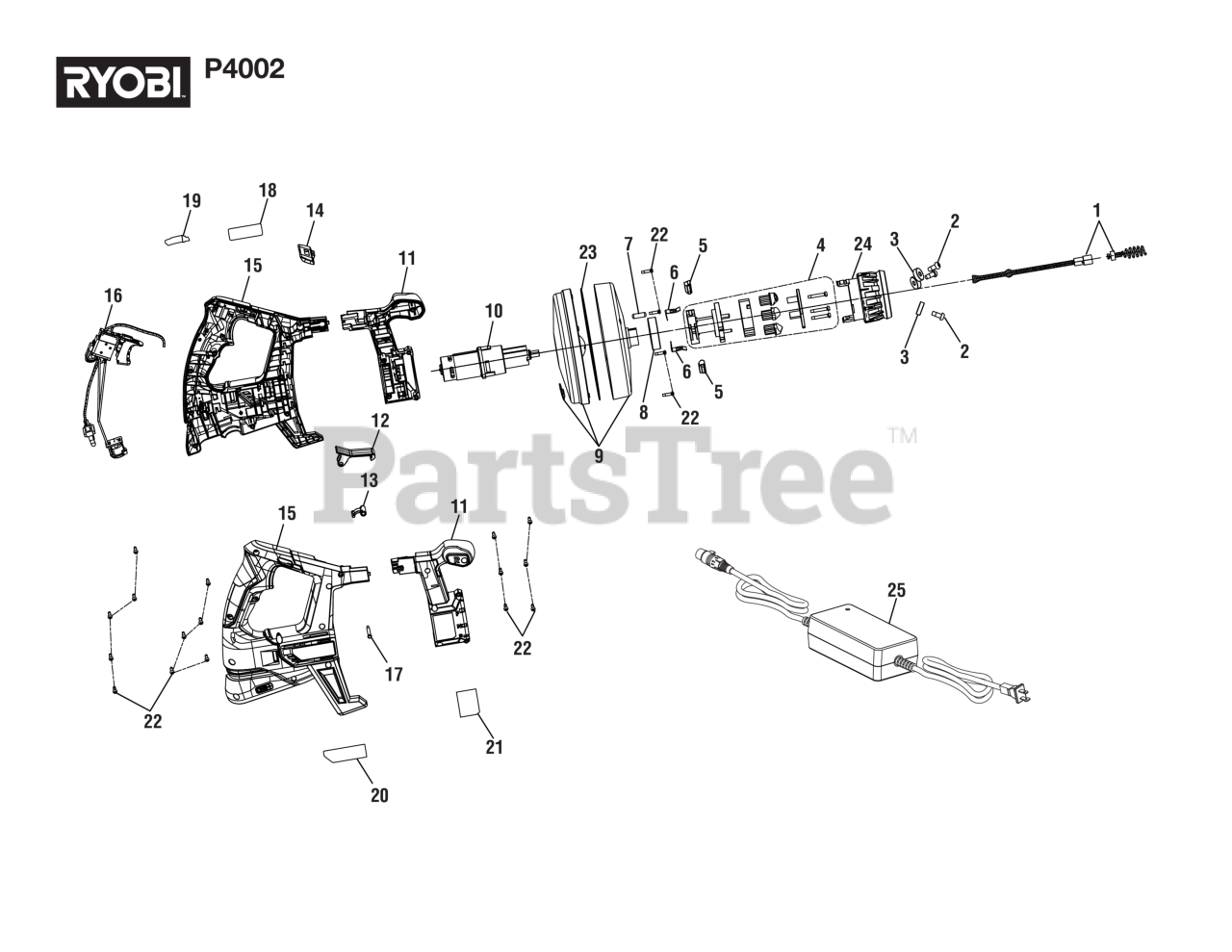

P 4002 - Ryobi 18V Drain Auger, Rev 03 (2022-02) General Assembly Parts Diagram

18V Drain Auger, Rev 03

General Assembly Parts Diagram

  • Title

1

Homelite 313387002

Snake Cable (Auger) w/Removable Tip

$53.99

$

Usually ships in 3-7 days

0

2

Homelite 662690001

Screw (M6 x 14 mm)

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 681400001

Ball Bearing (6262RS)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 204847001

Direction Control Assembly

$6.99

$

Usually ships in 3-7 days

0

5

Homelite 531595001

Slide Block

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 636773001

Lock Spring Plate

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 564596001

Rubber Bumper

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 682014001

Ball Bearing (6005 2Z)

$3.99

$

Usually ships in 3-7 days

0

9

Homelite 204846001

Drum Assembly

Note: (Incl. Key No. 23)

$12.99

$

Usually ships in 3-7 days

0

10

Homelite 206700001

Motor and Gear Train Assembly

Note: China

$30.99

$

Usually ships in 3-7 days

0

10

Homelite 206700010

Motor and Gear Train Assembly

Note: Vietnam

$39.99

$

Usually ships in 3-7 days

0

11

Homelite 204845001

Front Handle Assembly

Note: (Incl. Key No. 21)

$7.99

$

Usually ships in 3-7 days

0

12

Homelite 533878001

Latch

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 533879001

Spool

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 533877002

Forward/Reverse Button

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 204843001

Housing Assembly

Note: (Incl. Key Nos. 18-20) | China

$18.99

$

Usually ships in 3-7 days

0

15

Homelite 204843016

Housing Assembly

Note: (Incl. Key Nos. 18-20) | Vietnam

$16.99

$

Usually ships in 3-7 days

0

16

Homelite 204844001

Variable Speed Switch Assembly

$23.99

$

Usually ships in 3-7 days

0

17

Homelite 662695001

Screw (M3 x 33 mm, T15 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 940114178

Logo Label

$

$

Currently unavailable

19

Homelite 941007071

Lithium Label

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 941121905

Data Label

Note: China

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 941122847

Data Label

Note: Vietnam

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 941120335

Warning Label

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 660031012

Screw (M3.5 x 14 mm, T10 Tox Pan Hd.)

$

$

Currently unavailable

23

Homelite 563915001

O-Ring

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 351591001

Feed Direction Selector Collar

$2.99

$

Usually ships in 3-7 days

0

25

Homelite 720409001

Power Supply Cord

$71.99

$

Usually ships in 3-7 days

0

Homelite 995000294

Operator's Manual (P4002)

Note: Not Shown

$

$

Not available

Homelite 995000295

Operator's Manual (P4002PS)

Note: Not Shown

$

$

Not available
