P 4018 WT (952802036) - Poulan Chainsaw (2012-01) CHASSIS BAR HANDLE Parts Diagram

Chainsaw

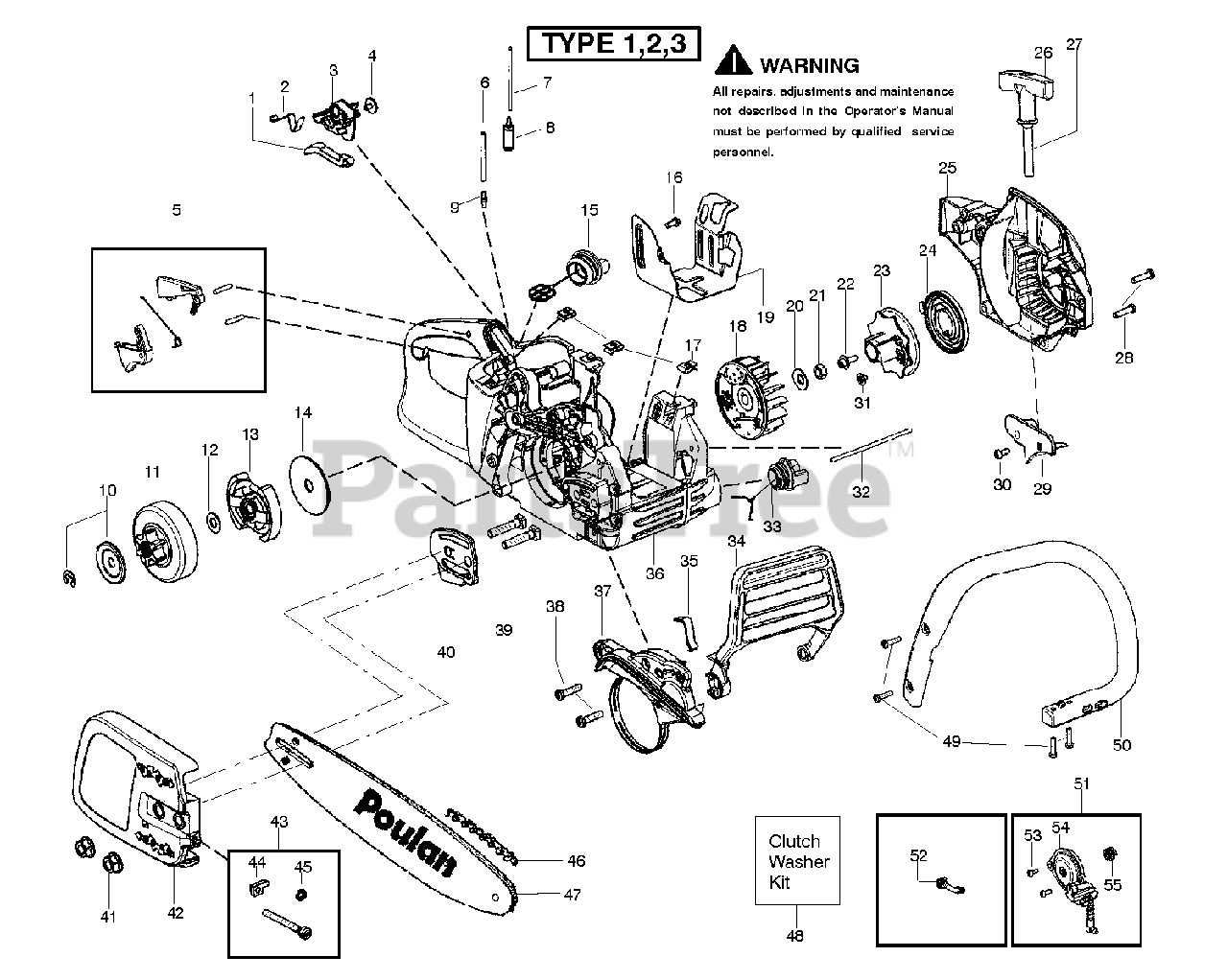

CHASSIS BAR HANDLE Parts Diagram

  • Title

1

Poulan 530057893

KNOB CHOKE

$4.99

$

Usually ships in 3-10 days

0

2

Poulan 530057908

SPRING IGNITION SWITCH

$3.49

$

In Stock, Qty 5

0

3

Poulan 530057891

LEVER IGNITION SWITCH

$

$

Not available

4

Poulan 530016080

SCREW

$3.49

$

In Stock, only 3 left!

0

5

Poulan 530071888

KIT TRIG AND LOCKOUT

$

$

Not available

6

Poulan 530069216

LINE KIT

Note: LARGE

$13.99

$

In Stock, Qty 20+

0

7

Poulan 530069247

KIT-LINE

Note: SMALL

$2.49

$

In Stock, Qty 20+

0

8

Poulan 530095649

ASSY FUEL PICK UP W/LINE
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

9

Poulan 530023877

FUEL LINE FITTING

$5.99

$

In Stock, Qty 20+

0

10

Poulan 530071945

KIT SAS CLUTCH WASHER

$5.99

$

In Stock, Qty 20+

0

11

Poulan 530057905

ASSY CLUTCH DRUM 3/8
(Superseded to 501628301)

$20.99

$

In Stock, Qty 20+

0

12

Poulan 530071945

KIT SAS CLUTCH WASHER

$5.99

$

In Stock, Qty 20+

0

13

Poulan 530057907

ASSY CLUTCH

$13.99

$

In Stock, Qty 20+

0

14

Poulan 530016419

WASHER CLUTCH LARGE

$5.99

$

In Stock, Qty 14

0

15

Poulan 577858501

FUEL CAP ASSY W/RET
(Superseded to 580940901)

$7.99

$

In Stock, Qty 6

0

16

Poulan 530016064

SCREW

$3.49

$

In Stock, Qty 20+

0

17

Poulan 530015922

CLIP

$3.49

$

In Stock, only 2 left!

0

18

Poulan 530057937

ASSY FLYWHEEL
(Superseded to 530071905)

$

$

Not available

19

Poulan 530057911

SHIELD HEAT

$

$

Not available

20

Poulan 530015127

WASHER-FLYWHEEL

$3.49

$

In Stock, only 4 left!

0

21

Poulan 530016134

NUT-FLYWHEEL

$3.49

$

In Stock, Qty 8

0

22

Poulan 530015920

SCREW

$3.49

$

In Stock, Qty 6

0

23

Poulan 530057890

STARTER PULLEY

$7.99

$

In Stock, only 2 left!

0

24

Poulan 530042095

SPRING STARTER
(Superseded to 545008013)

$6.99

$

In Stock, Qty 7

0

25

Poulan 579372501

KIT FAN HSG PURPLE

Note: . 29 30

$

$

Not available

26

Poulan 530056402

HANDLE STARTER

$4.99

$

Usually ships in 3-10 days

0

27

Poulan 530069232

KIT-ROPE

$5.99

$

In Stock, only 2 left!

0

28

Poulan 530016432

SCREW M5.38-14X22.225MM

$3.49

$

In Stock, only 3 left!

0

29

Poulan 578152201

BAFFLE FAN HOUSING

$3.49

$

Usually ships in 3-10 days

0

30

Poulan 545227101

SCREW 6-19X.437

$3.49

$

In Stock, Qty 20+

0

31

Poulan 530016080

SCREW

$3.49

$

In Stock, only 3 left!

0

32

Poulan 530058786

ASSEMBLY-OIL-VENT

$4.99

$

In Stock, only 2 left!

0

33

Poulan 530057236

OIL TANK CAP

$

$

Not available

34

Poulan 530057897

HANDGUARD
(Superseded to 585600501)

$5.99

$

In Stock, Qty 8

0

35

Poulan 530016416

SPRING HANDGUARD

$3.49

$

In Stock, only 2 left!

0

36

Poulan 577862401

ASSEMBLY CHASSIS GREEN EVAP

Note: . 6 15 33 39

$

$

Not available

37

Poulan 530071893

KIT CHAIN BRAKE

$22.99

$

In Stock, Qty 6

0

38

Poulan 530016432

SCREW M5.38-14X22.225MM

$3.49

$

In Stock, only 3 left!

0

39

Poulan 530016133

BOLT

$4.99

$

In Stock, Qty 10

0

40

Poulan 530057910

PLATE BAR MOUNTING

$5.99

$

In Stock, Qty 9

0

41

Poulan 530015917

BAR NUT

$3.49

$

In Stock, Qty 20+

0

42

Poulan 530058939

ASSY CLUTCH COVER PURPLE

Note: . 43

$

$

Not available

43

Poulan 530069611

RETAINER

Note: . 44 45

$9.49

$

In Stock, only 1 left!

0

44

Poulan 530015826

ADJUST PIN,BAR 36/41

$5.99

$

In Stock, Qty 5

0

45

Poulan 530038593

RETAINER

$3.49

$

In Stock, Qty 12

0

46

Poulan 952051338

CHAIN 18" 91VJ 62DL 3/8 .050
(Superseded to 581562301)

$29.99

$

In Stock, only 4 left!

0

47

Poulan 952044418

BAR 18"

$

$

Not available

48

Poulan 530071945

KIT SAS CLUTCH WASHER

Note: . 10 12

$5.99

$

In Stock, Qty 20+

0

49

Poulan 530016432

SCREW M5.38-14X22.225MM

$3.49

$

In Stock, only 3 left!

0

50

Poulan 530057888

HANDLE FRONT

$17.99

$

Usually ships in 3-10 days

0

51

Poulan 530071891

KIT OIL PUMP

Note: . 53 54 55

$28.99

$

In Stock, only 2 left!

0

52

Poulan 530057924

ASSY PICK UP OIL TANK

$4.99

$

In Stock, Qty 6

0

53

Poulan 545227101

SCREW 6-19X.437

$3.49

$

In Stock, Qty 20+

0

54

Poulan 530057931

ASSY OIL PUMP
(Superseded to 581071401)

$22.99

$

In Stock, only 4 left!

0

55

Poulan 530037820

WORM GEAR

$5.99

$

In Stock, Qty 10

0
