P 418 (11A-702A100) - Cub Cadet Walk-Behind Mower Engine (1997) Base & Internal Parts Parts Diagram

Walk-Behind Mower Engine

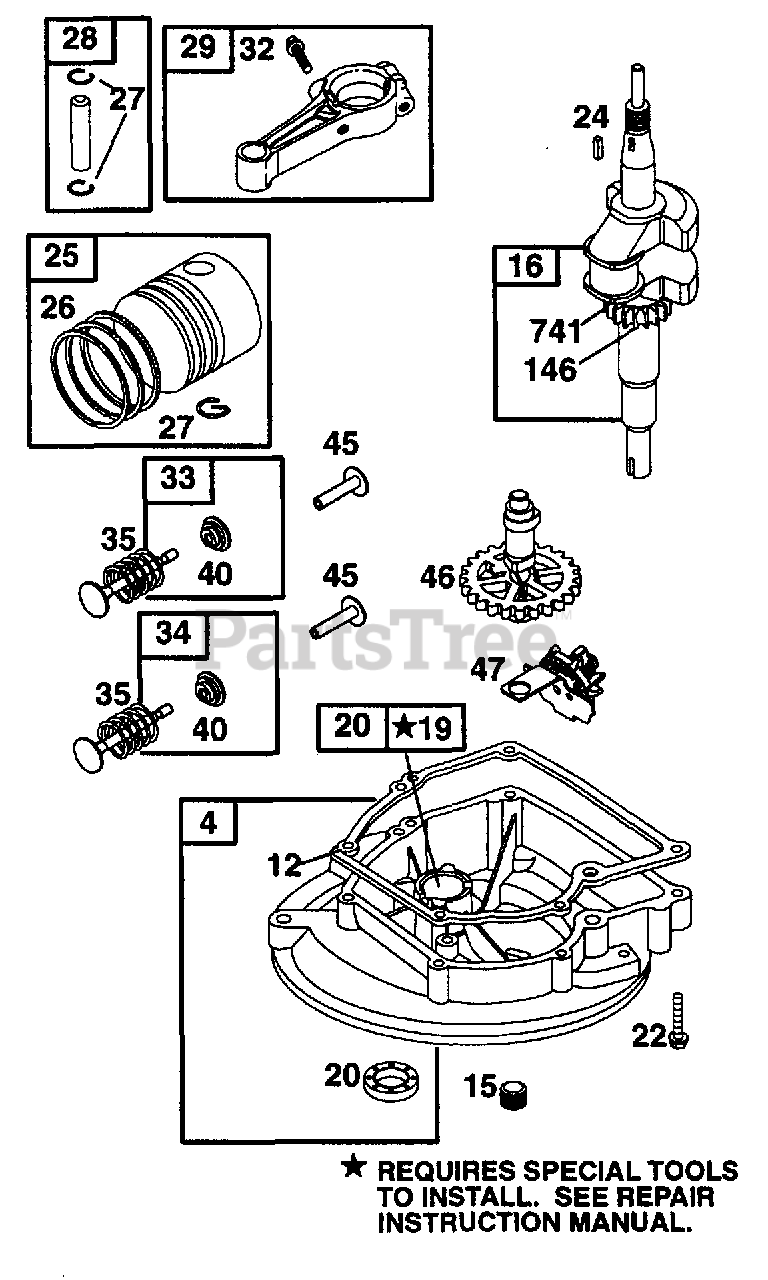

Base & Internal Parts Parts Diagram

  • Title

4

Cub Cadet BS-395384

Sump-Engine

$

$

Not available

12

Cub Cadet BS-270833

Gasket-Crankcase
(Superseded to BS-692218)

Note: (.015" Thick, Std)

$

$

Not available

Cub Cadet BS-270895

Gasket-Crankcase

Note: (.005" Thick)

$9.99

$

In Stock, only 1 left!

0

Cub Cadet BS-270896

Gasket-Crankcase

Note: (.009" Thick)

$5.99

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-94720

Plug-Oil Drain
(Superseded to BS-691680)

$5.99

$

In Stock, only 3 left!

0

16

Cub Cadet BS-492748

Crankshaft

$172.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-293709

Bushing

$11.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-391483

Seal-Oil
(Superseded to BS-391483S)

$5.99

$

In Stock, Qty 9

0

22

Cub Cadet BS-94682

Screw-Hex Head

$

$

Not available

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-498668

Piston Assy (Std)

$

$

Not available

Cub Cadet BS-498669

Piston Assy

Note: (.010" O.S.)

$54.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-498670

Piston Assy

Note: (.020" O.S.)

$

$

Not available

Cub Cadet BS-498671

Piston Assy

Note: (.030" O.S.)

$53.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-498680

Ring Set (Std)

$35.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-498681

Ring Set

Note: (.010" O.S.)

$26.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-498682

Ring Set

Note: (.020" O.S.)

$42.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-498683

Ring Set

Note: (.030" O.S.)

$21.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-26026

Lock-Piston Pin

$

$

Not available

28

Cub Cadet BS-298909

Pin-Piston (Std)

$8.99

$

In Stock, only 4 left!

0

29

Cub Cadet BS-294201

Rod-Connecting (Std)

$

$

Not available

Cub Cadet BS-296079

Rod-Connecting

Note: (.005" O.S.)

$18.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-94699

Screw-Connecting Rod

$

$

Not available

33

Cub Cadet BS-296676

Valve-Exhaust

$23.99

$

In Stock, only 3 left!

0

34

Cub Cadet BS-296677

Valve-Intake

$24.99

$

In Stock, only 4 left!

0

35

Cub Cadet BS-260552

Spring- Valve

$5.49

$

In Stock, Qty 9

0

40

Cub Cadet BS-93312

Retainer-Spring
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 18

0

45

Cub Cadet BS-230173

Tappet-Valve

$

$

Not available

46

Cub Cadet BS-493747

Gear-Cam

$

$

Not available

47

Cub Cadet BS-491688

Slinger-Oil

$

$

Not available

146

Cub Cadet BS-499047

Pin-Crankshaft

$4.99

$

Usually ships in 2-12 days

0

741

Cub Cadet BS-261533

Gear-Timing

$

$

Not available
