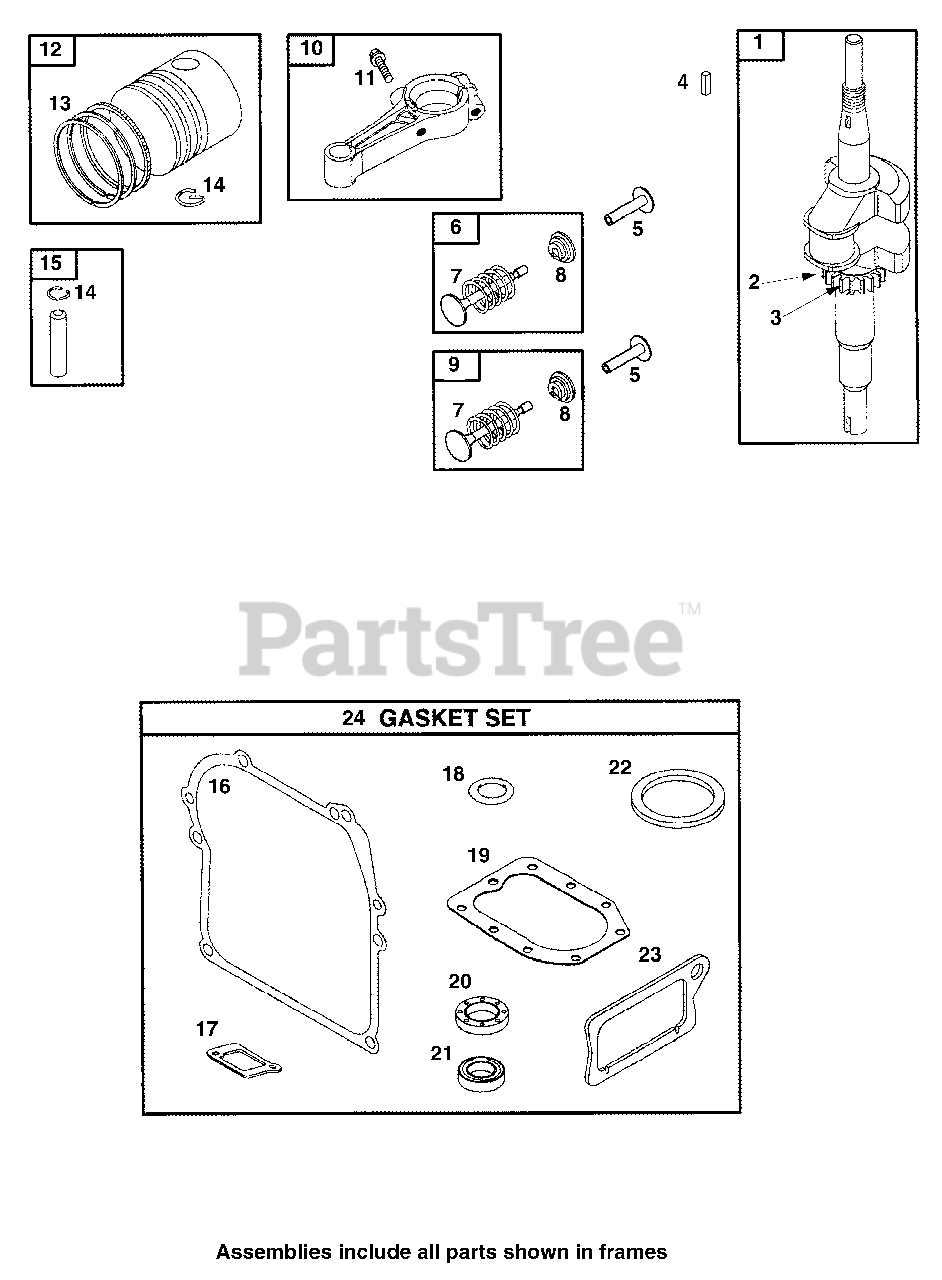

P 418 (11A-702A100) - Cub Cadet Walk-Behind Mower Engine (1998) Engine External Parts Diagram

Walk-Behind Mower Engine

Engine External Parts Diagram

  • Title

1

Cub Cadet BS-499016

Crankshaft

$

$

Not available

2

Cub Cadet BS-261533

Timing Gear

$

$

Not available

3

Cub Cadet BS-499047

Timing Pin

$

$

Not available

4

Cub Cadet BS-222698

Flywheel Key
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

5

Cub Cadet BS-230173

Valve Tappet

$

$

Not available

6

Cub Cadet BS-296677

Intake Valve

$26.99

$

In Stock, only 2 left!

0

7

Cub Cadet BS-260552

Valve Spring

$5.99

$

In Stock, only 2 left!

0

8

Cub Cadet BS-93312

Valve Retainer
(Superseded to BS-692194)

$6.49

$

In Stock, Qty 12

0

9

Cub Cadet BS-296676

Exhaust Valve

$25.99

$

In Stock, only 2 left!

0

10

Cub Cadet BS-294201

Connecting Rod

$

$

Not available

11

Cub Cadet BS-94699

Connecting Rod Screw

$

$

Not available

12

Cub Cadet BS-498668

Piston Assembly

$

$

Not available

13

Cub Cadet BS-498680

Ring Set (Standard)

$

$

Not available

14

Cub Cadet BS-26026

Piston Pin Lock

$

$

Not available

15

Cub Cadet BS-298909

Piston Pin (Standard)

$9.99

$

In Stock, only 2 left!

0

16

Cub Cadet BS-270833

Crankcase Gasket
(Superseded to BS-692218)

$

$

Not available

17

Cub Cadet BS-270345

Intake Gasket

$

$

Not available

18

Cub Cadet BS-271485

O-Ring Seal

$

$

Not available

19

Cub Cadet BS-272536

Cylinder Head Gasket

$

$

Not available

20

Cub Cadet BS-391483

Oil Seal
(Superseded to BS-391483S)

$6.49

$

In Stock, Qty 20+

0

21

Cub Cadet BS-299819

Oil Seal
(Superseded to BS-299819S)

$5.99

$

In Stock, Qty 20+

0

22

Cub Cadet BS-271139

Air Cleaner Gasket

$

$

Not available

23

Cub Cadet BS-272602

Breather Gasket

$

$

Not available

24

Cub Cadet BS-298989

Gasket Set
(Superseded to BS-794209)

$

$

Not available
