P 418 (11C-704A100) - Cub Cadet Walk-Behind Mower Engine (2001) Carburetor & Gaskets Parts Diagram

Walk-Behind Mower Engine

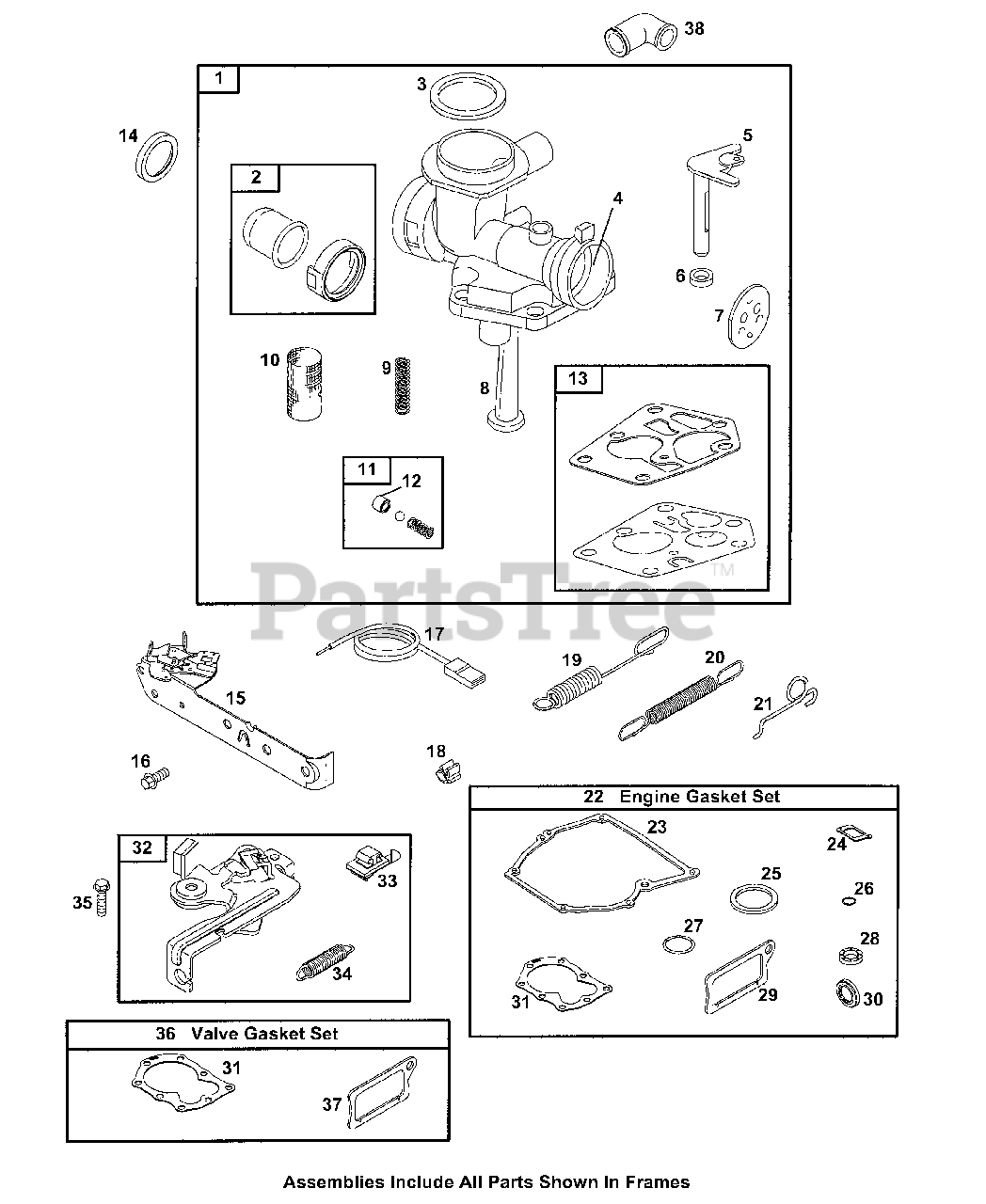

Carburetor & Gaskets Parts Diagram

  • Title

1

Cub Cadet BS-498811

Carburetor
(Superseded to BS-795477)

$

$

Not available

2

Cub Cadet BS-494408

Carburetor Primer
(Superseded to BS-694394)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet BS-271139

Air Cleaner Gasket

$

$

Not available

4

Cub Cadet BS-270344

O-Ring Seal (Intake Manifold)
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-691931

Throttle Shaft

$19.99

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-691321

Choke/Throttle Shaft Seal

$4.99

$

In Stock, only 2 left!

0

7

Cub Cadet BS-691190

Throttle Valve

$7.49

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-496046

Pick Up Tube
(Superseded to BS-496046S)

$8.99

$

In Stock, only 1 left!

0

9

Cub Cadet BS-691839

Choke Diaphragm Spring

$5.99

$

In Stock, only 2 left!

0

10

Cub Cadet BS-262734

Carburetor Screen

$

$

Not available

11

Cub Cadet BS-494409

Check Valve Seat

$

$

Not available

12

Cub Cadet BS-691901

Inlet Seat

$8.99

$

In Stock, only 1 left!

0

13

Cub Cadet BS-495770

Carburetor Pump Gasket
(Superseded to BS-795083)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet BS-691347

Trim Ring (Primer Bulb)
(Superseded to BS-694394)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet BS-691446

Control Bracket

$39.99

$

In Stock, Qty 5

0

16

Cub Cadet BS-692198

Screw (Control Bracket)

$5.99

$

In Stock, only 2 left!

0

17

Cub Cadet BS-692390

Stop Wire

$10.99

$

Usually ships in 2-12 days

0

18

Cub Cadet BS-690586

Wire Clip

$3.99

$

In Stock, only 3 left!

0

19

Cub Cadet BS-690251

Governor Spring

$6.99

$

In Stock, Qty 13

0

20

Cub Cadet BS-691859

Governor Idle Spring

$6.99

$

In Stock, Qty 20+

0

21

Cub Cadet BS-690347

Air Vane Link

$5.99

$

In Stock, Qty 5

0

22

Cub Cadet BS-298989

Engine Gasket Set
(Superseded to BS-794209)

$21.99

$

Usually ships in 2-12 days

0

23

Cub Cadet BS-692218

Crankcase Gasket (.015 Thick, Std)

$

$

Not available

Cub Cadet BS-270895

Crankcase Gasket (.005 Thick)

$9.99

$

In Stock, only 1 left!

0

Cub Cadet BS-270896

Crankcase Gasket (.009 Thick)

$5.99

$

In Stock, only 1 left!

0

24

Cub Cadet BS-270345

Intake Gasket

$

$

Not available

25

Cub Cadet BS-271139

Air Cleaner Gasket

$

$

Not available

26

Cub Cadet BS-691876

Dipstick Tube Seal

$5.49

$

In Stock, only 1 left!

0

27

Cub Cadet BS-691870

Dipstick/Tube Seal

$4.49

$

Usually ships in 2-12 days

0

28

Cub Cadet BS-391483

Oil Seal (PTO Side)
(Superseded to BS-391483S)

$5.99

$

In Stock, Qty 9

0

29

Cub Cadet BS-272602

Breather Gasket

$

$

Not available

30

Cub Cadet BS-299819

Oil Seal (Magneto Side)
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 20+

0

31

Cub Cadet BS-692288

Cylinder Head Gasket
(Superseded to BS-698717)

$5.99

$

In Stock, only 1 left!

0

32

Cub Cadet BS-691487

Brake

$34.99

$

In Stock, only 1 left!

0

33

Cub Cadet BS-692310

Stop Switch

$5.99

$

In Stock, Qty 20+

0

34

Cub Cadet BS-692135

Brake Spring

$8.49

$

In Stock, only 2 left!

0

35

Cub Cadet BS-691146

Screw (Brake)

$3.99

$

Usually ships in 2-12 days

0

36

Cub Cadet BS-498526

Valve Gasket Set

$18.99

$

Usually ships in 2-12 days

0

37

Cub Cadet BS-272602

Breather Gasket

$

$

Not available

38

Cub Cadet BS-67838

Grommet
(Superseded to BS-692189)

$4.49

$

In Stock, Qty 20+

0
