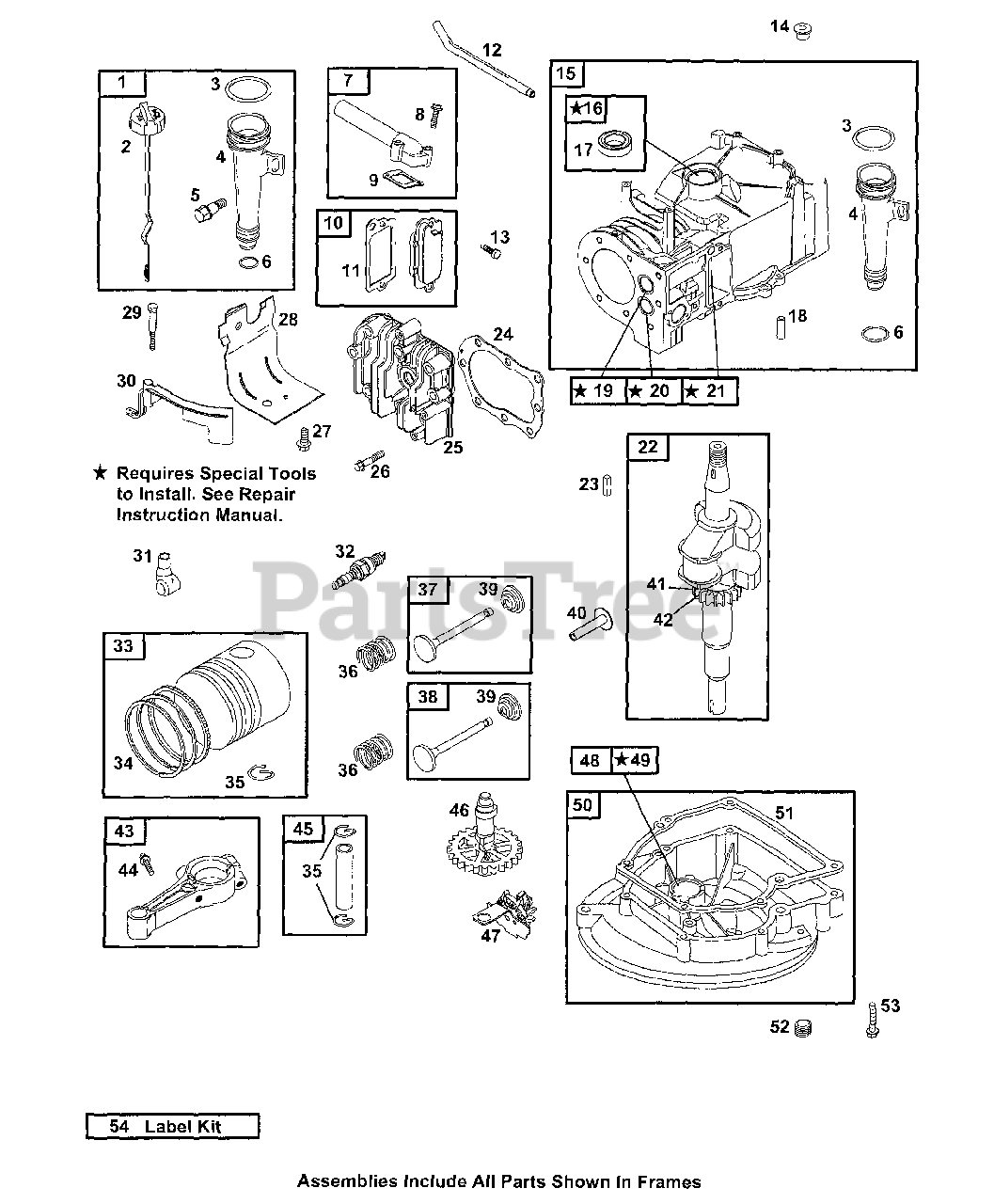

P 418 (11C-704A100) - Cub Cadet Walk-Behind Mower Engine (2001) Engine Assembly Parts Diagram

Walk-Behind Mower Engine

Engine Assembly Parts Diagram

  • Title

1

Cub Cadet BS-691440

Dipstick/ Tube Assembly

$25.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-692040

Dipstick

$14.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-691870

Dipstick/Tube Seal

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet BS-691320

Dipstick Tube

$13.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-691002

Screw (Dipstick Tube)

$8.49

$

In Stock, only 2 left!

0

6

Cub Cadet BS-691876

Dipstick Tube Seal

$5.49

$

In Stock, only 1 left!

0

7

Cub Cadet BS-693446

Intake Manifold

$14.99

$

In Stock, only 1 left!

0

8

Cub Cadet BS-691111

Screw (Intake Manifold)

$3.99

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-270345

Intake Gasket

$

$

Not available

10

Cub Cadet BS-495785

Breather Assembly

$

$

Not available

11

Cub Cadet BS-272602

Breather Gasket

$

$

Not available

12

Cub Cadet BS-691245

Breather Tube

$8.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-691666

Screw (Breather Assembly)

$3.99

$

In Stock, Qty 5

0

14

Cub Cadet BS-692889

Spacer

$8.49

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-399164

Cylinder Assembly

$

$

Not available

16

Cub Cadet BS-399269

Bushing/Seal Kit

$21.99

$

In Stock, Qty 6

0

17

Cub Cadet BS-299819

Oil Seal (Magneto Side)
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 20+

0

18

Cub Cadet BS-690959

Locating Pin

$6.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-211172

Valve Seat (Intake)

$

$

Not available

20

Cub Cadet BS-211291

Valve Seat (Exhaust)

$

$

Not available

21

Cub Cadet BS-231348

Guide Bushing (Exhaust Valve)

$31.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-63709

Guide Bushing (Intake Valve)

$14.99

$

In Stock, only 3 left!

0

22

Cub Cadet BS-691472

Crankshaft
(Superseded to BS-796217)

$172.99

$

Usually ships in 2-12 days

0

23

Cub Cadet BS-222698

Flywheel Key
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

24

Cub Cadet BS-692288

Cylinder Head Gasket
(Superseded to BS-698717)

$5.99

$

In Stock, only 1 left!

0

25

Cub Cadet BS-690386

Cylinder Head

$

$

Not available

26

Cub Cadet BS-691697

Screw (Cylinder Head)
(Superseded to BS-691640)

$3.49

$

In Stock, only 2 left!

0

27

Cub Cadet BS-690345

Screw (Cylinder Shield)

$4.99

$

Usually ships in 2-12 days

0

28

Cub Cadet BS-690400

Cylinder Shield

$6.49

$

Usually ships in 2-12 days

0

29

Cub Cadet 759-3338

Screw (Governor Blade)

$3.49

$

In Stock, Qty 20+

0

30

Cub Cadet BS-691912

Governor Blade

$13.99

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-66538

Spark Plug Boot
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 15

0

32

Cub Cadet 759-3338

Spark Plug

$3.49

$

In Stock, Qty 20+

0

33

Cub Cadet BS-498668

Piston Assembly

Note: (Standard)

$

$

Not available

Cub Cadet BS-498669

Piston Assembly (.010 O.S.)

$54.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-498670

Piston Assembly (.020 O.S.)

$

$

Not available

Cub Cadet BS-498671

Piston Assembly (.030 O.S.)

$53.99

$

Usually ships in 2-12 days

0

34

Cub Cadet BS-498680

Ring Set

Note: (Standard)

$35.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-498681

Ring Set (.010 O.S.)

$26.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-498682

Ring Set (.020 O.S.)

$42.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-498683

Ring Set (.030 O.S.)

$21.99

$

Usually ships in 2-12 days

0

35

Cub Cadet BS-691588

Piston Pin Lock

$4.99

$

Usually ships in 2-12 days

0

36

Cub Cadet BS-690520

Valve Spring

$5.49

$

In Stock, Qty 9

0

37

Cub Cadet BS-296676

Exhaust Valve

$23.99

$

In Stock, only 3 left!

0

38

Cub Cadet BS-296677

Intake Valve

$24.99

$

In Stock, only 4 left!

0

39

Cub Cadet BS-692194

Valve Retainer

$5.99

$

In Stock, Qty 18

0

40

Cub Cadet BS-691762

Valve Tappet

$9.99

$

Usually ships in 2-12 days

0

41

Cub Cadet BS-499047

Locating Pin

$4.99

$

Usually ships in 2-12 days

0

42

Cub Cadet BS-261533

Timing Gear

$

$

Not available

43

Cub Cadet BS-496792

Connecting Rod

$

$

Not available

44

Cub Cadet BS-691664

Screw (Connecting Rod)

$4.49

$

In Stock, only 2 left!

0

45

Cub Cadet BS-298909

Piston Pin

Note: (Standard)

$8.99

$

In Stock, only 4 left!

0

Cub Cadet BS-298908

Piston Pin (.005 O.S.)

$4.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-691998

Camshaft

$61.99

$

Usually ships in 2-12 days

0

47

Cub Cadet BS-691983

Governor/Oil Slinger

$

$

Not available

48

Cub Cadet BS-391483

Oil Seal (PTO Side)
(Superseded to BS-391483S)

$5.99

$

In Stock, Qty 9

0

49

Cub Cadet BS-293709

Bushing/Seal Kit (PTO Side)

$11.99

$

Usually ships in 2-12 days

0

50

Cub Cadet BS-395384

Engine Sump

$

$

Not available

51

Cub Cadet BS-692218

Crankcase Gasket (.015 Thick, Std)

$

$

Not available

Cub Cadet BS-270895

Crankcase Gasket (.005 Thick)

$9.99

$

In Stock, only 1 left!

0

Cub Cadet BS-270896

Crankcase Gasket (.009 Thick)

$5.99

$

Usually ships in 2-12 days

0

52

Cub Cadet BS-691680

Oil Drain Plug

$5.99

$

In Stock, only 3 left!

0

53

Cub Cadet BS-691662

Screw (Crankcase Cover)

$

$

Not available

Cub Cadet BS-398210

Short Block

$221.99

$

Usually ships in 2-12 days

0

54

UNKNOWN

$

$

Not available
