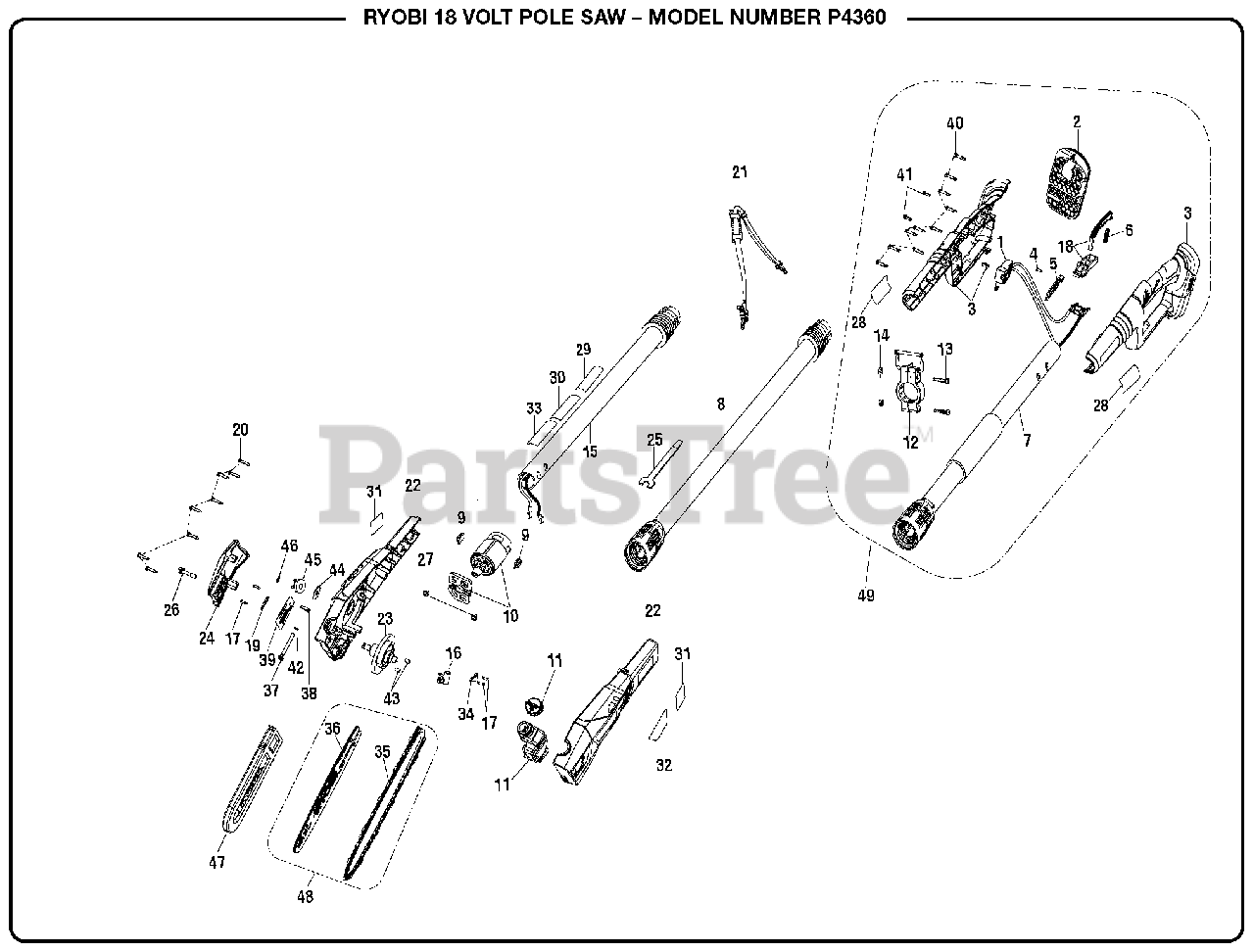

P 4360 (107369001) - Ryobi 18V Pole Saw, Rev 01 (2017-06) General Assembly Parts Diagram

18V Pole Saw, Rev 01

General Assembly Parts Diagram

  • Title

1

Homelite 760253019

Switch Assembly

$17.99

$

Usually ships in 3-7 days

0

2

Homelite 532644001

18v Battery Foot

$3.99

$

Usually ships in 3-7 days

0

3

Homelite 313216001

Handle Assembly

Note: (Inc. Key No. 28)

$33.99

$

Usually ships in 3-7 days

0

4

Homelite 660960002

Screw (M3 x 8 mm)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 634052001

Strap Hanger

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 679022001

Compression Spring

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 310980003

Lower Pole Assembly

Note: (Inc. Key No.1)

$70.99

$

Usually ships in 3-7 days

0

8

Homelite 310980002

Middle Pole Assembly

$60.99

$

Usually ships in 3-7 days

0

9

Homelite 570115001

Rubber Pad

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 310975001

Motor Assembly

Note: (Inc. Key No. 27)

$92.99

$

Usually ships in 3-7 days

0

11

Homelite 300790003

Oil Tank And Cap Assembly

$20.99

$

Usually ships in 3-7 days

0

12

Homelite 313214001

Clamp Assembly

$11.99

$

Usually ships in 3-7 days

0

13

Homelite 660469001

Screw (M5 x 24 mm, Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 678536001

Hex Nut (M5)

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 310980001

Top Pole Assembly

$

$

Not available

16

Homelite 312524001

Oil Pump

Note: (Inc. Key Nos. 29-30 & 33)

$14.99

$

Usually ships in 3-7 days

0

17

Homelite 660005006

Screw (M3 x 10 mm)

$2.49

$

In Stock, Qty 5

0

18

Homelite 313215001

Rear Trigger & Lock Button Assembly

$5.49

$

Usually ships in 3-7 days

0

19

Homelite 570820001

Seal Gasket

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 661189003

Screw (M4 x 18 mm T15 Torx Hd.)

$2.49

$

In Stock, Qty 5

0

21

Homelite 308319004

Harness Assembly

$27.99

$

Usually ships in 3-7 days

0

22

Homelite 313213001

Housing Assembly

Note: (Inc. Key Nos. 31-32)

$29.99

$

Usually ships in 3-7 days

0

23

Homelite 311071001

Output Shaft Assembly

$55.99

$

Usually ships in 3-7 days

0

24

Homelite 551057001

Chain Cover

$5.49

$

Usually ships in 3-7 days

0

25

Homelite 639255001

Wrench

$4.49

$

Usually ships in 3-7 days

0

26

Homelite 661868001

Bolt w/Washer (M6 x 29 mm, Hex Soc. Hd.)

$2.49

$

In Stock, only 3 left!

0

27

Homelite 661861001

Screw w/Washer (M4 x 8 mm)

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 941002198

Logo Label

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 941015018

Warning Label (English)

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 941015019

Warning Label (French/Spanish)

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 941002197

Logo Label

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 941016004

Data Label

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 941015017

Warning Icon Label

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 531003001

Pump Clamp

$2.49

$

Usually ships in 3-7 days

0

35

Homelite 310987002

Chain

$21.99

$

In Stock, only 2 left!

0

36

Homelite 312660001

Guide Bar

$48.99

$

In Stock, only 1 left!

0

37

Homelite 660936002

Adjustment Bolt (M5 x 46.5 mm)

$2.49

$

In Stock, only 2 left!

0

38

Homelite 678356003

Adjustment Guide Bar

$2.49

$

In Stock, only 2 left!

0

39

Homelite 634030001

Guide Bar Plate

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 660024020

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

41

Homelite 660526001

Screw (M4 x 11 mm, T20 Torx Pan Hd.)

$

$

Not available

42

Homelite 678353001

Retaining Ring (4 mm)
(Superseded to 986165001)

$2.49

$

In Stock, only 2 left!

0

43

Homelite 560219006

Contact Plate Stopper

$1.18

$

Usually ships in 3-7 days

0

44

Homelite 690733001

"D" Washer (OD25 x ID7.5 x 1t)

$2.49

$

In Stock, Qty 8

0

45

Homelite 610323001

Sprocket

$2.49

$

In Stock, only 3 left!

0

46

Homelite 670608002

Retaining Ring

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 580699010

Scabbard

$5.49

$

In Stock, only 2 left!

0

48

Homelite 310982003

Bar & Chain Assembly

Note: (Inc. Key Nos. 35-36)

$52.99

$

In Stock, only 1 left!

0

49

Homelite 310984001

Rear Handle Assembly

Note: (Inc. Key Nos. 1-7,12-14, 18, 28, & 40-41)

$

$

Not available

Homelite 901215013

Bar/Chain Oil

Note: Not Shown

$

$

Not available

Homelite 995000261

Operator's Manual

$

$

Not available
