P 4360 (107369007) - Ryobi 18V Pole Saw, Rev 02 (2022-01) General Assembly Parts Diagram

18V Pole Saw, Rev 02

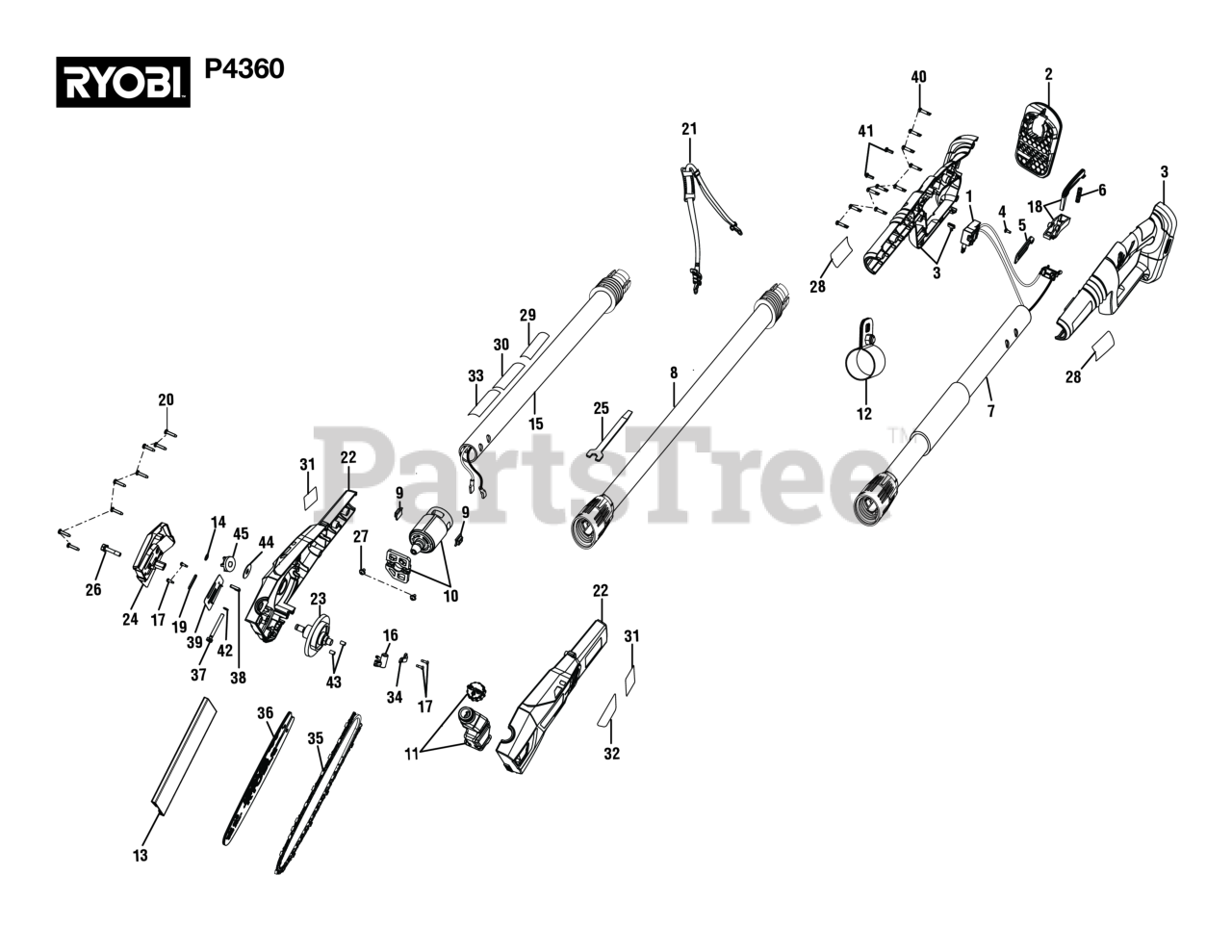

General Assembly Parts Diagram

  • Title

1

Homelite 760253019

Switch Assembly

$8.99

$

Usually ships in 3-7 days

0

2

Homelite 532644001

18v Battery Foot

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 317412001

Handle Assembly

Note: (Inc. Key No. 28)

$15.99

$

Usually ships in 3-7 days

0

4

Homelite 660960002

Screw (M3 x 8 mm)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 634052001

Strap Hanger

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 679022001

Compression Spring

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 310980003

Lower Pole Assembly

Note: (Inc. Key No. 1)

$36.99

$

Usually ships in 3-7 days

0

8

Homelite 310980002

Middle Pole Assembly

$31.99

$

Usually ships in 3-7 days

0

9

Homelite 570115001

Rubber Bumper

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 310975001

Motor Assembly

Note: (Inc. Key No. 27)

$46.99

$

Usually ships in 3-7 days

0

11

Homelite 300790003

Oil Tank And Cap Assembly

$10.99

$

Usually ships in 3-7 days

0

12

Homelite 316769001

Clamp Assembly

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 518405002

Scabbard

$

$

Currently unavailable

14

Homelite 670608002

Retaining Ring

$1.49

$

In Stock, only 3 left!

0

15

Homelite 205359001

Top Pole Assembly w/Labels

Note: (Inc. Key Nos. 29-30 & 33)

$15.99

$

Usually ships in 3-7 days

0

16

Homelite 312524001

Oil Pump

$7.49

$

Usually ships in 3-7 days

0

17

Homelite 660005006

Screw (M3 x 10 mm)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 313215001

Rear Trigger & Lock Button Assembly

$2.99

$

Usually ships in 3-7 days

0

19

Homelite 570820001

Oil Outlet Seal Ring

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$1.49

$

In Stock, only 4 left!

0

21

Homelite 308319004

Harness Assembly

$13.99

$

Usually ships in 3-7 days

0

22

Homelite 205515001

Housing Assembly (Inc. Key Nos. 31-32)

Note: (Inc. Key Nos. 31-32)

$

$

Not available

23

Homelite 311071001

Output Shaft Assembly

$28.99

$

Usually ships in 3-7 days

0

24

Homelite 317701001

Sprocket Cover Assembly

$10.99

$

Usually ships in 3-7 days

0

25

Homelite 639255001

Wrench

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 663095001

Screw with Spring Washer (M6 x 35 mm)

$

$

Currently unavailable

27

Homelite 661861001

Screw w/Washer (M4 x 8 mm)

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 940705494

40V Lithium Label (Right)

$

$

Currently unavailable

29

Homelite 941015017

Warning Icon Label

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 941015019

Warning Label (French/Spanish)

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 940705492

Logo Label

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 941588906

Data Label

$1.49

$

Usually ships in 3-7 days

0

33

Homelite 941015018

Warning Label (English)

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 531003001

Pump Clamp

$1.49

$

Usually ships in 3-7 days

0

35

Homelite 682502001

8 in. Saw Chain

$

$

Currently unavailable

36

Homelite 316670001

Guide Bar

$20.99

$

Usually ships in 3-7 days

0

37

Homelite 660936002

Adjustment Bolt (M5 x 46.5 mm)

$1.49

$

In Stock, only 1 left!

0

38

Homelite 678356003

Adjustment Guide Bar

$1.49

$

In Stock, only 3 left!

0

39

Homelite 634030002

Guide Bar Plate

$1.49

$

Usually ships in 3-7 days

0

40

Homelite 660024020

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

41

Homelite 660526001

Screw (M4 x 11 mm, T20 Torx Pan Hd.)

$

$

Not available

42

Homelite 678353001

Retaining Ring (4 mm)
(Superseded to 986165001)

$1.49

$

In Stock, only 3 left!

0

43

Homelite 560219006

Contact Plate Stopper

$1.18

$

Usually ships in 3-7 days

0

44

Homelite 690733001

Cover Plate (Internal "D" Washer)

$1.99

$

In Stock, only 1 left!

0

45

Homelite 610323001

Sprocket

$1.49

$

In Stock, Qty 5

0

Homelite 998000492

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
