P 4362 VNM (108760003) - Ryobi 18V Lopper, Rev 03 (2022-01) General Assembly Parts Diagram

18V Lopper, Rev 03

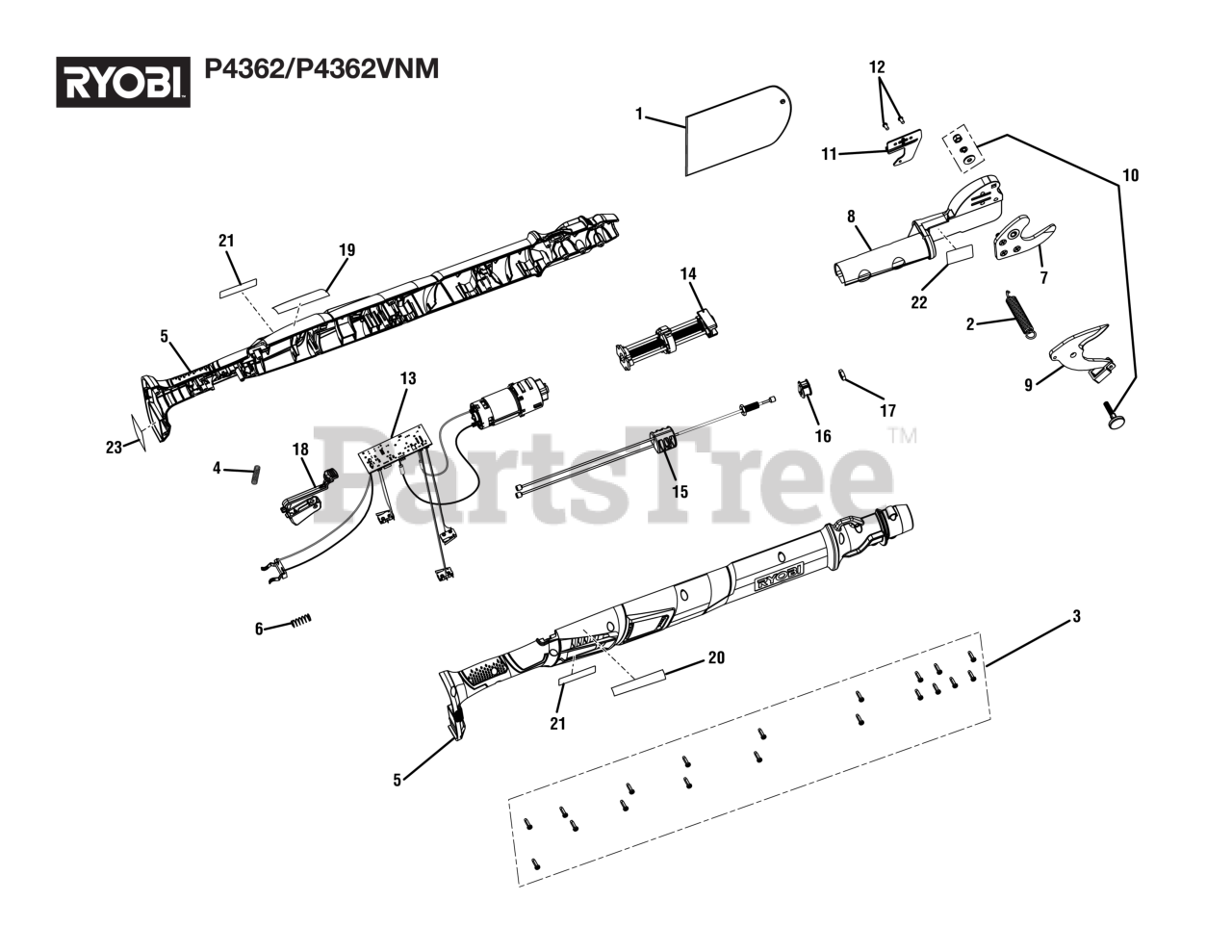

General Assembly Parts Diagram

  • Title

1

Homelite 903403001

Blade Cover

$2.99

$

Usually ships in 3-7 days

0

2

Homelite 697601001

Spring

$3.49

$

Usually ships in 3-7 days

0

3

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 696661001

Spring

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 318497001

Handle Assembly

Note: (Inc. Key Nos. 19-21 & 23, P4362VNM)

$56.99

$

Usually ships in 3-7 days

0

6

Homelite 679002002

Compression Spring

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 314984001

Bottom Blade Assembly

$51.99

$

Usually ships in 3-7 days

0

8

Homelite 317297001

Cutting Head Assembly

Note: (Inc. Key No. 22)

$35.99

$

Usually ships in 3-7 days

0

9

Homelite 314464001

Cutting Blade Assembly

$66.99

$

In Stock, only 1 left!

0

10

Homelite 313756001

Bolt Assembly

$6.99

$

Usually ships in 3-7 days

0

11

Homelite 639929001

Cutting Head Hook

$4.49

$

Usually ships in 3-7 days

0

12

Homelite 660212054

Screw (M4 x 8 mm, Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 317299001

Gear Box, Motor, and Motor Controller Assembly

$241.99

$

Usually ships in 3-7 days

0

14

Homelite 312905001

Power Screw Assembly

$103.99

$

Usually ships in 3-7 days

0

15

Homelite 315299002

Cable Assembly

$15.99

$

In Stock, only 2 left!

0

16

Homelite 565594001

Rubber Seal

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 662828001

Hex Nut (M8)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 317298001

Trigger and Saftey Button Assembly

$9.49

$

Usually ships in 3-7 days

0

19

Homelite 941588800

Icons/Warning Label

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 941110066

Data/Warning Label

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 940705519

Logo Label

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 941588802

Instruction/No Hands Label

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 941110086

QR Code Label

$2.49

$

Usually ships in 3-7 days

0

Homelite 998000306

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
