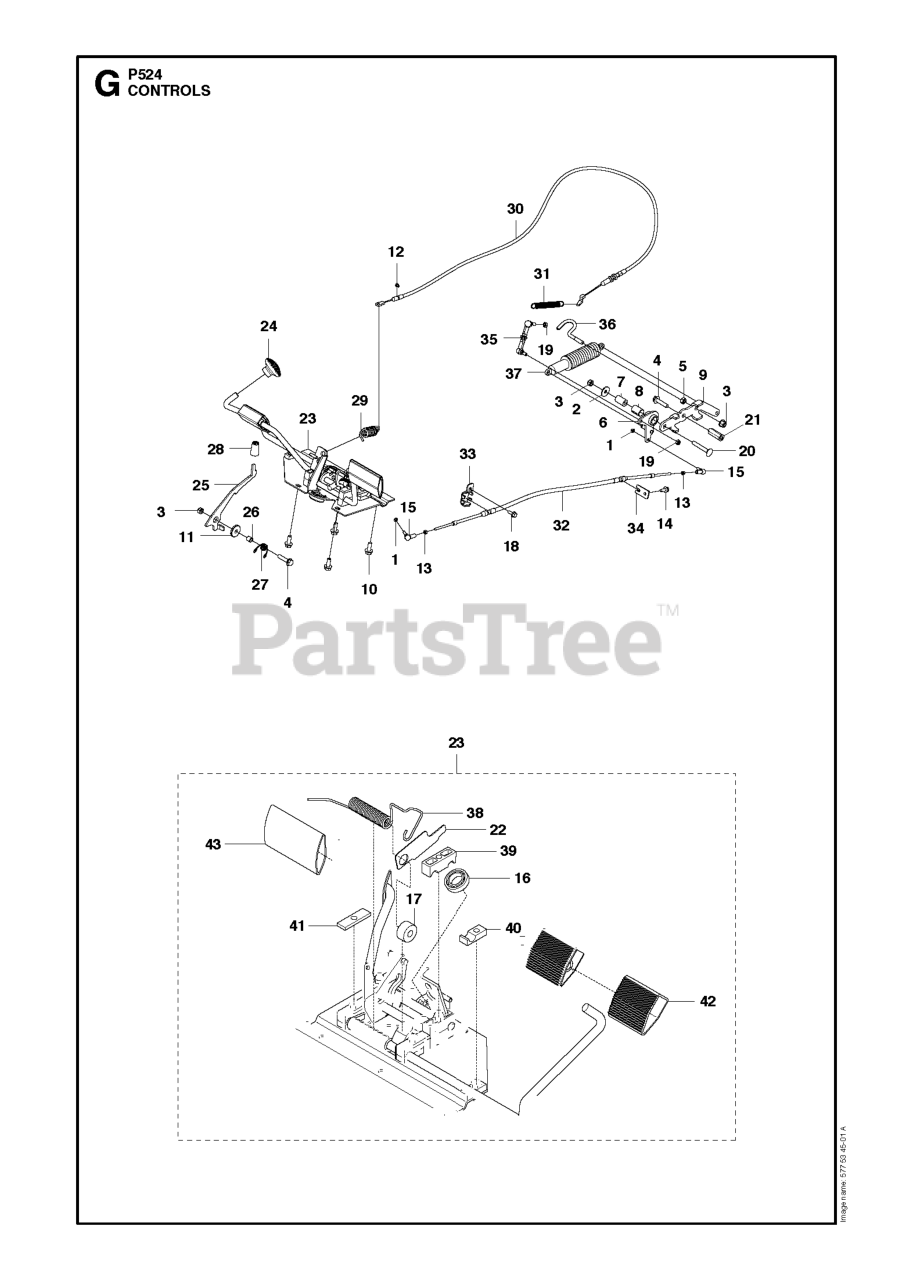

P 524 (966607201) - Husqvarna Swedish Riding Mower (2011) CONTROLS Parts Diagram

Swedish Riding Mower

CONTROLS Parts Diagram

  • Title

22

Husqvarna 535480601

PLATE
(Superseded to 535459601)

$

$

Not available

3

Husqvarna 576645704

NUT FLANGE

$

$

Currently unavailable

10

Husqvarna 506570104

BOLT

$6.99

$

In Stock, only 1 left!

0

11

Husqvarna 574874101

WASHER
(Superseded to 584288601)

$

$

Not available

40

Husqvarna 535480901

SUPPORT
(Superseded to 506954101)

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna 577094901

NEEDS DESCRIPTION

$

$

Currently unavailable

19

Husqvarna 731231401

NUT

$2.49

$

In Stock, Qty 20+

0

20

Husqvarna 535423802

NEEDS DESCRIPTION

$

$

Not available

42

Husqvarna 535478801

PEDAL RUBBER
(Superseded to 586966401)

$29.99

$

In Stock, only 4 left!

0

8

Husqvarna 506986103

BEARING

$

$

Not available

9

Husqvarna 577087201

NEEDS DESCRIPTION

$

$

Currently unavailable

1

Husqvarna 732251601

NUT FLANGE - M6

$4.99

$

In Stock, Qty 12

0

18

Husqvarna 535475212

SCREW EHHFM

$5.49

$

In Stock, only 1 left!

0

4

Husqvarna 506570106

SCREW EHHFM

$5.99

$

Usually ships in 3-10 days

0

23

Husqvarna 544126001

PEDAL ASSEMBLY
(Superseded to 583951401)

$226.99

$

Usually ships in 3-10 days

0

17

Husqvarna 535480201

ROLLER
(Superseded to 535459901)

$

$

Not available

36

Husqvarna 577357701

NEEDS DESCRIPTION

$

$

Currently unavailable

28

Husqvarna 544367001

NEEDS DESCRIPTION

$

$

Currently unavailable

13

Husqvarna 732211601

LOCKNUT M6

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 506946301

SPRING

$13.99

$

In Stock, only 1 left!

0

33

Husqvarna 522430801

BRACKET

$7.99

$

Usually ships in 3-10 days

0

32

Husqvarna 535489303

NEEDS DESCRIPTION

$

$

Currently unavailable

43

Husqvarna 535478802

PEDAL RUBBER, SF
(Superseded to 586966402)

$25.99

$

In Stock, Qty 5

0

34

Husqvarna 577095201

NEEDS DESCRIPTION

$

$

Currently unavailable

24

Husqvarna 535473701

KNOB
(Superseded to 586727401)

$15.99

$

In Stock, only 1 left!

0

5

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

14

Husqvarna 725236461

SCREW

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 535480801

PEDAL SHAFT CLAMP
(Superseded to 506506501)

$10.99

$

Usually ships in 3-10 days

0

37

Husqvarna 506938301

SHOCK ABSORBER

$

$

Not available

21

Husqvarna 576434201

NEEDS DESCRIPTION

$

$

Currently unavailable

15

Husqvarna 506557301

CONNECTOR
(Superseded to 578776801)

$12.99

$

In Stock, only 1 left!

0

35

Husqvarna 544441902

NEEDS DESCRIPTION

$

$

Currently unavailable

25

Husqvarna 577222501

NEEDS DESCRIPTION

$

$

Currently unavailable

2

Husqvarna 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0

38

Husqvarna 535480701

SPRING
(Superseded to 535459501)

$10.99

$

Usually ships in 3-10 days

0

41

Husqvarna 535481001

PLATE
(Superseded to 506804101)

$9.49

$

Usually ships in 3-10 days

0

7

Husqvarna 506992001

BUSHING

$14.99

$

Usually ships in 3-10 days

0

31

Husqvarna 544133601

NEEDS DESCRIPTION

$

$

Not available

27

Husqvarna 504639001

NEEDS DESCRIPTION

$

$

Currently unavailable

16

Husqvarna 738210204

BALL BEARING 6002-2RS1

$14.99

$

Usually ships in 3-10 days

0

12

Husqvarna 735310920

E-RING 5

$7.49

$

In Stock, Qty 12

0

26

Husqvarna 577222101

NEEDS DESCRIPTION

$

$

Currently unavailable

30

Husqvarna 576830601

NEEDS DESCRIPTION

$

$

Currently unavailable
