P 546 (107175001) - Ryobi 18V Chainsaw Figure A Parts Diagram

18V Chainsaw

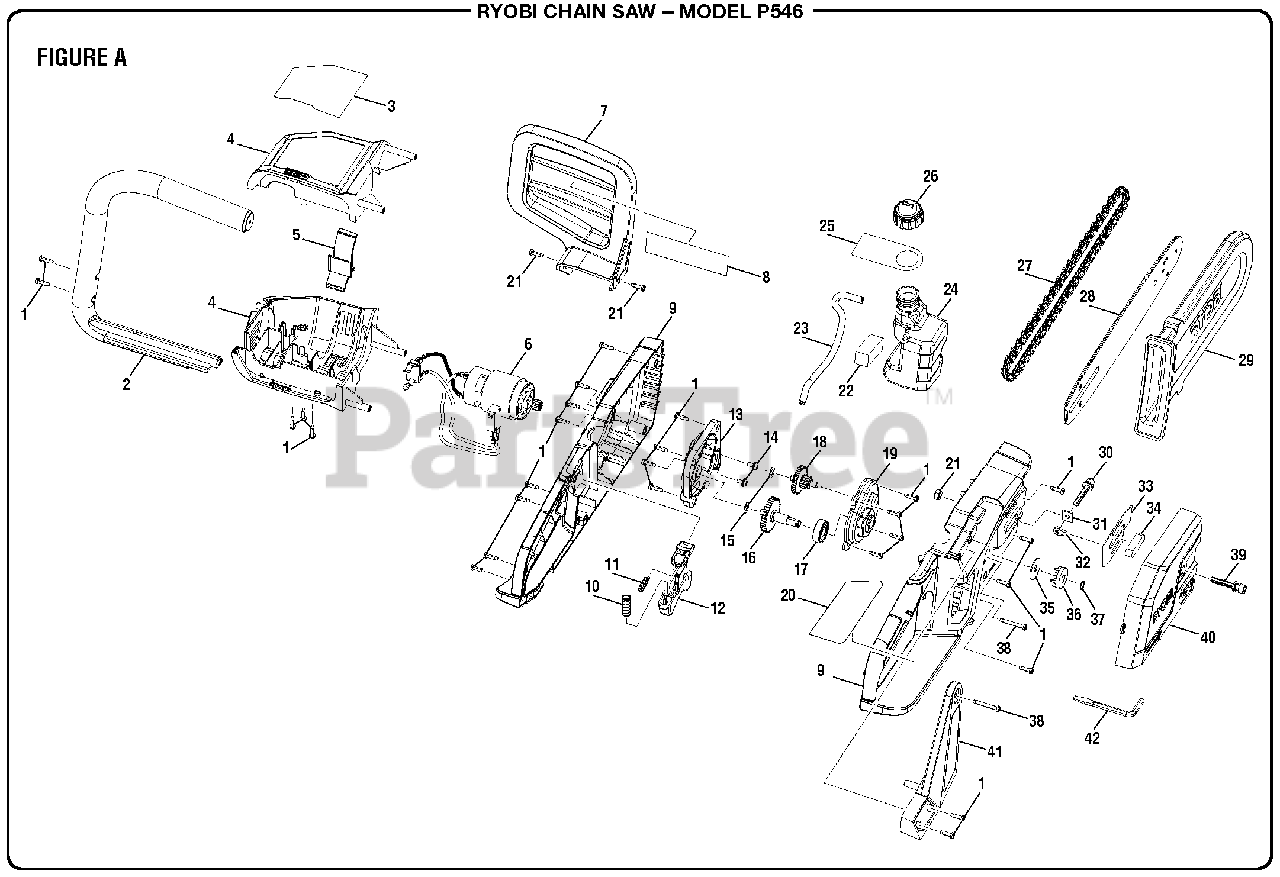

Figure A Parts Diagram

  • Title

1

Homelite 661817001

Screw (M4 x 14 mm)

$

$

Not available

2

Homelite 529190001

Front Handle

$

$

Not available

3

Homelite 940851051

Warning Label

$

$

Not available

4

Homelite 203660001

Motor Housing Assembly

Note: (Incl. Key No. 3)

$6.49

$

Usually ships in 3-7 days

0

5

Homelite 529217001

Wind Plate

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 203658001

Motor and Wiring Harness Assembly

$

$

Not available

7

Homelite 203661001

Front Handle Guard

Note: (Incl. Key No. 8)

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 940657170

Icon Warning Label

$

$

Not available

9

Homelite 203659001

Housing Assembly

Note: (Incl. Key No. 20)

$21.99

$

Usually ships in 3-7 days

0

10

Homelite 679002004

Compression Spring

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 679055011

Compression Spring

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 203643001

Trigger Assembly

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 220308001

Gear Box Base Assembly

$

$

Not available

14

Homelite 661861001

Screw (M4 x 8 mm)

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 690060001

Washer (ID6.5 x OD13 x 0.5t)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 311125002

Output Gear and Shaft Assembly

$9.49

$

Usually ships in 3-7 days

0

17

Homelite 679979001

Ball Bearing (6000 2RS)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 311124002

Input Gear Assembly

$5.99

$

Usually ships in 3-7 days

0

19

Homelite 311123002

Gear Box Cover Assembly

$4.99

$

Usually ships in 3-7 days

0

20

Homelite 941588085

Data and Warning Label

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 661817003

Screw (M4 x 14 mm, Tamper Proof)

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 563863001

Filter

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 570807005

Outlet Tube

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 580163001

Oil Tank

$2.99

$

Usually ships in 3-7 days

0

25

Homelite 961039009

Oil Cap Hang Tag

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 203642001

Oil Cap Assembly

$

$

Not available

27

Homelite 693814001

Saw Chain

$13.99

$

In Stock, only 1 left!

0

28

Homelite 311278001

Guide Bar

$

$

Not available

29

Homelite 580162001

Scabbard

$3.99

$

Usually ships in 3-7 days

0

30

Homelite 662323001

Screw w/Washer (M5 x 30 mm, Rd. Hd.)

$

$

Currently unavailable

31

Homelite 690794001

Insert Plate

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 620246001

Adjustment Block

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 563865001

Rubber Gasket

$1.49

$

In Stock, only 3 left!

0

34

Homelite 563443001

Oil Seal

$1.49

$

In Stock, only 4 left!

0

35

Homelite 690733001

Cover Plate (Internal "D" Washer)

$1.99

$

In Stock, only 1 left!

0

36

Homelite 610323001

Sprocket

$1.49

$

In Stock, only 4 left!

0

37

Homelite 670608002

Retaining Ring

$1.49

$

In Stock, only 1 left!

0

38

Homelite 660208104

Screw (M4 x 30 mm)

$1.49

$

Usually ships in 3-7 days

0

39

Homelite 660058002

Screw w/Washer (M6 x 35 mm, Soc. Hd.)

$1.49

$

In Stock, only 2 left!

0

40

Homelite 529213001

Bar Cover

$3.99

$

Usually ships in 3-7 days

0

41

Homelite 529189001

Front Handle Arm

$2.49

$

Usually ships in 3-7 days

0

42

Homelite 612805001

Combination Hex Key (5 mm x 10 mm Slotted)

$

$

Currently unavailable

Homelite 988000082

Operator's Manual

Note: Not Shown

$

$

Not available
