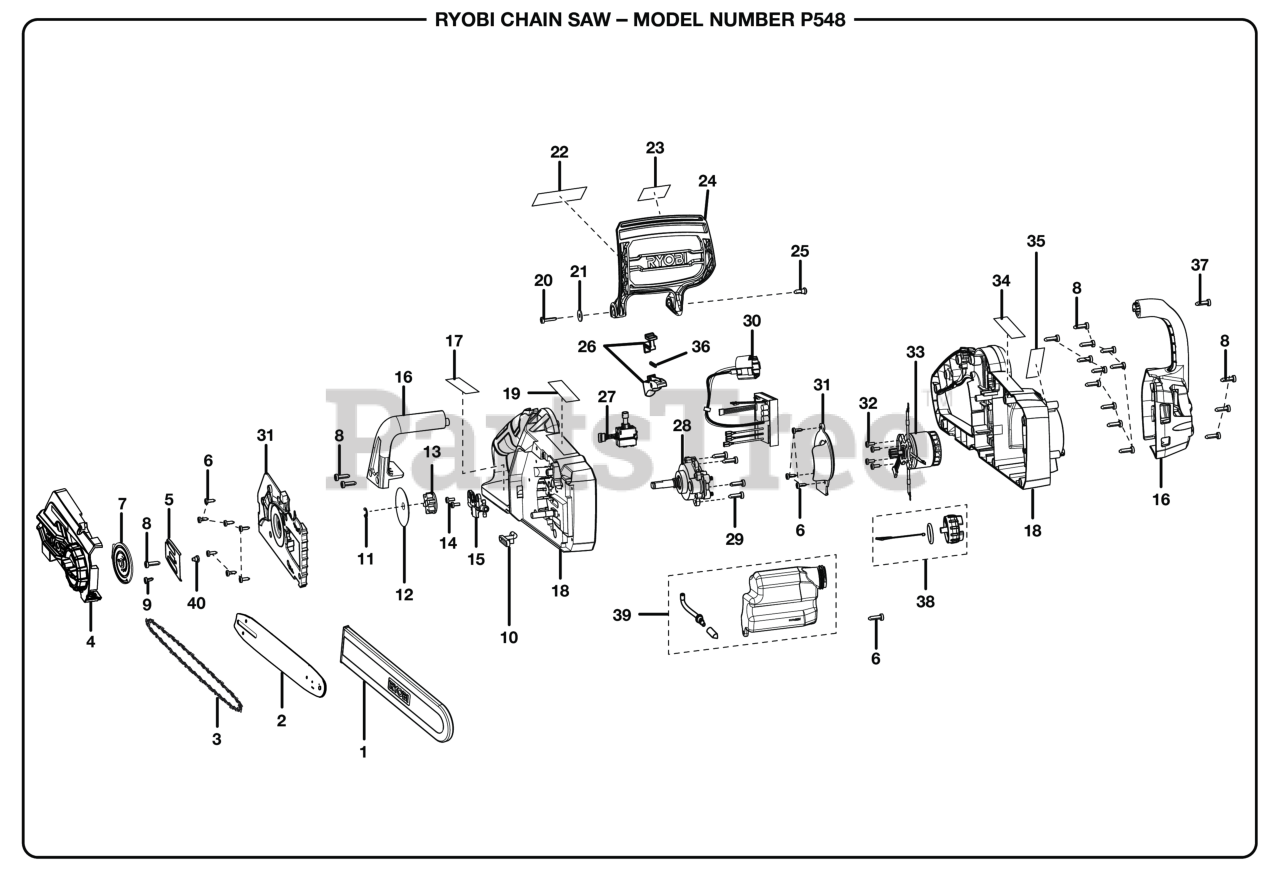

P 548 (107251025) - Ryobi 18V Chainsaw, Rev 01 (2020-03) General Assembly Parts Diagram

18V Chainsaw, Rev 01

General Assembly Parts Diagram

  • Title

1

Homelite 580279001

Scabbard (12 in.)

$8.99

$

Usually ships in 3-7 days

0

2

Homelite 682456001

Guide Bar (12 in.)

$38.99

$

In Stock, only 2 left!

0

3

Homelite 678928001

Chain (12 in.)

$36.99

$

Usually ships in 3-7 days

0

4

Homelite 360064001

Sprocket Cover Assembly

$19.99

$

Usually ships in 3-7 days

0

5

Homelite 637723002

Guide Bar Plate

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$2.49

$

In Stock, only 4 left!

0

7

Homelite 205358001

Chain Tension Assembly

$5.49

$

Usually ships in 3-7 days

0

8

Homelite 662051003

Screw (#10-14 x 18 mm, T25 Torx Hd.)

$

$

Not available

9

Homelite 660608004

Screw (M4 x 12 mm, T20 Torx Hd.)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 563438001

Output Oil Tube

$2.99

$

Usually ships in 3-7 days

0

11

Homelite 636159001

E-Ring

$2.49

$

In Stock, only 2 left!

0

12

Homelite 635367001

Washer (Special)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 612313001

Sprocket

$4.99

$

In Stock, only 2 left!

0

14

Homelite 660610001

Screw (M4 x 9.5 mm)

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 309514001

Oil Pump Assembly

$18.99

$

Usually ships in 3-7 days

0

16

Homelite 205339001

Front Handle and Motor Housing Assembly

$7.99

$

Usually ships in 3-7 days

0

17

Homelite 941588658

Data Label

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 205340001

Housing Assembly (Inc. Key Nos. 17, 19 and 34-35)

$27.99

$

Usually ships in 3-7 days

0

19

Homelite 940657258

Warning Label (French)

$

$

Not available

20

Homelite 660608005

Screw (M4 x 21 mm, T20 Torx Hd.)

$

$

Not available

21

Homelite 638988001

Washer (ID5.2 x OD16 x 1.5t)

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 940657256

Warning Icon Label (Bottom)

$

$

Not available

23

Homelite 940657255

Warning Icon Label (Top)

$

$

Not available

24

Homelite 205341001

Front Handle Guard Assembly (Inc. Key Nos. 22-23)

$4.99

$

Usually ships in 3-7 days

0

25

Homelite 662113001

Screw (M5 x 15 mm, T25 Torx Hd.)

$

$

Currently unavailable

26

Homelite 205342001

Trigger Assembly (Inc. Key No. 36)

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 760579003

Switch

$17.99

$

Usually ships in 3-7 days

0

28

Homelite 204607001

Gear Box w/Output Shaft Assembly

$

$

Currently unavailable

29

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$2.49

$

In Stock, Qty 6

0

30

Homelite 291745001

Battery Carriage and Circuit Board Assembly

$90.99

$

Usually ships in 3-7 days

0

31

Homelite 204588001

Brake and Volute Cover Assembly

$

$

Not available

32

Homelite 660502004

Screw w/Washer (M5 x 8 mm, Pan Hd.)

$

$

Not available

33

Homelite 312430001

Motor Assembly

$105.99

$

Usually ships in 3-7 days

0

34

Homelite 940657257

Warning Label (English)

$

$

Not available

35

Homelite 940657259

Warning Label (Spanish)

$

$

Not available

36

Homelite 698538001

Lock Spring

$2.49

$

Usually ships in 3-7 days

0

37

Homelite 662053002

Screw (M5 x 25 mm, T25 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

38

Homelite 340213002

Oil Cap Assembly

$12.99

$

Usually ships in 3-7 days

0

39

Homelite 390033001

Oil Tank Assembly

$15.99

$

Usually ships in 3-7 days

0

40

Homelite 662114002

Screw (M4 x 6 mm)

$2.49

$

Usually ships in 3-7 days

0
