P 8527 ES A - Poulan Snow Thrower (2002) Auger Housing/Impeller Assembly Parts Diagram

Snow Thrower

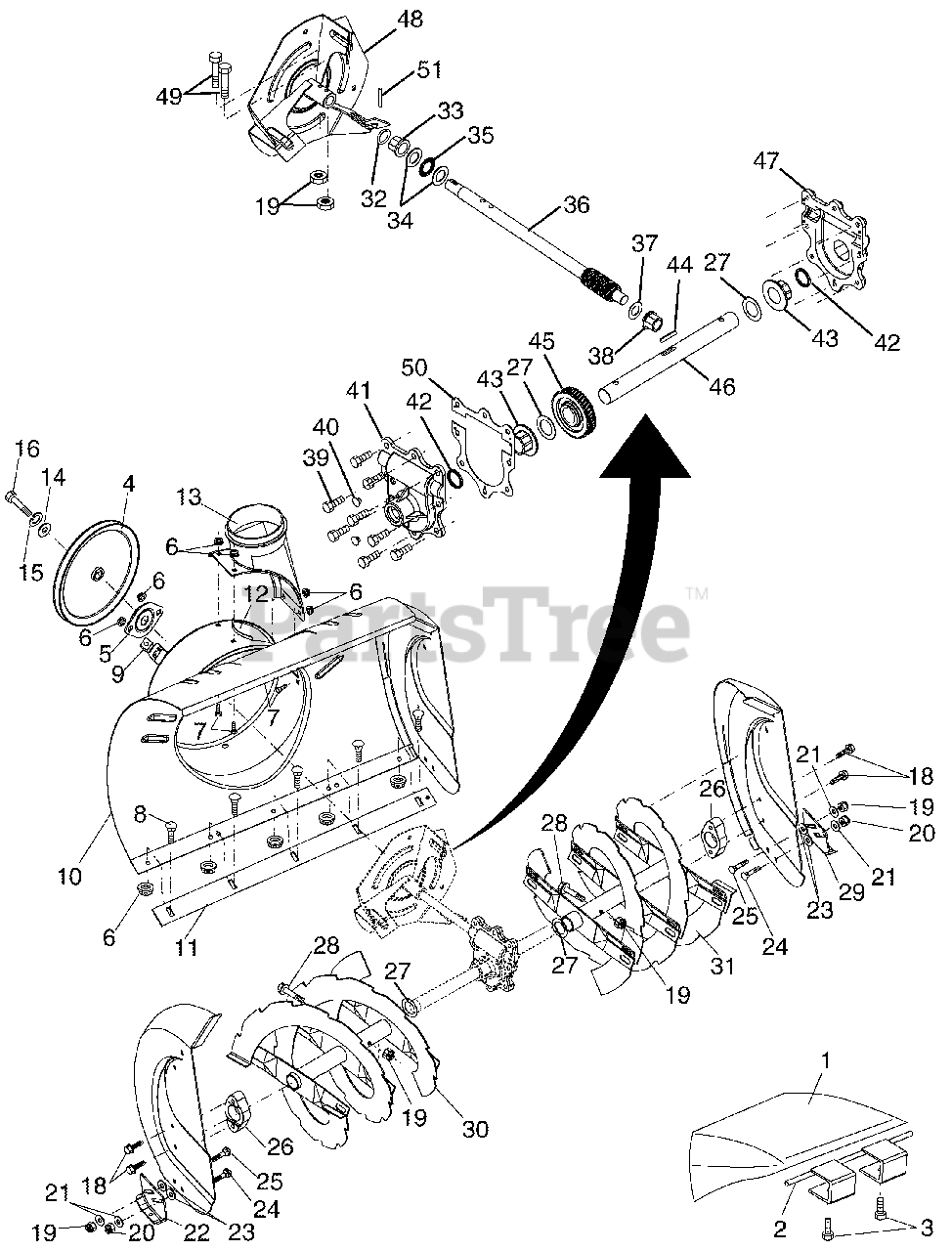

Auger Housing/Impeller Assembly Parts Diagram

  • Title
1

Electrolux/AYP 183578

Bag, Weight
(Superseded to 183576)

$23.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 183577

Bracket, Weight Bag

$

$

Not available

3

Electrolux/AYP 74520524

Screw, Hex Head 5/16-18 x 1-1/2
(Superseded to 596582201)

$3.99

$

In Stock, Qty 18

0

4

Electrolux/AYP 181083

Pulley, Impeller
(Superseded to 191079)

$

$

Not available

5

Electrolux/AYP 175323

Bearing Assembly, Flange
(Superseded to 532188909)

$24.99

$

In Stock, Qty 9

0

6

Electrolux/AYP 155377

Nut, Hex Flange 5/16-18
(Superseded to 532155377)

$6.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 180355

Bolt, Flat Head, Carriage 5/16-18 x 5/8
(Superseded to 532180355)

$7.49

$

In Stock, only 3 left!

0

8

Electrolux/AYP 72270505

Bolt, Carriage 5/16-1 8 x 5/8
(Superseded to 872270505)

$10.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 178820

Nut, Cage 3/8-16
(Superseded to 532178820)

$7.49

$

In Stock, only 2 left!

0

10

Electrolux/AYP 178826X428

Housing, Auger
(Superseded to 532415271)

$267.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 178691X479

Bar, Scraper
(Superseded to 532435830)

$24.99

$

In Stock, Qty 16

0

12

Electrolux/AYP 178675X008

Bracket, Corner Discharge
(Superseded to 178675X431)

$2.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 175322

Base, Discharge Chute
(Superseded to 532442438)

$11.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 59289

Washer, Flat
(Superseded to 532059289)

$4.99

$

In Stock, only 3 left!

0

15

Electrolux/AYP 10040500

Washer, Lock 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 74950512

Screw, Hex Head 5/16-18 x 3/4
(Superseded to 874950512)

$3.99

$

In Stock, only 3 left!

0

18

Electrolux/AYP 179582

Screw, Hex Head 5/16 x 1
(Superseded to 532179582)

$7.49

$

In Stock, only 3 left!

0

19

Electrolux/AYP 73800400

Nut, Hex Lock 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 73800500

Nut, Hex Lock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

21

Electrolux/AYP 155415

Washer, Flat
(Superseded to 532155415)

$4.99

$

In Stock, only 2 left!

0

22

Electrolux/AYP 178777X479

Skid Plate, RH
(Superseded to 532436125)

$

$

Not available

23

Electrolux/AYP 179246

Washer, Nylon, Friction
(Superseded to 532179246)

$7.49

$

In Stock, Qty 12

0

24

Electrolux/AYP 72270506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0

25

Electrolux/AYP 179829

Bolt, Shoulder
(Superseded to 532179829)

$6.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 174658

Bearing, Auger
(Superseded to 532420478)

$9.99

$

In Stock, only 2 left!

0

27

Electrolux/AYP 174697

Washer, Thrust, 1"

$2.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 179828

Bolt, Shoulder 1/4-20 x 2
(Superseded to 601001986)

$4.99

$

In Stock, Qty 20+

0

29

Electrolux/AYP 174762X479

Skid Plate, LH
(Superseded to 532174762)

$9.99

$

In Stock, only 4 left!

0

30

Electrolux/AYP 178763X479

Auger Assembly, RH
(Superseded to 192118X479)

$

$

Not available

31

Electrolux/AYP 178697X479

Auger Assembly, LH

$

$

Not available

32

Electrolux/AYP 174699

O-Ring
(Superseded to 532174699)

$6.49

$

In Stock, only 2 left!

0

33

Electrolux/AYP 174700

Bushing, Flange 3/4
(Superseded to 407769)

$2.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 174681

Washer, Thrust 3/4
(Superseded to 532174681)

$14.99

$

In Stock, only 3 left!

0

35

Electrolux/AYP 174684

Bearing, Thrust 3/4
(Superseded to 532174684)

$9.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 174660

Shaft, Impeller
(Superseded to 407757)

$42.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 174683

Washer, Thrust 5/8
(Superseded to 532174683)

$4.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 174686

Bushing, Flange 5/8

$

$

Not available

39

Electrolux/AYP 150078

Screw, Hex Head 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

40

Electrolux/AYP 86447

Plug, Case
(Superseded to 532086447)

$

$

Not available

41

Electrolux/AYP 174688

Housing, Gearbox, RH
(Superseded to 532174688)

$

$

Not available

42

$

$

Not available

43

Electrolux/AYP 174701

Bushing, Flange, 1"
(Superseded to 532174701)

$

$

Not available

44

Electrolux/AYP 178879

Key, Square 1/4 x 1/4 x 7/8
(Superseded to 532189282)

$7.49

$

In Stock, only 1 left!

0

45

Electrolux/AYP 174659

Gear, Worm
(Superseded to 586854201)

$279.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 174657

Shaft, Auger
(Superseded to 532174657)

$

$

Not available

47

Electrolux/AYP 174687

Housing, Gearbox, LH
(Superseded to 407765)

$

$

Not available

48

Electrolux/AYP 175321X479

Impeller Assembly
(Superseded to 532435775)

$78.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 74780426

Screw, Hex Head 1/4-20 x 1-5/8
(Superseded to 874780426)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 175311

Gasket, Gearbox
(Superseded to 532175311)

$9.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 7836M

Pin, Roll 3/16 x 1-1/8

$

$

Not available
