P RT5043 (960910007-06) - Electrolux/AYP Tiller (2010-12) HANDLE Parts Diagram

Tiller

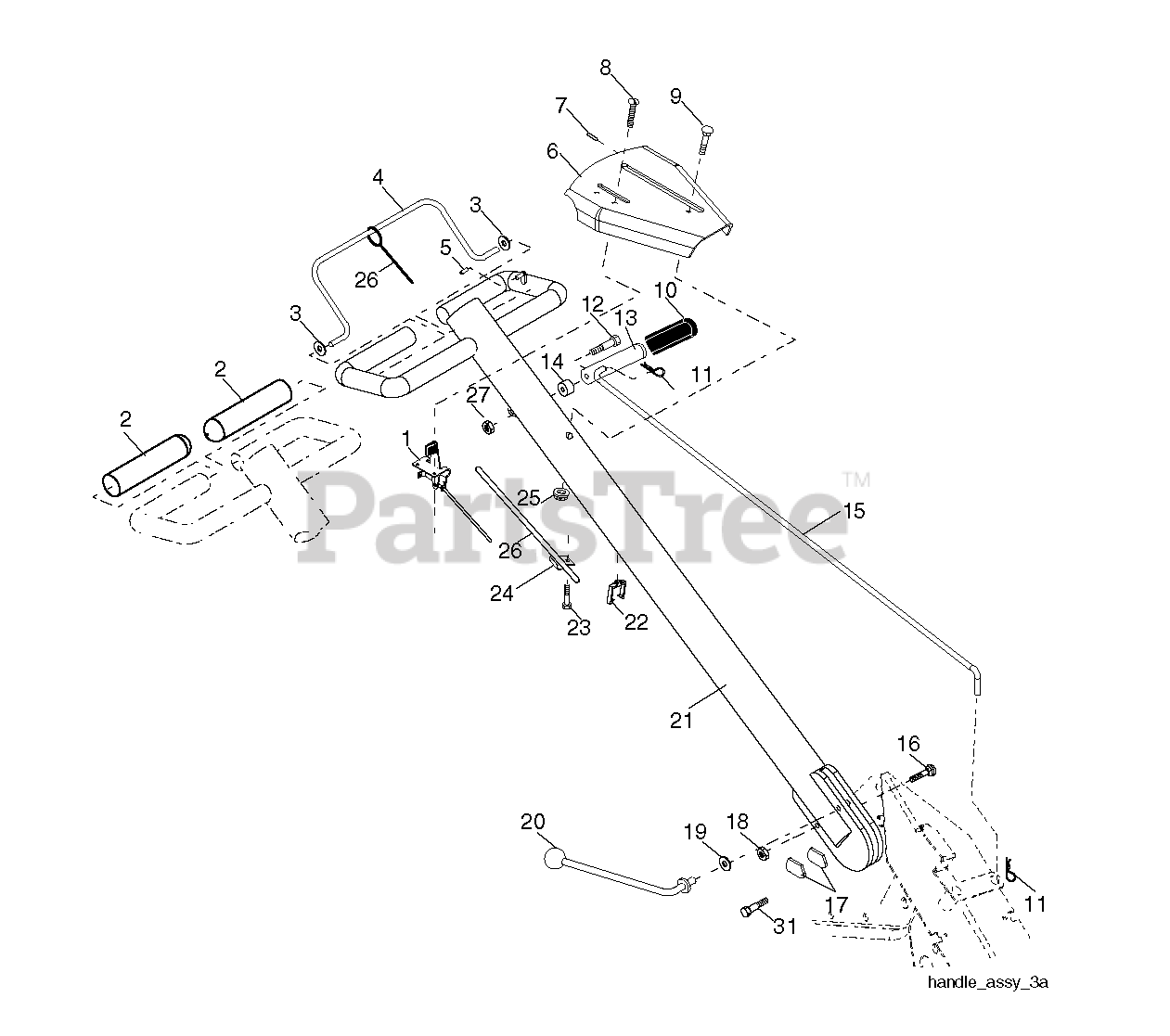

HANDLE Parts Diagram

  • Title

1

Electrolux/AYP 532189482

THROTTLE.CONTROL.RT

$47.99

$

In Stock, Qty 16

0

2

Electrolux/AYP 532141406

GRIP.HANDLE.TILLER

$7.49

$

In Stock, only 3 left!

0

3

Electrolux/AYP 532110673

Handle Grommet

$6.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532127254

BAR ASSEMBLY, CONTROL
(Superseded to 127254X)

$26.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532124717

VINYL CAP TI
(Superseded to 532006712)

$6.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 532188403

PANEL, CONTROL
(Superseded to 584330201)

$

$

Not available

7

Electrolux/AYP 532110641

BUSHING SPLIT
(Superseded to 583660601)

$4.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 872010520

BOLT.5/16-18X2.5

$6.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532110646

GRIP, HANDLE
(Superseded to 532124797)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 19

0

12

Electrolux/AYP 532081328

SHOULDER BOLT ST

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532187497

HANDLE.SHIFT.TILLER
(Superseded to 187497)

$

$

Not available

14

Electrolux/AYP 532109313

GROMMET.RUBBER.CRT.TILLER

$7.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 532110702

ROD, SHIFT

$17.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 872110608

BOLT D

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532109229

LOCK CRT

$7.49

$

In Stock, Qty 9

0

18

Electrolux/AYP 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 819131611

WASHER CRT
(Superseded to 596140201)

$3.99

$

In Stock, Qty 6

0

20

Electrolux/AYP 532109228

LEVER.LOCK.CRT

$8.99

$

In Stock, only 3 left!

0

21

Electrolux/AYP 532420524

NO LONGER AVAILABLE

$

$

Not available

22

Electrolux/AYP 532165197

Cable Clip

$4.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532086777

TAPPING SCREW
(Superseded to 532750097)

$4.99

$

In Stock, Qty 20+

0

24

Electrolux/AYP 532009484

CONDUIT CLIP T

$6.49

$

In Stock, only 4 left!

0

25

Electrolux/AYP 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

26

Electrolux/AYP 532110675

Clutch Cable

$18.99

$

In Stock, Qty 8

0

27

Electrolux/AYP 873900400

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 532150696

BOLT.PIVOT

$7.49

$

In Stock, Qty 5

0
