P61 (5900227) - Ferris 61" Mower Deck (SN: 1022 & Above) 61" Mower Deck - Rollers & Casters Parts Diagram

61" Mower Deck

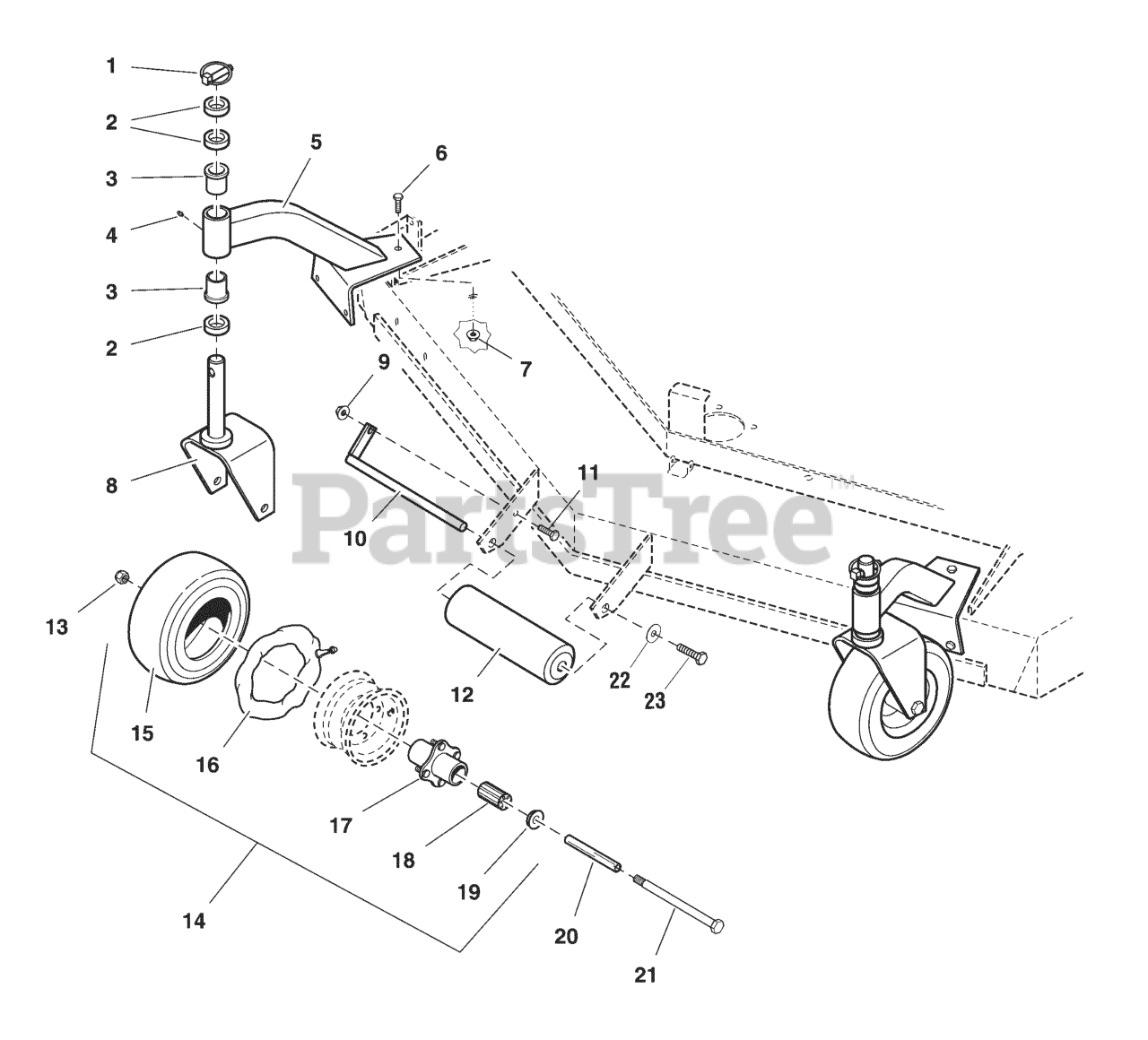

61" Mower Deck - Rollers & Casters Parts Diagram

  • Title

1

Ferris 5020655

PIN, Lynch
(Superseded to 5020655SM)

$10.99

$

In Stock, only 1 left!

0

2

Ferris 5041476

SPACER, 1.02 x 1.56 x .50
(Superseded to 5041476SM)

$5.99

$

In Stock, Qty 11

0

3

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$10.99

$

In Stock, Qty 20+

0

4

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$4.49

$

Usually ships in 2-12 days

0

5

Ferris 5043887

CASTER MOUNT, Complete
(Superseded to 5043887FS)

Note: (Includes Ref No. 3 & 4)

$251.99

$

Usually ships in 2-12 days

0

6

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

7

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 7

0

8

Ferris 5041702B

YOKE, Caster

$253.99

$

Usually ships in 2-12 days

0

9

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 20+

0

10

Ferris 5041655A

USE 5105755 - WELD, BRKT,ROLLER PIN,BLK
(Superseded to 5105755)

$47.99

$

In Stock, only 1 left!

0

11

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5020785

ROLLER
(Superseded to 5020785SM)

$31.99

$

In Stock, Qty 8

0

13

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.99

$

Usually ships in 2-12 days

0

14

Ferris 5021181S

TIRE ASSM, 9 X 3.5 X 4, SILVER
(Superseded to 5021181SSM)

Note: (Includes Ref No. 15 - 19)

$103.99

$

In Stock, only 4 left!

0

14

Ferris 5021181

WHEEL & TIRE ASSEMBLY, White, 9 x 3.5 x 4, Complete
(Superseded to 5021181SSM)

Note: (Includes Ref No. 15 - 19)

$103.99

$

In Stock, only 4 left!

0

15

Ferris 5021181X1

TIRE, Front, 9 x 3.5 x 4

$

$

Currently unavailable

16

Ferris 5021181X2

TUBE

$

$

Currently unavailable

17

Ferris 5021181SX3

HUB & BEARING ASSEMBLY, Complete, Silver
(Superseded to 5021181SX3SM)

Note: (Includes Ref No. 18 & 19)

$59.99

$

Usually ships in 2-12 days

0

17

Ferris 5021181X3

HUB & BEARING ASSEMBLY, Complete, White

Note: (Includes Ref No. 18 & 19)

$

$

Not available

18

Ferris 5021182

BEARING, ROLLER 3/4" ID X 3.25" (ONE PER TIRE)(SV)

Note: (1 per tire)

$

$

Currently unavailable

19

Ferris 5021043

RETAINER, Bearing

Note: (2 per tire)

$6.99

$

Usually ships in 2-12 days

0

20

Ferris 5041657

AXLE, Caster Wheel
(Superseded to 5041657SM)

$14.99

$

In Stock, only 1 left!

0

21

Ferris 5025017X44

BOLT, 1/2-13 x 5-1/2
(Superseded to 5025017X44SM)

$8.49

$

In Stock, only 2 left!

0

22

Ferris 5100548

WASHER, .390 X 1.50 X .109 YZ
(Superseded to 5100548SM)

$4.49

$

In Stock, only 2 left!

0

23

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 3 left!

0
