P72 (5900228) - Ferris 72" Mower Deck (SN: 0855 - 1022) 72" Mower Deck - Complete Parts Diagram

72" Mower Deck

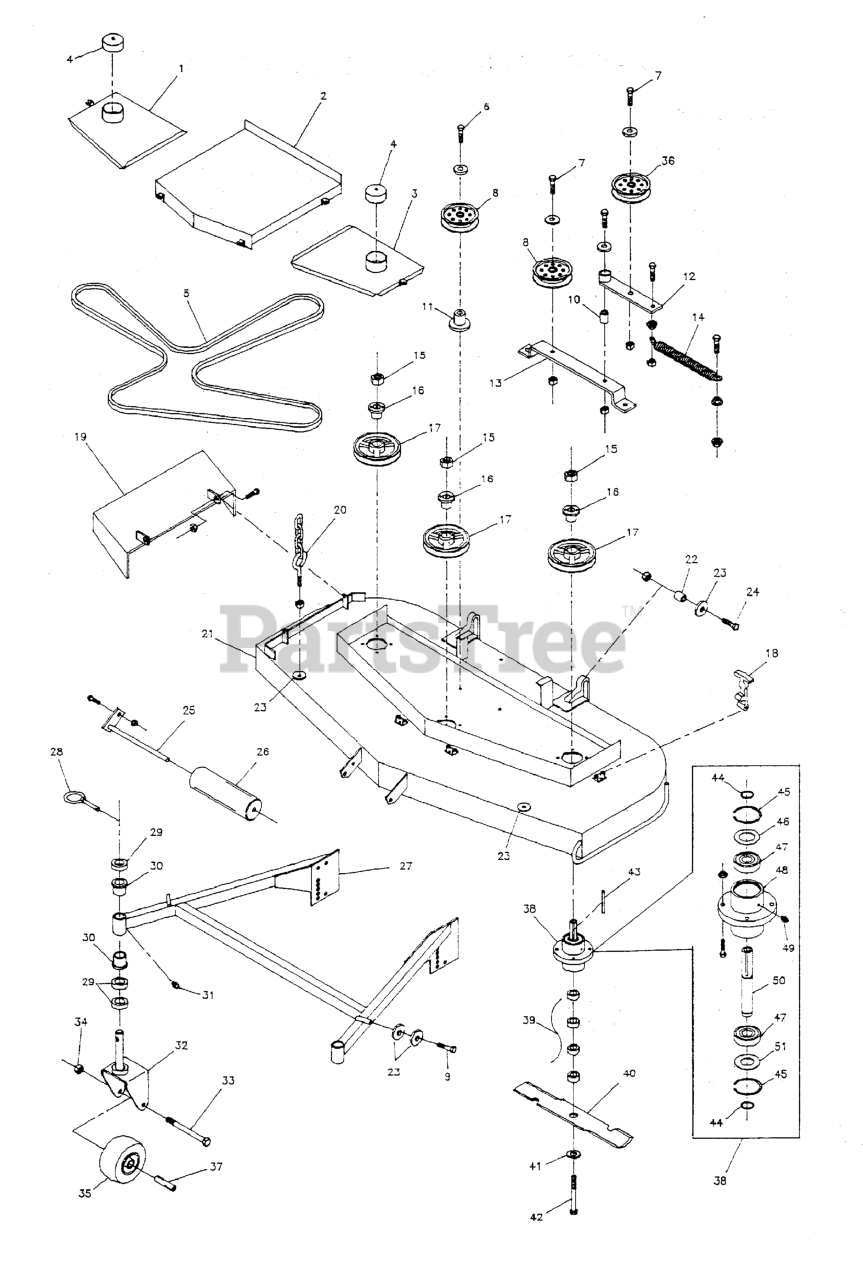

72" Mower Deck - Complete Parts Diagram

  • Title

1

Ferris 5049035B

WELD, 72" GUARD - RH

$

$

Not available

2

Ferris 5044198B

CENTER DECK GUARD

$

$

Not available

3

Ferris 5044180B

SPINDLE COVER-LH

$99.99

$

Usually ships in 2-12 days

0

4

Ferris 5021674

VINYL CAP
(Superseded to 5021674FS)

$7.49

$

Usually ships in 2-12 days

0

5

Ferris 5104067

BELT, 5V, 197.90"EL, LRG ARAMID, WRP, RC
(Superseded to 5104067FS)

$160.99

$

Usually ships in 2-12 days

0

6

Ferris 5025017X36

BOLT, 1/2-13 x 4-1/2
(Superseded to 5025017X36SM)

$6.49

$

In Stock, only 2 left!

0

7

Ferris 5025018X20

BOLT, 1/2-20 X 2-1/2" GD5 CZ
(Superseded to 5025018X20SM)

$6.99

$

In Stock, only 1 left!

0

8

Ferris 5021831

PULLEY, Idler

$101.99

$

Usually ships in 2-12 days

0

9

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, Qty 5

0

10

Ferris 5042134

SPACER, .32 x .75 x 1.06
(Superseded to 5042134SM)

$6.99

$

In Stock, only 3 left!

0

11

Ferris 5044695

SPACER, .52 X 1.00 X 1.81
(Superseded to 5044695FS)

$8.99

$

Usually ships in 2-12 days

0

12

Ferris 5043007B

IDLER ARM, Complete

$70.99

$

Usually ships in 2-12 days

0

13

Ferris 5044174B

IDLER MOUNT

$

$

Not available

14

Ferris 5021103

SPRING, Extension
(Superseded to 5021103SM)

$20.99

$

Usually ships in 2-12 days

0

15

Ferris 5025040

NUT, 5/8-11 Hex
(Superseded to 5025040SM)

$3.49

$

In Stock, Qty 11

0

16

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$27.99

$

In Stock, only 3 left!

0

17

Ferris 5021410

PULLEY, Spindle

$192.99

$

Usually ships in 2-12 days

0

18

Ferris 5020841X1

RUBBER LATCH
(Superseded to 5020841X1SM)

$25.99

$

In Stock, only 2 left!

0

19

Ferris 5044201B

DISCHARGE CHUTE

$

$

Not available

20

Ferris 5044199

DECK HANGER

$

$

Currently unavailable

21

Ferris 5600077

DECK SHELL W/DECALS, P72, SIDE DISCHARGE

Note: (Includes safety decals)

$

$

Currently unavailable

22

Ferris 5044166

DECK MOUNT SPACER

$10.99

$

Usually ships in 2-12 days

0

23

Ferris 5025150

WASHER, 1/2" USS
(Superseded to 5025150SM)

$4.49

$

In Stock, only 1 left!

0

24

Ferris 5025018X20

BOLT, 1/2-20 X 2-1/2" GD5 CZ
(Superseded to 5025018X20SM)

$6.99

$

In Stock, only 1 left!

0

25

Ferris 5041655A

USE 5105755 - WELD, BRKT,ROLLER PIN,BLK
(Superseded to 5105755)

Note: SECURE W/ 5025013X8 & 5101414

$47.99

$

In Stock, only 1 left!

0

26

Ferris 5020785

ROLLER
(Superseded to 5020785SM)

$31.99

$

In Stock, Qty 8

0

27

Ferris 5044257

CASTER MOUNT FRAME, Complete

$

$

Currently unavailable

28

Ferris 5020655

PIN, Lynch
(Superseded to 5020655SM)

$10.99

$

In Stock, only 1 left!

0

29

Ferris 5041476

SPACER, 1.02 x 1.56 x .50
(Superseded to 5041476SM)

$5.99

$

In Stock, Qty 11

0

30

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$10.99

$

In Stock, Qty 20+

0

31

Ferris 5021728

GREASE FITTING
(Superseded to 5021728FS)

$2.99

$

Usually ships in 2-12 days

0

32

Ferris 5041702B

YOKE, Caster

$253.99

$

Usually ships in 2-12 days

0

33

Ferris 5025017X44

BOLT, 1/2-13 x 5-1/2
(Superseded to 5025017X44SM)

$8.49

$

In Stock, only 2 left!

0

34

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.99

$

Usually ships in 2-12 days

0

35

Ferris 5021181

WHEEL & TIRE ASSEMBLY, White, 9 x 3.5 x 4, Complete
(Superseded to 5021181SSM)

$103.99

$

In Stock, only 4 left!

0

36

Ferris 5044443

IDLER PULLEY

$104.99

$

Usually ships in 2-12 days

0

37

Ferris 5041657

AXLE, Caster Wheel
(Superseded to 5041657SM)

$14.99

$

In Stock, only 1 left!

0

38

Ferris 5030301

SPINDLE ASSEMBLY, Complete
(Superseded to 5061033SM)

$285.99

$

Usually ships in 2-12 days

0

39

Ferris 5041477

SPACER, .63 x 1.06 x .23
(Superseded to 5041477SM)

$6.49

$

In Stock, only 3 left!

0

40

Ferris 5021408

MOWER BLADE, 24-1/2"

$

$

Currently unavailable

41

Ferris 5025159

WASHER, 5/8" USS

$

$

Currently unavailable

42

Ferris 5025019X76

BOLT, 5/8-11 x 9-1/2
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0

43

Ferris 5050407X9

KEY, 1/4 SQ. X 2-1/2
(Superseded to 5050407X20SM)

$6.49

$

In Stock, only 2 left!

0

44

Ferris 5020864

SNAP RING, External

$3.99

$

Usually ships in 2-12 days

0

45

Ferris 5020866

SNAP RING, Internal
(Superseded to 5020866SM)

$5.99

$

In Stock, only 2 left!

0

46

Ferris 5041653

SPINDLE WASHER, Top

$10.99

$

Usually ships in 2-12 days

0

47

Ferris 5020828

BEARING
(Superseded to 5020828SM)

$37.99

$

In Stock, only 2 left!

0

48

Ferris 5030293

SPINDLE HOUSING

$

$

Not available

49

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$4.49

$

Usually ships in 2-12 days

0

50

Ferris 5041480

SPINDLE SHAFT
(Superseded to 5041480SM)

$

$

Not available

51

Ferris 5041672

SPINDLE WASHER, Bottom

$15.99

$

Usually ships in 2-12 days

0
