P72 (5900228) - Ferris 72" Mower Deck (SN: 1022 & Above) 72" Mower Deck - Pulleys, Belt & Idler Arm Parts Diagram

72" Mower Deck

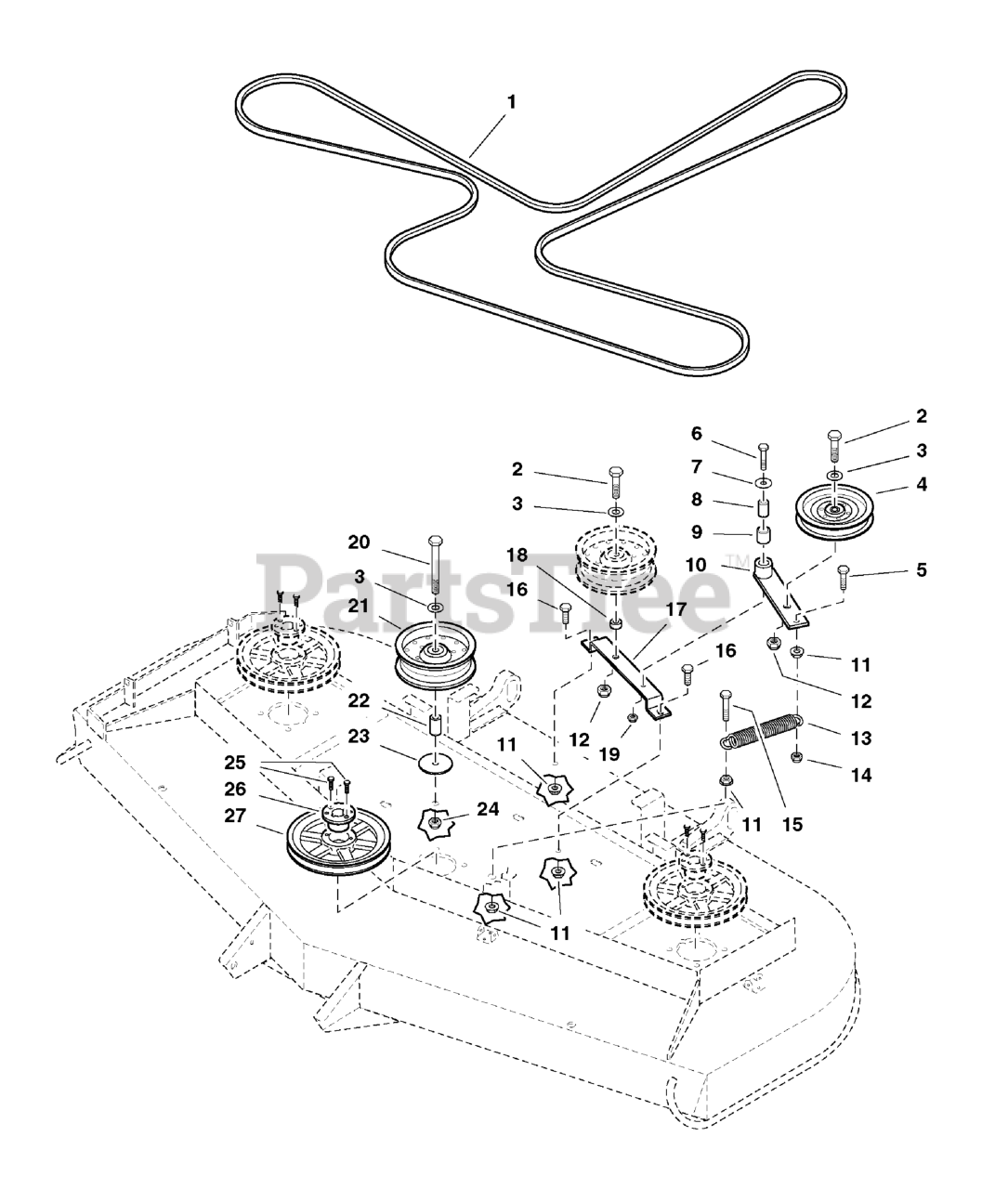

72" Mower Deck - Pulleys, Belt & Idler Arm Parts Diagram

  • Title

1

Ferris 5104067

BELT, 5V, 197.90"EL, LRG ARAMID, WRP, RC
(Superseded to 5104067FS)

$160.99

$

In Stock, only 2 left!

0

2

Ferris 5025018X20

BOLT, 1/2-20 X 2-1/2" GD5 CZ
(Superseded to 5025018X20SM)

$6.99

$

In Stock, only 1 left!

0

3

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, only 4 left!

0

4

Ferris 5044443

IDLER PULLEY

$104.99

$

Usually ships in 2-12 days

0

5

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5025011X14

BOLT, 5/16-18 x 1-3/4
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

8

Ferris 5042134

SPACER, .32 x .75 x 1.06
(Superseded to 5042134SM)

$6.49

$

Usually ships in 2-12 days

0

9

Ferris 5020876B

BUSHING, Brass
(Superseded to 5020876BSM)

$11.99

$

In Stock, only 1 left!

0

10

Ferris 5043007B

IDLER ARM, Complete

Note: (Includes Ref No. 9)

$70.99

$

Usually ships in 2-12 days

0

11

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

Usually ships in 2-12 days

0

13

Ferris 5021826

SPRING, Extension

$54.99

$

Usually ships in 2-12 days

0

14

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, only 4 left!

0

15

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 3 left!

0

16

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

Usually ships in 2-12 days

0

17

Ferris 5044174B

IDLER MOUNT

$60.99

$

Usually ships in 2-12 days

0

18

Ferris 5044696

SPACER, .52 x 1.00 x .56

$

$

Currently unavailable

19

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

20

Ferris 5025017X36

BOLT, 1/2-13 x 4-1/2
(Superseded to 5025017X36SM)

$6.49

$

Usually ships in 2-12 days

0

21

Ferris 5021831

PULLEY, Idler

$101.99

$

Usually ships in 2-12 days

0

22

Ferris 5044695

SPACER, .52 X 1.00 X 1.81
(Superseded to 5044695FS)

$8.49

$

Usually ships in 2-12 days

0

23

Ferris 5043652

WASHER, Chain
(Superseded to 5043652FS)

$6.99

$

Usually ships in 2-12 days

0

24

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

25

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 4 left!

0

26

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

Usually ships in 2-12 days

0

27

Ferris 5021410

PULLEY, Spindle

$192.99

$

Usually ships in 2-12 days

0
