P72 (5900228) - Ferris 72" Mower Deck (SN: 1022 & Above) 72" Mower Deck - Rollers & Casters Parts Diagram

72" Mower Deck

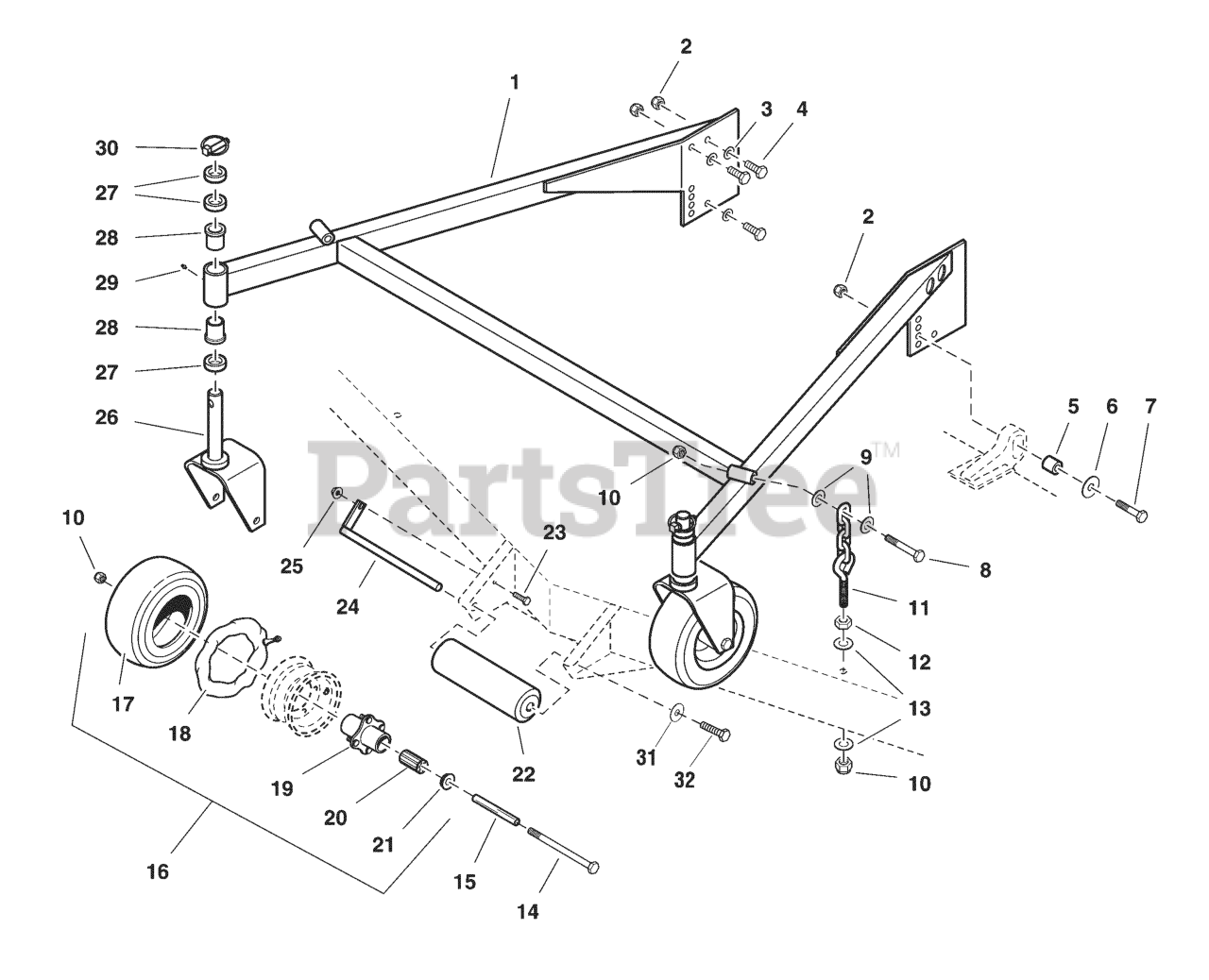

72" Mower Deck - Rollers & Casters Parts Diagram

  • Title

1

Ferris 5044257

CASTER MOUNT FRAME, Complete

Note: (Includes Ref. No 28 & 29)

$

$

Currently unavailable

2

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

Usually ships in 2-12 days

0

3

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, only 4 left!

0

4

Ferris 5025018X10

BOLT, 1/2-20 X 1-1/4" GD5 CZ
(Superseded to 5025018X10SM)

$2.99

$

Usually ships in 2-12 days

0

5

Ferris 5044166

DECK MOUNT SPACER

$10.99

$

Usually ships in 2-12 days

0

6

Ferris 5044167

WASHER

$2.49

$

Usually ships in 2-12 days

0

7

Ferris 5025018X20

BOLT, 1/2-20 X 2-1/2" GD5 CZ
(Superseded to 5025018X20SM)

$6.99

$

In Stock, only 1 left!

0

8

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 1 left!

0

9

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, only 4 left!

0

10

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

11

Ferris 5044199

DECK HANGER

$

$

Currently unavailable

12

Ferris 5025038

NUT, 1/2-13 Hex
(Superseded to 703340)

$7.99

$

In Stock, only 2 left!

0

13

Ferris 5025150

WASHER, 1/2" USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 3 left!

0

14

Ferris 5025017X44

BOLT, 1/2-13 x 5-1/2
(Superseded to 5025017X44SM)

$7.99

$

In Stock, only 1 left!

0

15

Ferris 5041657

AXLE, Caster Wheel
(Superseded to 5041657SM)

$13.99

$

In Stock, only 2 left!

0

16

Ferris 5021181S

TIRE ASSM, 9 X 3.5 X 4, SILVER
(Superseded to 5021181SSM)

Note: (Includes Ref No. 17 - 21)

$100.99

$

In Stock, only 4 left!

0

16

Ferris 5021181

WHEEL & TIRE ASSEMBLY, White, 9 x 3.5 x 4, Complete
(Superseded to 5021181SSM)

Note: (Includes Ref No. 17 - 21)

$100.99

$

In Stock, only 4 left!

0

17

Ferris 5021181X1

TIRE, Front, 9 x 3.5 x 4

$

$

Currently unavailable

18

Ferris 5021181X2

TUBE

$

$

Currently unavailable

19

Ferris 5021181SX3

HUB & BEARING ASSEMBLY, Complete, Silver
(Superseded to 5021181SX3SM)

Note: (Includes Ref No. 20 & 21)

$59.99

$

Usually ships in 2-12 days

0

19

Ferris 5021181X3

HUB & BEARING ASSEMBLY, Complete, White

Note: (Includes Ref No. 20 & 21)

$47.99

$

Usually ships in 2-12 days

0

20

Ferris 5021182

BEARING, ROLLER 3/4" ID X 3.25" (ONE PER TIRE)(SV)

Note: (1 per tire)

$

$

Currently unavailable

21

Ferris 5021043

RETAINER, Bearing

Note: (2 per tire)

$6.99

$

Usually ships in 2-12 days

0

22

Ferris 5020784

Mower Seat

$

$

Currently unavailable

23

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

24

Ferris 5041655A

USE 5105755 - WELD, BRKT,ROLLER PIN,BLK
(Superseded to 5105755)

$46.99

$

In Stock, only 1 left!

0

25

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

26

Ferris 5041702B

YOKE, Caster

$253.99

$

Usually ships in 2-12 days

0

27

Ferris 5041476

SPACER, 1.02 x 1.56 x .50
(Superseded to 5041476SM)

$5.49

$

In Stock, only 2 left!

0

28

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 11

0

29

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

30

Ferris 5020655

PIN, Lynch
(Superseded to 5020655SM)

$10.99

$

In Stock, only 3 left!

0

31

Ferris 5100548

WASHER, .390 X 1.50 X .109 YZ
(Superseded to 5100548SM)

$4.49

$

In Stock, only 1 left!

0

32

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

Usually ships in 2-12 days

0
